Formax Autoseal FD 1506 Pressure Sealer
Formax FD 1506 Autoseal Pressure Sealer Formax
Formax FD 1506 Autoseal Pressure Sealer Formax
Formax Autoseal FD 1506 Pressure Sealer
Formax FD 1506 Autoseal Pressure Sealer Formax
Formax FD 1506 Autoseal Pressure Sealer Formax



Formax Autoseal FD 1506 Pressure Sealer

  • SKU: BESFD1506
  • Hopper Capacity: 200 sheets @ 20 lb
  • Fixed Speed: 100 sheets/min
  • GTIN/UPC: 9358476085818
  • Mfr. Part No.: FD1506
$5,266.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Formax FD 1506 Pressure Sealer

  • Hopper Capacity: Up to 200 Sheets 20#
  • Fixed Speed: Up to 100 sheets per minute - based on 11” “Z” fold
  • Paper Size: Up to 8.5’’ W x 14” L
  • Monthly Duty Cycle: Up to 35,000/month
  • Power: FD Model: 120 Volts AC 50/60Hz / FE Model: 220 Volts AC 50/60Hz

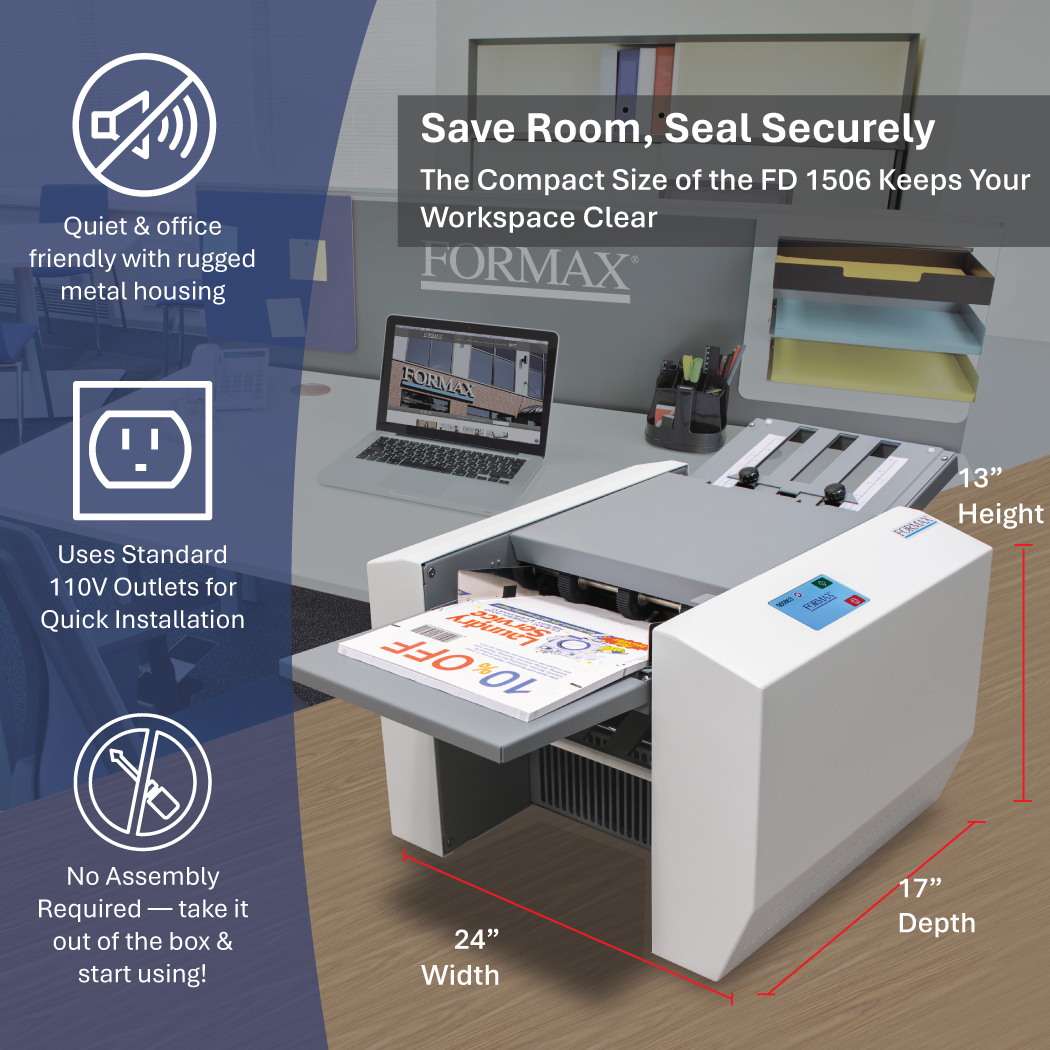

  • Dimensions: 24” L x 17” W x 13” H
  • Weight: 82 lbs.
  • Document Sequence: Standard sequence is A-to-Z input, Z-to-A output, and optional FD 1506-35 reverse conveyor available for A-to-Z output
  • Certifications: UL, CE and CUL Approved

Features of the Formax FD 1506 Pressure Sealer

  • The sheet capacity is up to 200 forms.
  • The fold types are Z, C, Uneven Z, Half, and Custom.
  • Pre-marked and adjustable fold plates makes changing fold type or form size quick and easy.
  • Heavy-duty steel construction offers the dependability and power expected of a larger unit in a smaller package.
  • Drop-in feed system produces dependable feeding of forms with no paper fanning required.

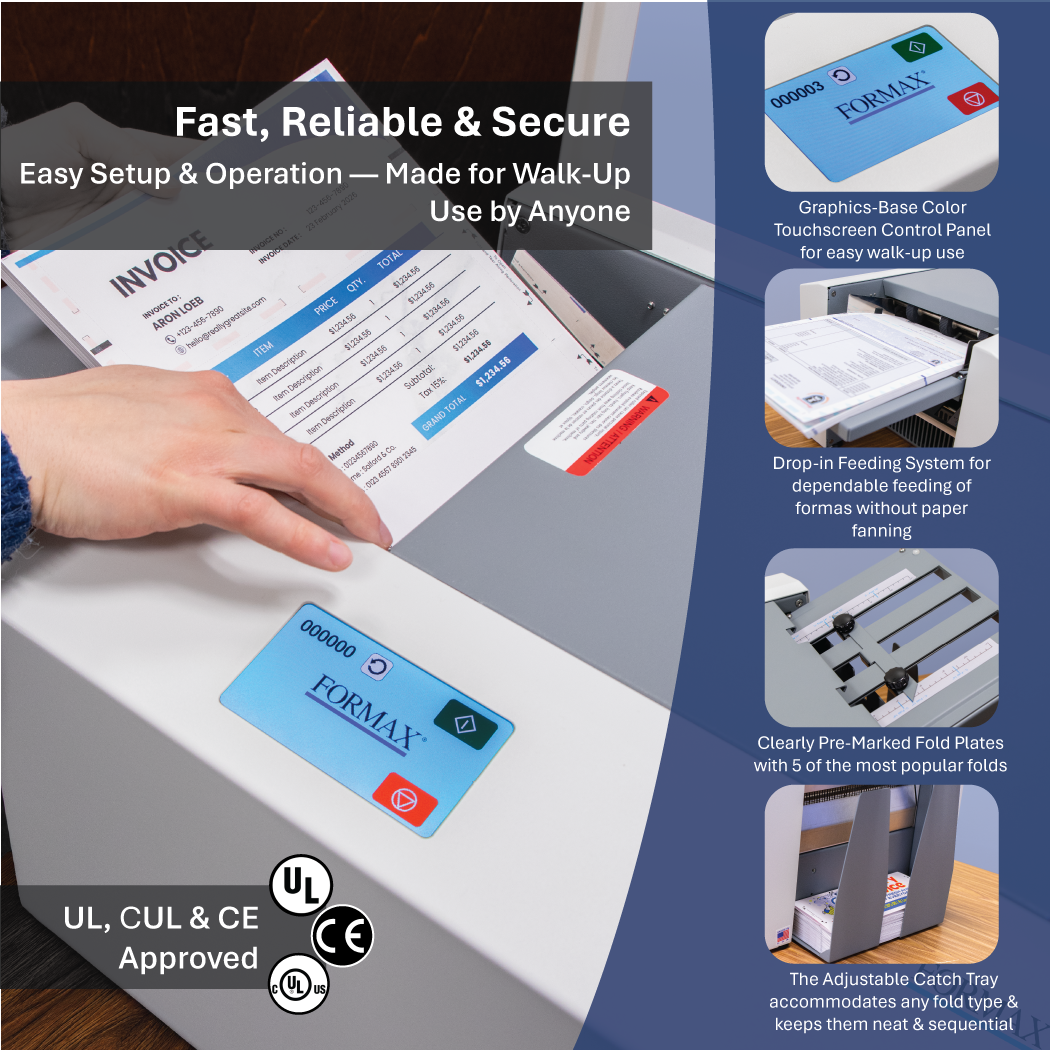

  • Color touchscreen control panel is graphics-based and designed for easy, walk-up use.
  • 6-digit resettable counter provides maximum audit control.
  • Made in USA.

Video of the Formax FD 1506 Pressure Sealer


Description of the Formax FD 1506 Pressure Sealer

The FD 1506 AutoSeal is an ideal mid-volume solution for processing one-piece pressure-sensitive mailers. It features an innovative graphics-based color touchscreen control panel, one of the first in the industry. The touchscreen uses internationally-recognized symbols in place of text, making it easy for anyone to use.

With a speed of up to 100 forms per minute, the FD 1506 enables operators to complete daily jobs in no time. Fold plates are clearly marked and easy to adjust, making the FD 1506 a breeze to set up, right out of the box. With the capacity to process 14" forms, it has the versatility to fold and seal virtually any mid-volume application to meet your needs. Fold plates are marked for four standard folds - Z, C, Uneven Z, and Half folds - and can be easily reset for custom folds including Eccentric Z and C-fold mailers.

Pressure seal forms are ideal for checks, invoices, marketing pieces, school reports and any other mail piece that can be printed on one form. Simply load the forms, set the fold type, and press the start icon. In minutes, you'll have folded and sealed pieces, ready for the mail, without the hassle and expense of envelopes.


Options for the Formax FD 1506 Pressure Sealer

  • 18" Conveyor with Photo Eye
  • Locking Cabinet
  • 402 Series Jogger
  • Reverse Stacking Conveyor

Product Downloads

Please select your preferred download file from below.

Hopper Capacity Up to 200 Sheets 20#
Fixed Speed Up to 100 sheets per minute - based on 11” “Z” fold
Paper Size* Up to 8.5’’ W x 14” L
Monthly Duty Cycle Up to 35,000/month
Power FD Model: 120 Volts AC 50/60Hz
FE Model: 220 Volts AC 50/60Hz
Dimensions 24” L x 17” W x 13” H
Weight 81 lbs.
Document Sequence Standard sequence is A-to-Z input, Z-to-A output
Certifications UL, CE and CUL Approved
Made in the USA

QUESTIONS & ANSWERS

Ask a Question

  • Does this comes with Warranty, and if it does for how long. Do you offer extended warranty as well. Any Extra cost for Shipping ? Is the price for Formax Autoseal FD 1506 Pressure Sealer, what does it include besides the sealer.

    My sales team will send you a price quote today. To answer your question, this machine has a 90 day replacement warranty. We offer service contracts which cover parts/labor/travel for any malfunctions on an annual basis. The shipping is free when delivered to a loading dock or a forklift, but if neither of those are available there is a small fee for the carrier to bring a smaller truck equipped with an elevator on the back to lower the package to the ground for you. The FD1506 only includes the device itself, although there are some options like on-site setup/install and an exit conveyor.
