Triumph 5255 Automatic Paper Cutter

Triumph 5255 Automatic Paper Cutter

Features of the 5255 Triumph Cutter

  • Cutting width: 20 3/8 inches
  • Cutting height: 3 inches
  • Working height: 3 inches
  • Narrow cut: 1 inch
  • Table depth: 20 3/8 inches
  • Stores 99 programs with up to 99 steps each
  • Solingen steel knife
  • Automatic blade and spindle clamp drive
  • Adjustable blade guides and steel blade carrier
  • Blade changing device guarantees risk-free blade replacement
  • Spindle-guided back gauge

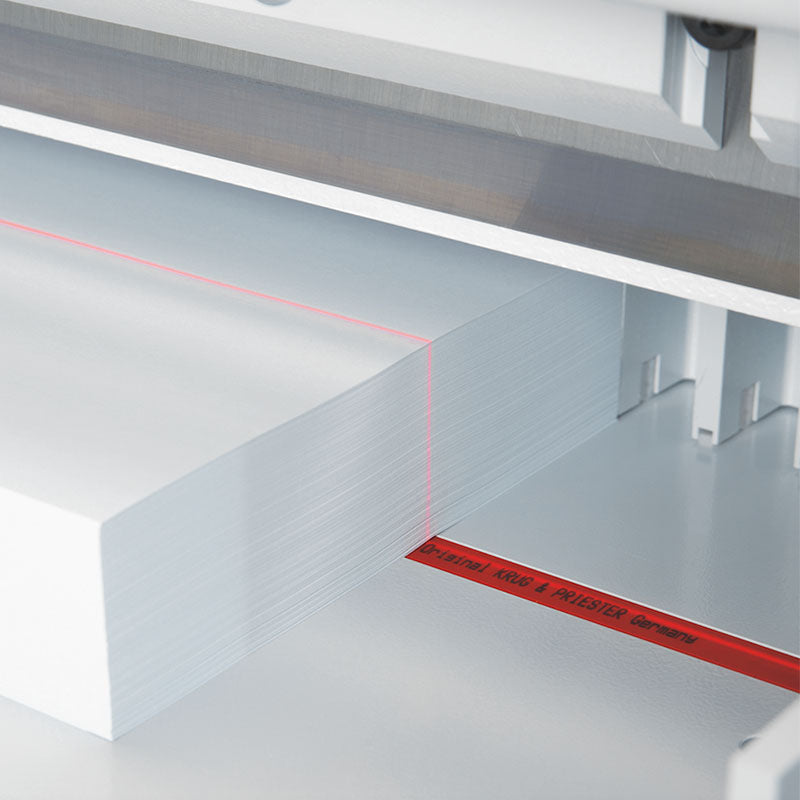

  • Lighted cutting line
  • Service tool holder keeps necessary tools in place.
  • Comprehensive "SCS" safety package
  • All-metal construction
  • Quality assured: steel blade made in Germany
  • Transparent safety cover on rear table

The Triumph 5255 paper cutter is a high performance and heavy-duty, tabletop machine that is perfect for office and production environments.

Regular price
Sale price
Unit price

SKU: MBM5255-0490
ISBN: 096224642102

Have questions?
Call us at (800) 243-9226

Secured & Safe Checkout :

trust badge

Video of the Triumph 5255 Paper Cutter

Description of the Ideal Triumph 5255 Paper Cutter

For flexibility, precision, and user safety, look to the Triumph 5255 digital paper cutter. As a step up from the 4850 EP, the Triumph 5255 fully automatic programmable paper cutter achieves a maximum cutting length of approximately 20 ½" and maximum cutting height of 3", making it ideal for larger format pieces. Start by loading your paper stack onto the cutting table. The optical cutting line indicates exactly where the cut will be performed for a precise cut every time. The standard keypad control module has been upgraded to a modern touchpad. Capable of storing up to 99 programs with up to 99 steps each into memory, this versatile touch pad also offers pre-programmed DIN sizes and automatic memory for repeat cuts. The multilingual electronic control module operates the power back gauge for accurate positioning of paper. For manual re-positioning, this Triumph cutter features an electronic hand wheel with infinitely variable speed control. The automatic "set" function provides reference measurement via the start button. A self-diagnostic system indicates errors on the digital display.

Equipped with the new, patented EASY-CUT blade activating bars, the Triumph 5255 introduces a new level of true two-hand operation. The blade and clamp are activated independently through these two-step blade activating bars. Separate trigger points allow the clamp to come down before the blade slices the paper stack. This two-hand operation guarantees maximum operator safety.

Like all Triumph paper cutters, the Triumph 5255 features the comprehensive Safety Cutting System (SCS). The hinged safety guard located on the front table easily swings out of the way. This transparent safety shield locks during the cutting process. Every guillotine cutter also features a clear safety cover on the rear table. Blade or stick changes can be accomplished outside of the machine, without removing any of the machine's casings. The cutting stick is simple to rotate or remove from the side of the machine. An easy-to-use blade-changing device covers the extremely sharp cutting edge of the German made, steel blade. This blade-changing device can be stored in the convenient and practical hook-in tool holder located on the back table. Other safety features include the patented IDEAL safety drive, main switch, and safety lock with key. The solid all-metal constructed Triumph 5255 is equipped with a stand, convenient storage shelf, and stacking angle.

Triumph 5255 Features

Transparent Safety Guard
A cut can only be executed if the hinged, electronically controlled safety guard is in the closed position.

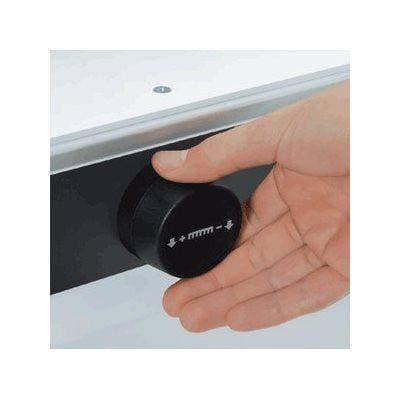

Electronic Hand Wheel
The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.

Easy Cut Blade Activation Bars
Patented easy cut blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

Easy-To-Use Touchpad
The programmable control module is equipped with a multilingual touchpad for easy operation. 99 programs with 99 steps in each can be stored in memory.

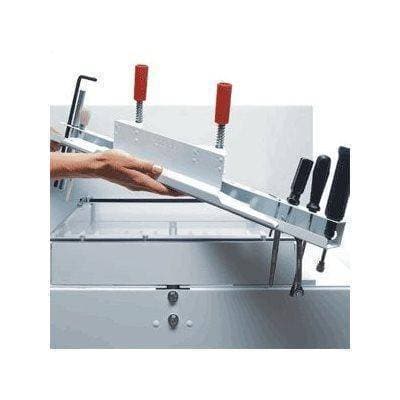

Tool Holder
Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.

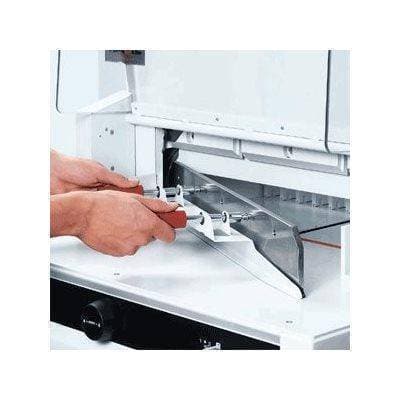

Safe Blade Changes
Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of the blade.

Manufacturer Name MBM
Max Cutting Width 20 3/8"
Cutting Height 3"
Cutting Mode Automatic/Electric
Clamp Type Automatic
Programmable Yes
Horsepower 2 HP
Optical Cutting Line Yes
Blade Construction Solingen steel
Back Gauge Adjustment Manual
Safety Mechanism Safety shields; disc brake
Readout Digital
Model # 5255
Manufacturer Part Number 5255
Weight 555 lbs
Height 51"
Width 33 7/8"
Depth 44"
Voltage 115 Volts; other voltages available
Shipping Weight 647.0000
Shipping Width 33.875
Shipping Length 44
Shipping Height 51
