Triumph 4815 Semi Automatic Paper Cutter
Features of the 4815 Triumph Cutter
- Cutting width: 18 5/8 inches
- Cutting height: 3 inches
- Narrow cut: 1 inch
- Table depth: 18 inches
- Solingen steel knife
- Semi-automatic blade and manual spindle clamp drive
- Adjustable blade guides and steel blade carrier
- Blade changing device guarantees risk-free blade replacement
- Spindle-guided back gauge
- Lighted cutting line
- Service tool holder keeps necessary tools in place
- Comprehensive "SCS" safety package
- All-metal construction
- Quality assured: made in Germany
The Triumph 4815 paper cutter is a high performance and heavy-duty, tabletop machine that is perfect for office and production environments.
Video of the 4815 Triumph Semi Automatic Paper Cutter

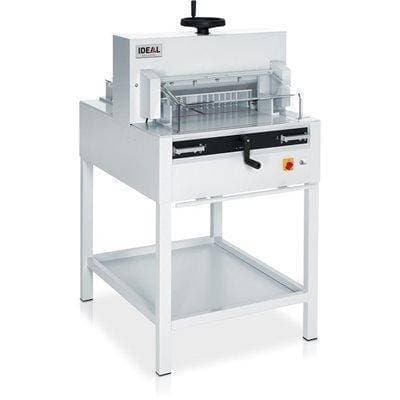

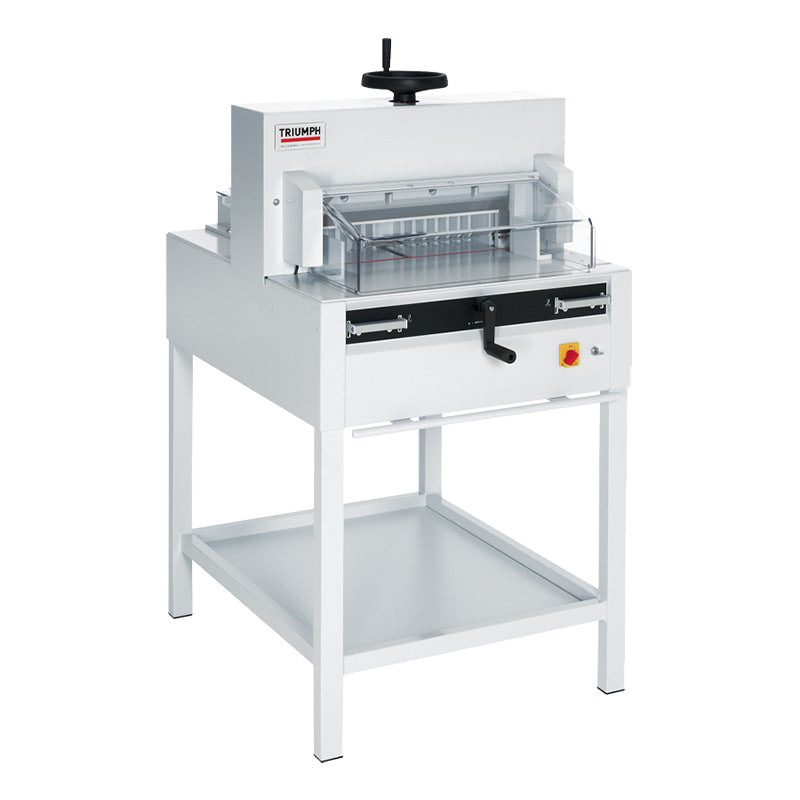

Description of the Ideal Triumph 4815 Semi Automatic Paper Cutter
The Triumph 4815 semi-automatic paper cutter accepts formats 18 5/8" in length and a full 3" in height. This low volume paper cutter offers the patented Easy-Cut activating bars, which provides true two-hand operation. A cut can be executed conveniently, as separate trigger points activate the blade and clamp independently. Operators can easily set the back gauge via the hand crank in combination with the digital measurement readout on the machine table. The precision back gauge spindle guarantees exact cuts. Bright and durable LED's display an optical cutting line for enhanced accuracy.
The Easy-Cut system is not the only safety feature this cutter offers. In fact, the Triumph 4815 offers the Safety Cutting System (SCS), which includes a hinged, electronically controlled safety guard on the front table, safety cover on the rear table, main switch and safety lock with key, and automatic blade return from every position. Blade depth can be adjusted from the outside of the machine, and both the blade and cutting sticks can be easily changed from the front of the machine without removing covers. The blade, which is made of high quality steel, is incredibly dangerous and must be handled with caution. The Triumph 4815 comes with a convenient blade changing device, which covers the cutting edge for user protection.
The solid all-metal construction means that this Triumph cutter is built for years of operation. The Triumph 4815 comes complete with a stand and storage shelf, perfect for keeping reams of paper. A practical tool holder placed located on the back table keeps all necessary tools for blade change and service jobs close by.
Triumph 4815 Paper Cutter Features
A cut can only be executed if the hinged, electronically controlled safety guard is in the closed position.

The calibrated hand crank is used to set the spindle-guided back gauge. The LED display ensures precise positioning.

Patented easy cut blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

 Â
A bright, LED optical cutting line indicates the exact position of cut and helps to perfectly position trim marks. Can be set to inches or centimeters.

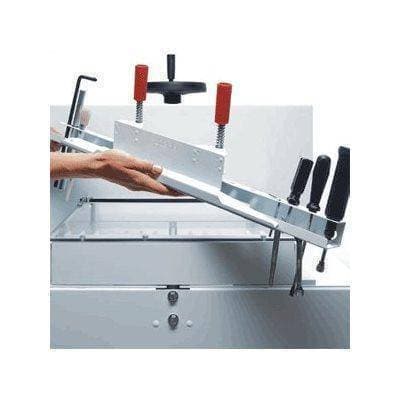

Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.

Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of the blade.

Manufacturer Name | MBM |
---|---|
Max Cutting Width | 18 5/8" |
Cutting Height | 3" |
Cutting Mode | Semi-automatic |
Clamp Type | Manual |
Horsepower | 1.5 HP |
Optical Cutting Line | Yes |
Blade Construction | Solingen steel |
Back Gauge Adjustment | Manual |
Safety Mechanism | Safety shields; disc brake |
Readout | Digital |
Model # | 4815 |
Weight | 468 lbs |
Height | 55.5" |
Width | 30" |
Depth | 41.5" |
Voltage | 115 Volts; other voltages available |
Shipping Weight | 556 lbs. |
Shipping Width | 30" |
Shipping Length | 41.5" |
Shipping Height | 55.5" |
