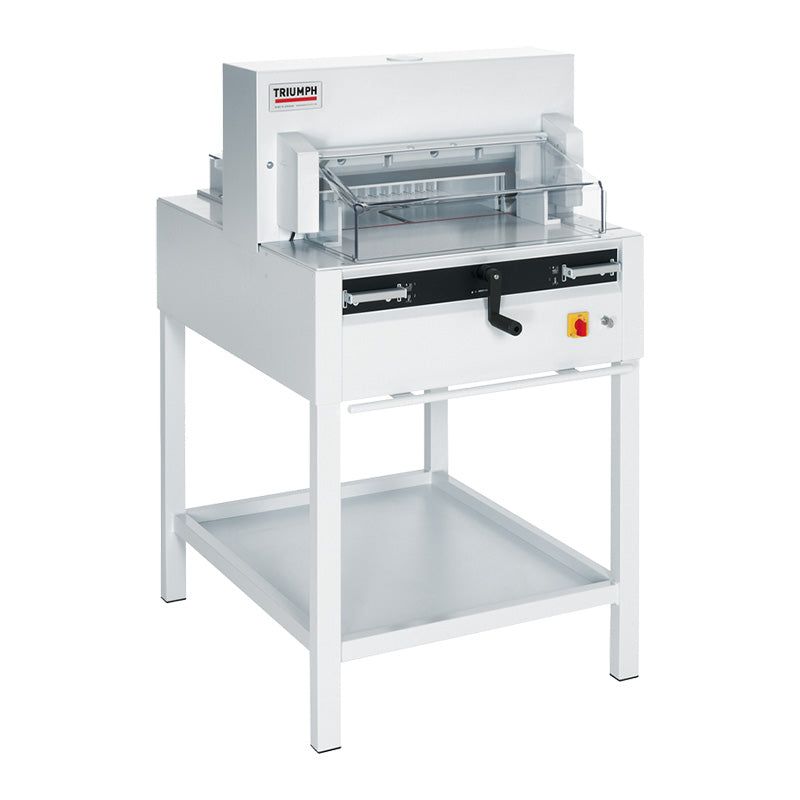

Triumph 4850 Automatic Paper Cutter
Features of the 4850 Triumph Cutter
- Cutting width: 18 5/8 inches
- Cutting height: 3 inches
- Working height: 3 inches
- Narrow cut: 1 inch
- Table depth: 18 inches
- Solingen steel knife
- Automatic blade and spindle clamp drive
- Adjustable blade guides and steel blade carrier
- Blade changing device guarantees risk-free blade replacement
- Spindle-guided back gauge
- Lighted cutting line
- Service tool holder keeps necessary tools in place.
- Comprehensive "SCS" safety package
- All-metal construction
- Quality assured: steel blade made in Germany
- Transparent safety cover on rear table
- Stand and storage shelf included
The Triumph 4850 paper cutter is a high performance and heavy-duty, tabletop machine that is perfect for office and production environments.
- Regular price
-
$10,889.97 - Sale price
- $10,889.00
- Unit price
- per
Secured & Safe Checkout :
Video of the Triumph 4850 Paper Cutter
Triumph 4850 Paper Cutter Product Description
Easy to operate, the Triumph 4850 offers an impressive cutting capacity, with a cutting length of 18 5/8" and cutting height of a full 3". Users can position the backgauge with the convenient hand crank, and the precision backgauge spindle guarantees exact cuts. After the backgauge is set and you are ready to make your cut, simply press the two-step activating bars. Both the clamp and blade are controlled by the "Easy Cut" activating bars. Separate trigger points on these bars prompt the blade and clamp independently. The Easy Cut system ensures true two-hand operation for heightened user safety. An optical cutting line with bright and durable LEDs dictate exactly where the cut will be made.The Safety Cutting System (SCS) provides additional safety features. The hinged safety guard located on the front table is electronically controlled and safety cover on the rear table protect the user against harmful cutting. Cuts can only be executed when this hinged safety shield is closed and secured. Other features include main switch and safety lock with key, automatic blade and clamp return from every position, and disc brake for instant blade stop. The blade and cutting sticks can be changed or rotated from the front of the machine without removing any covers. The German made, high quality steel blade is safe and easy to remove thanks to the blade changing device. This solid all-metal constructed Triumph 4850 comes complete with a stand and storage shelf. The handy tool holder fits on the back table and holds any tools needed for the machine.
Triumph 4850 Paper Cutter Features
A cut can only be executed if the hinged, electronically controlled safety guard is in the closed position.

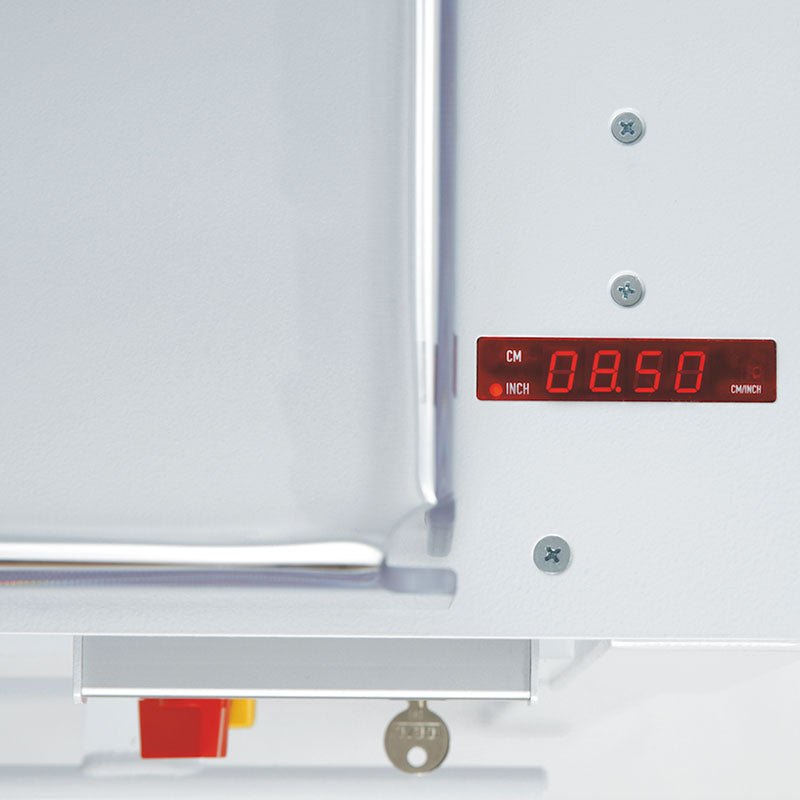

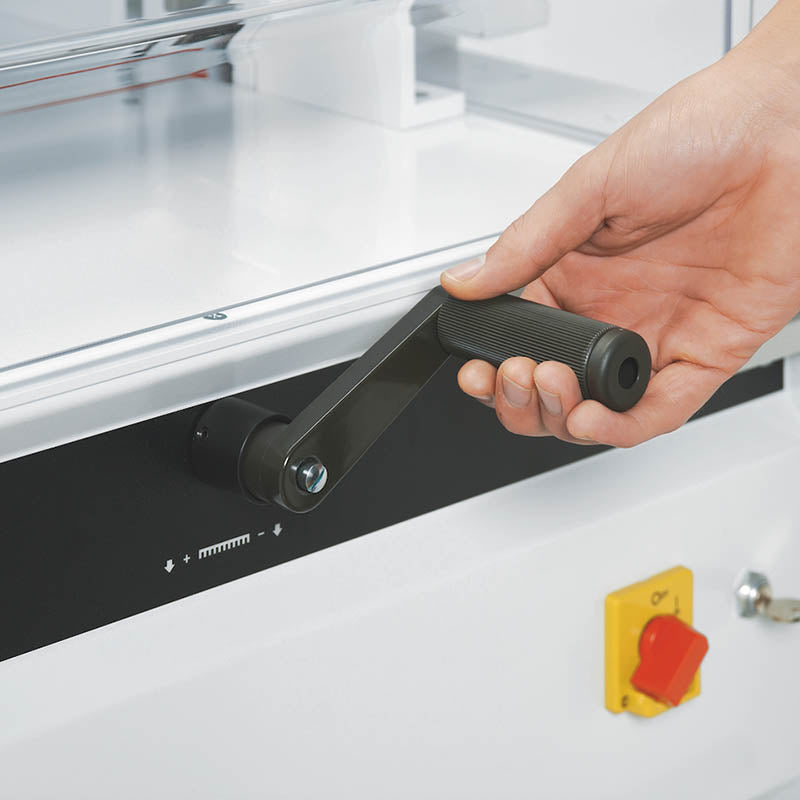

The calibrated hand crank is used to set the spindle-guided back gauge. The LED display ensures precise positioning.
Patented easy cut blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

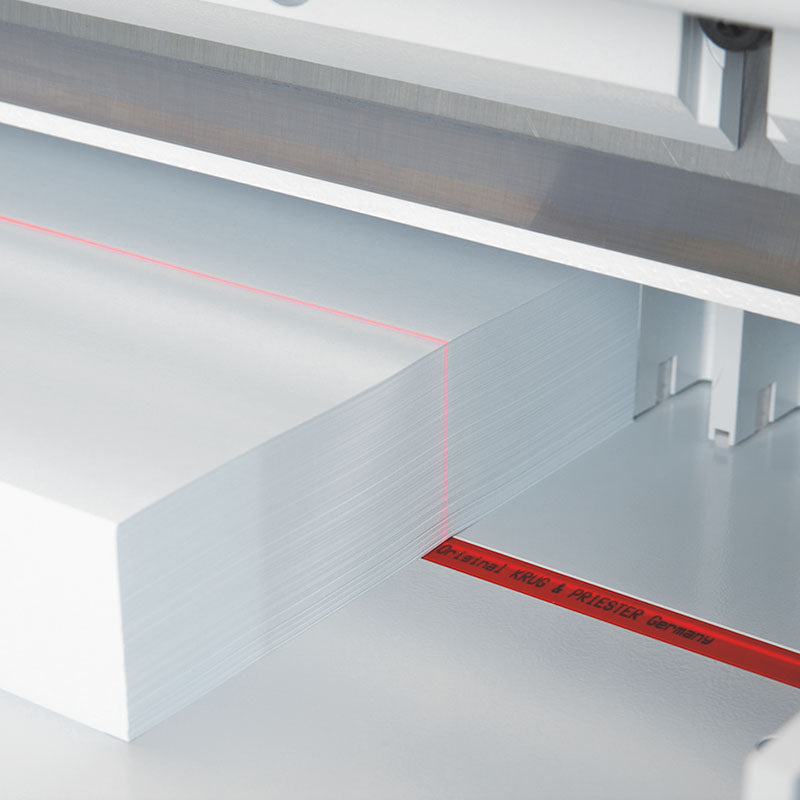

A bright, LED optical cutting line indicates the exact position of cut and helps to perfectly position trim marks.
![](https://cdn.shopify.com/s/files/1/0173/4452/8448/files/optical_cutting_line.jpg?v=1553022085")
Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.

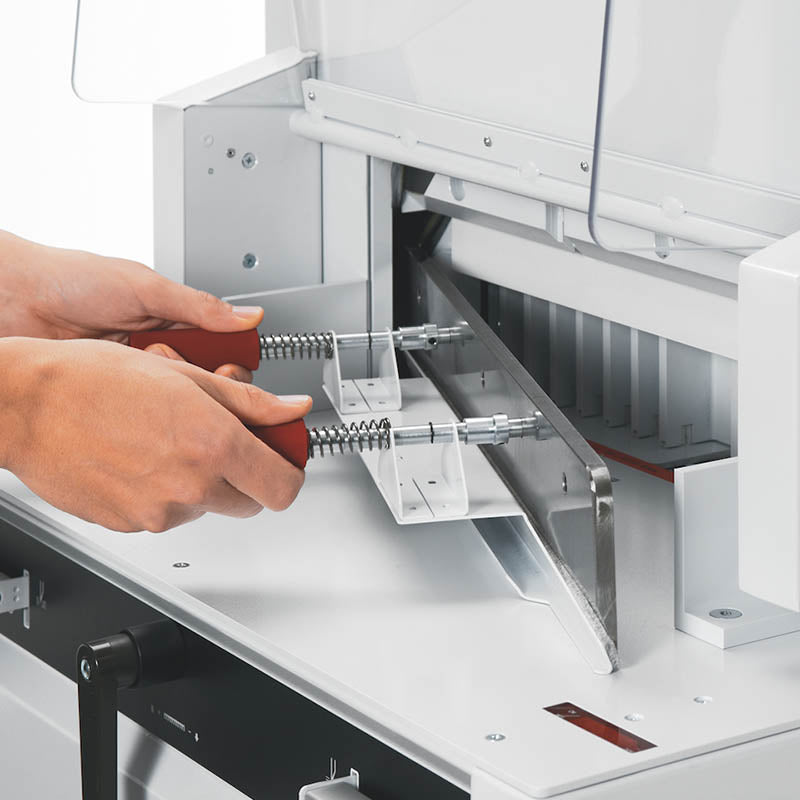

Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of the blade.
| Manufacturer Name | MBM |
|---|---|
| Max Cutting Width | 18 5/8" |
| Cutting Height | 3" |
| Cutting Mode | Automatic/Electric |
| Clamp Type | Automatic |
| Horsepower | 2 |
| Optical Cutting Line | Yes |
| Blade Construction | Solingen steel |
| Back Gauge Adjustment | Manual |
| Safety Mechanism | Safety shields; disc brake |
| Readout | Digital |
| Model # | 4850 |
| Manufacturer Part Number | 4850 |
| Weight | 556 lbs |
| Height | 51" |
| Width | 30" |
| Depth | 41.5" |
| Voltage | 115 Volts; other voltages available |
| Shipping Weight | 556.0000 |
| Shipping Width | 30 |
| Shipping Length | 41.5 |
| Shipping Height | 51 |
