Formax FD 38Xi Automatic Paper Folder
- SKU: BESFD38XI
- Max Paper Weight: 161 gsm
- Max Paper Size: 12.25" x 18"
- Adjustment: Automatic
- Feed Type: Friction
- Fold Types: Letter, Half, Z-fold, Double Parallel, Gate, Engineer
- GTIN/UPC: 096224655195
- Mfr. Part No.: FD 38Xi
- Sale price
- Sale price
- $5,306.00
- Unit price
- per
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Basic Specs of the Formax FD 38Xi Automatic Paper Folder
- Max Paper Weight: 161 gsm / 40 lb. bond / 83 lb. index
- Max Paper Size: 12.25 x 18 inches
- Min Paper Size: 3.5 x 5 inches
- Pre-Set Fold Types: C, V, Z, Gate, Fold Out and Double Parallel
- Paper Type: Non-glossy paper only; Please call us for coated stock

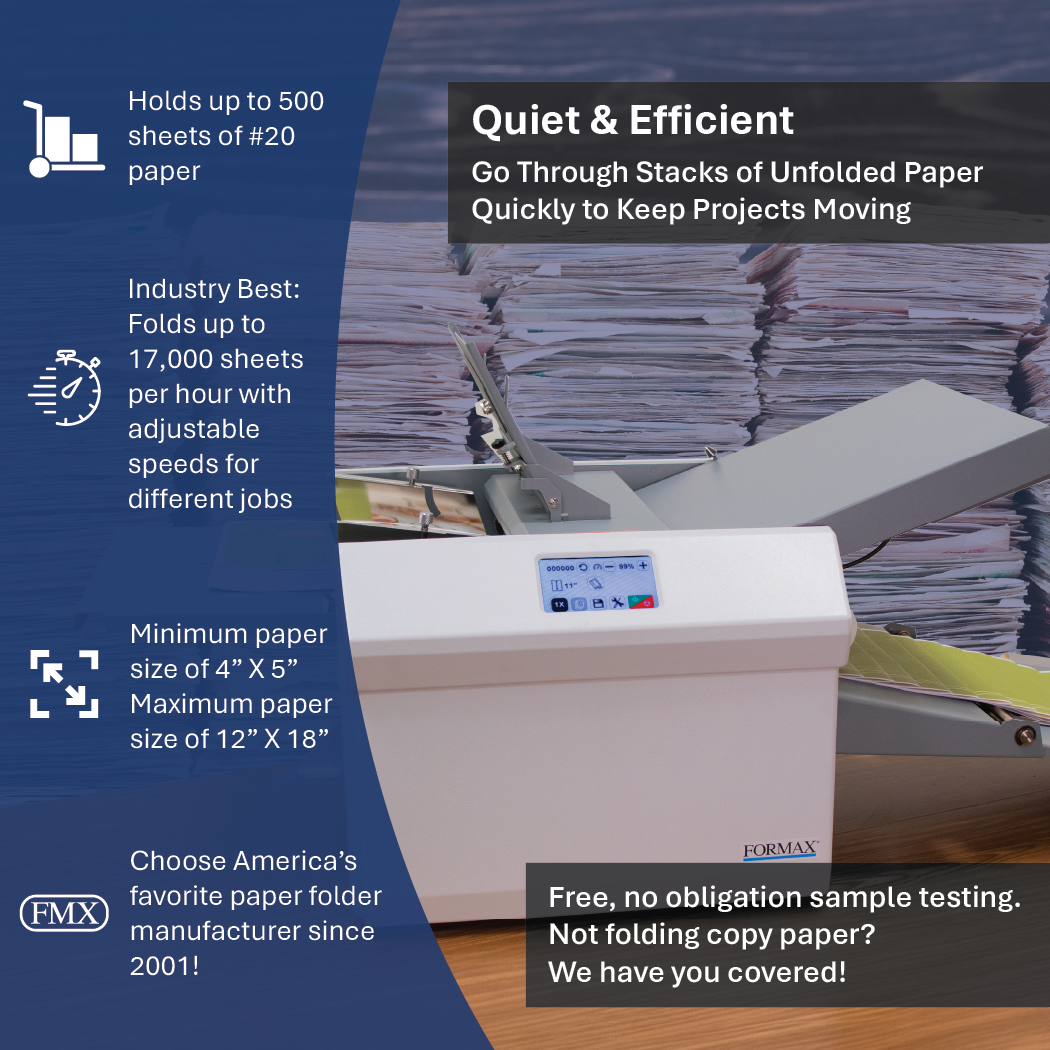

- Speed: Up to 17,000 sheets/hour
- Hopper Capacity: Up to 500 sheets 20 lb. (75 gsm)
Features of the Formax FD 38Xi Automatic Paper Folder
- Large jobs are processed quickly at speeds of up to 17,000 pieces per hour.

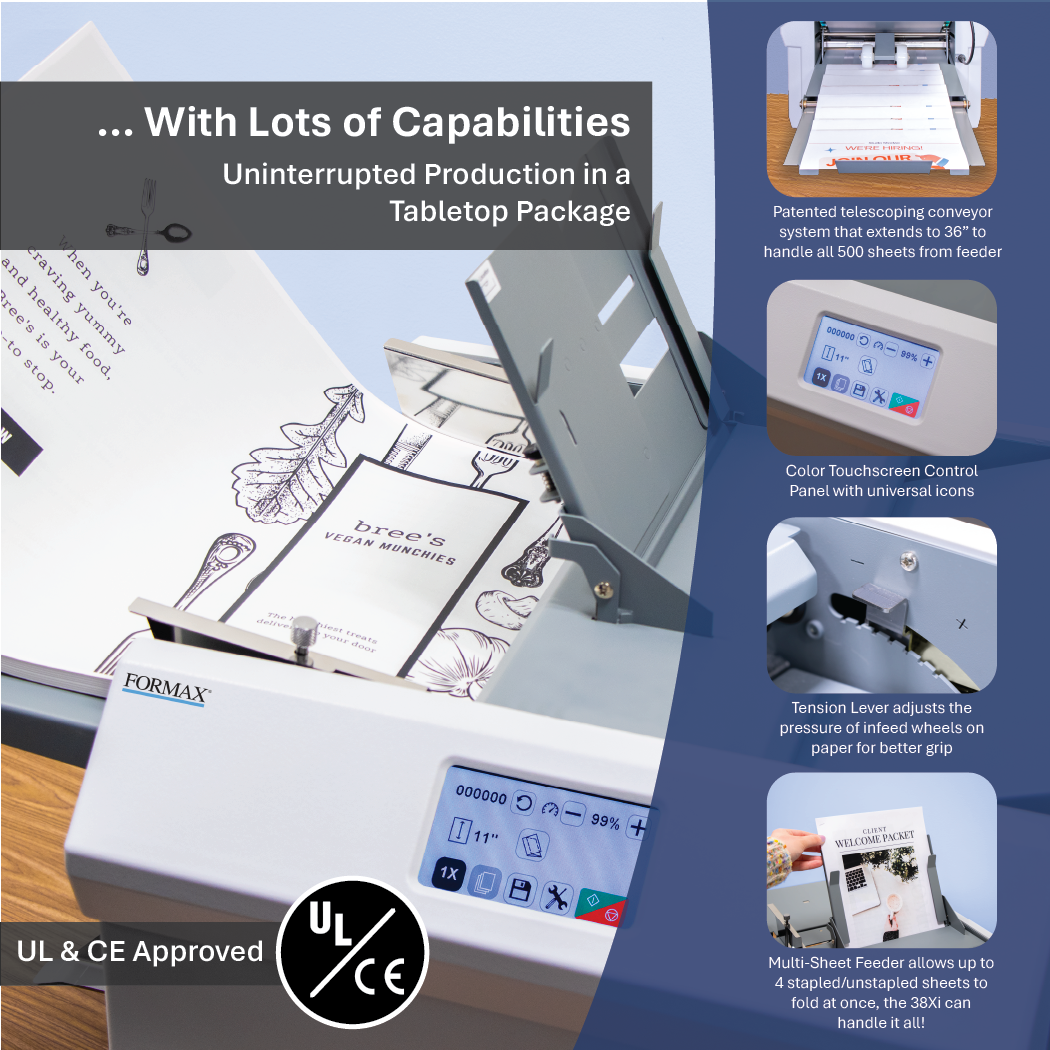

- The large full-color touchscreen control panel allows anyone to walk up and start folding in seconds.
- Three-roller drop-in feed system produces dependable feeding of forms with no fanning required.

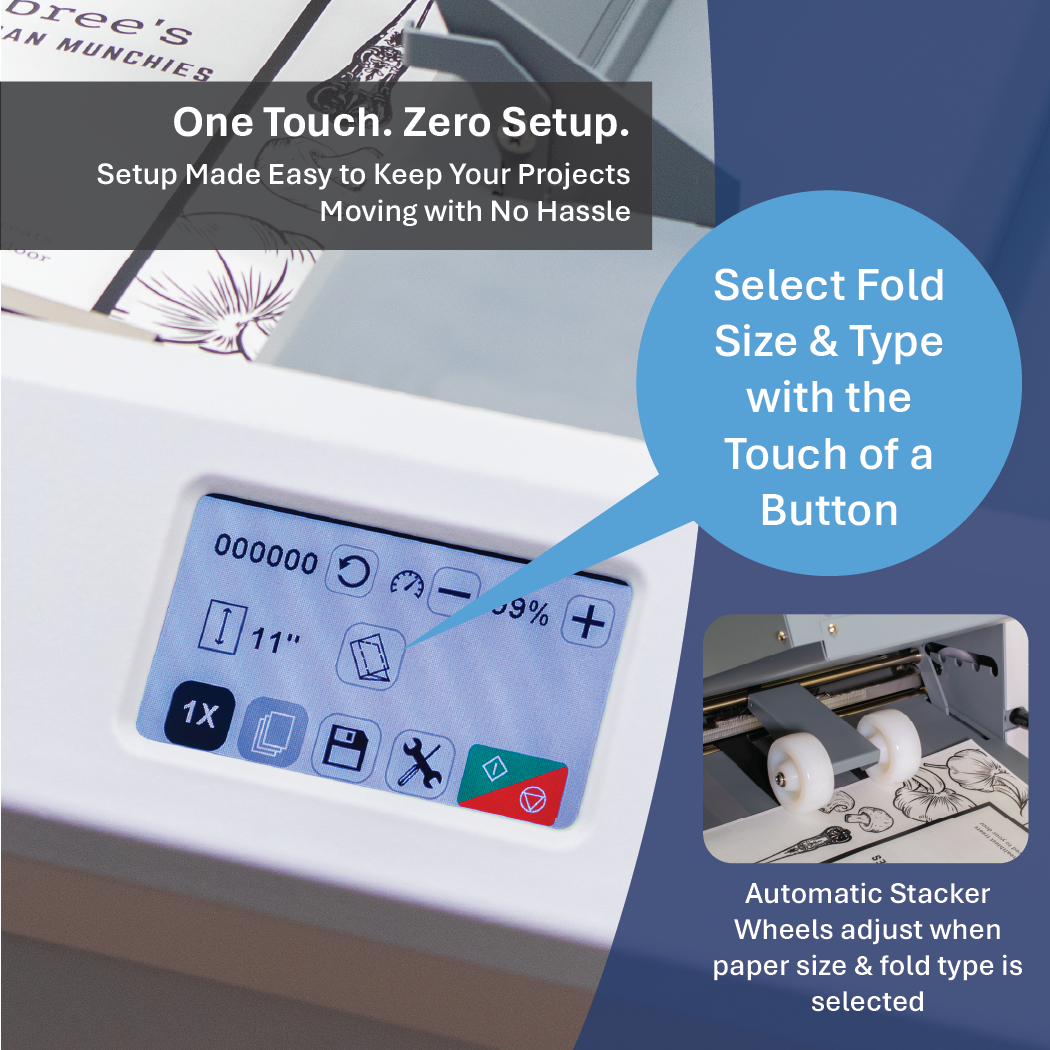

- Fully-automated stacker wheels eliminate moving them by hand when switching paper sizes and fold types.
- Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces.
- Fold plates are enclosed and insulated to reduce operating noise.
- 6-digit resettable & 8-digit life counters provide maximum audit control.

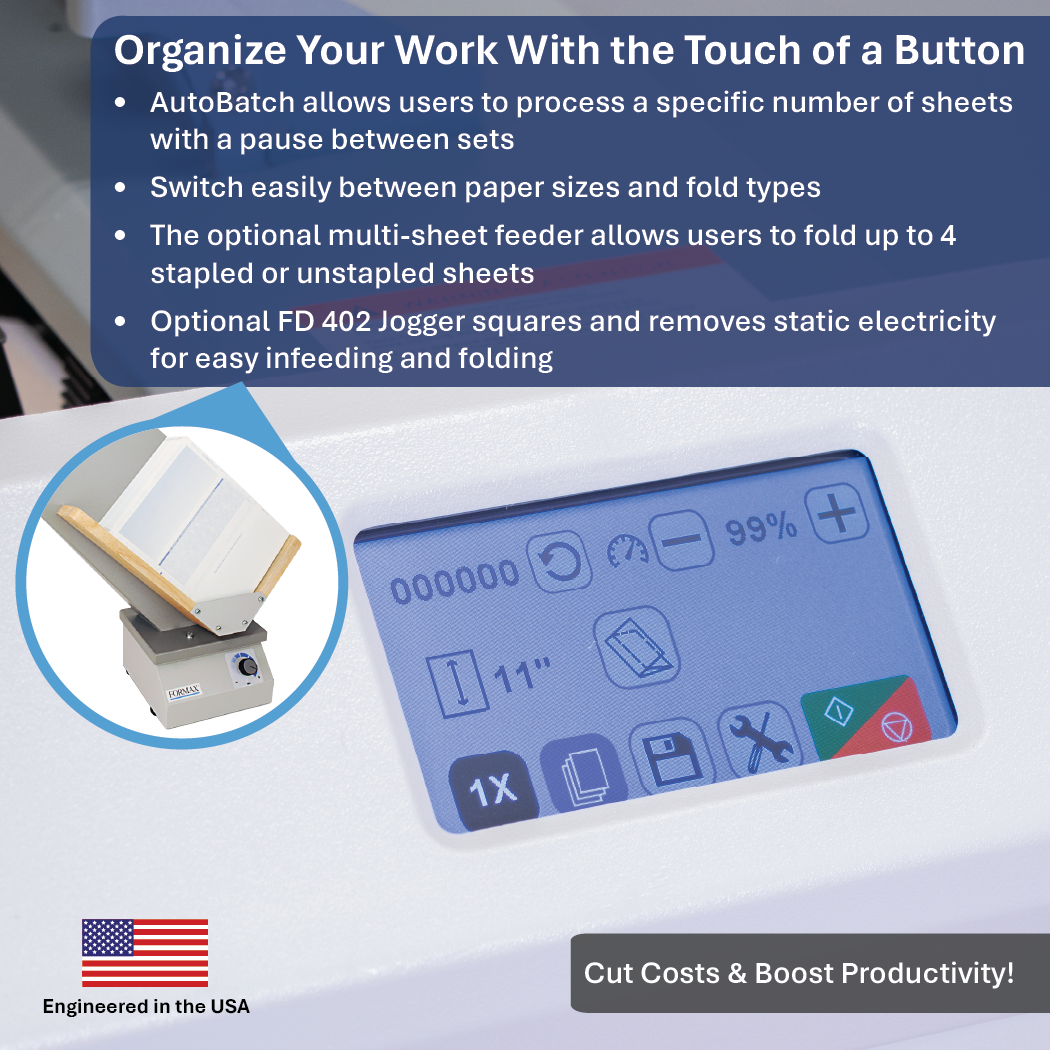

- AutoBatch&trade: is programmable to process pre-set number of sheets into sets with a delay.

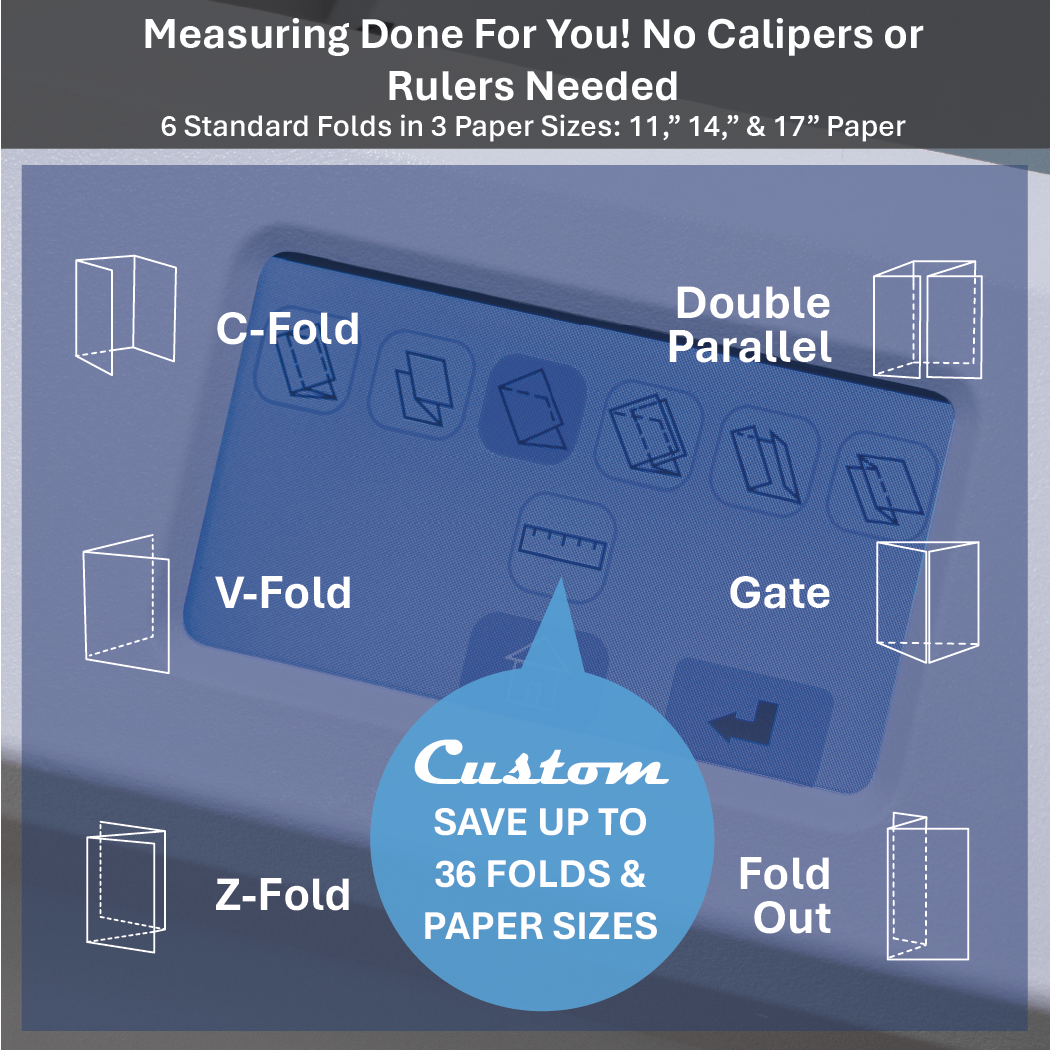

Fold Types of the Formax FD 38Xi Automatic Paper Folder
There are six different fold types available for the FD 38Xi:
(1) Letter fold (Tri-fold, C-fold),
(2) Half-fold (Single fold),
(3) Z-fold (Accordion, Zig Zag),
(4) Double-Parallel,
(5) Gate (Open Gate, Brochure), and
(6) Engineer (Short Z, Fold Out, Half Accordion)
(1)
(2)
(3)
(4)
(5)
(6)
Description of the Formax FD 38Xi Automatic Paper Folder
The FD 38Xi Fully Automatic Document Folder is the ideal solution for any business, church, school or print-for-pay center that demands quick and easy set-up. The FD 38Xi features a full-color touchscreen control panel making it extremely easy to use and provides a user interface that is second to none. Fully automated fold plates and AutoStackTM Stacker Wheels provide one touch set-up of the 18 pre-programmed fold settings or for choosing one of the 36 custom folds that can be stored into memory.
The FD 38Xi is fast, folding up to 17,000 pieces per hour! Operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks. The FD 38Xi will fold the 500 sheets in as little as 2 minutes and hold the folded pieces on its patented Telescoping Conveyor System.
The dedicated Multi-Sheet Feeder folds up to 4 stapled or unstapled sheets at one time, with the ability to choose standard or custom folds in letter and legal paper sizes.
The large full color touchscreen control panel allows for untrained operators to walk up and start folding with little to no instruction. The FD 38Xi advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs.
The FD 38Xi can be paired with the optional V-Stack36i Vertical Stacker, which stacks up to 22” of folded documents, making them easier to unload for further processing.
Folding Features
- Six Standard Folds in Common Paper Sizes: Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equalling 18 preset fold settings.
- Custom Folds: Up to 36 custom folds can be programmed and stored into memory.
- Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at once, with the ability to select standard or custom folds in letter and legal paper sizes.
- Standard Fold Settings Modification: Even the six standard fold types can be modified individually for each paper size for maximum flexibility and customization.
- Cross-Folding: A guide is included for two pass operation.
Technical Features
- Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers.
- Seven Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds.
- Removable Roller Cover: Easily removed for improved access to fold rollers and exit area.
Please select your preferred download file for the FD 38Xi from the list below.
- Spec Sheet for the Formax FD 38Xi Folder (PDF file)
- Operators Manual for the Formax FD 38Xi Folder (PDF file)
For additional resources, please see:
- Our Paper Weight Conversion Chart for paper weight and paper stock information.
- Our Paper Folder Fold Type Guide to learn more about different fold types.
| Manufacturer Name | Formax |
|---|---|
| Model # | FD 38Xi |
| Feed Type | Friction-fed |
| Fold Adjustment Setting | Automatic fold adjustment |
| Feed Tray Capacity | Up to 500 |
| Fold Speed | Up to 17,000 sheets/hour |
| Fold Types | Letter Fold, Half Fold, Z Fold, Double Parallel Fold, Gate Fold, Fold Out |
| Pre-programmed Standard Folds | 6 |
| Programmable Presets | 18 |
| Variable Speed | Yes |
| Counter | Yes |
| Batcher | Yes |
| Accepted Paper Sizes | 3 1/2" x 5" to 12 1/4" x 18" |
| Weight | 74 lbs. |
| Height | 19 inches |
| Width | 60 inches |
| Depth | 20 inches |
| Voltage | 110-240 Volts; other voltages available |
| Warranty | Click here to view warranty |
| Shipping Weight | 104.0 lbs. |
| Shipping Length | 24 |
| Shipping Width | 30 |
| Shipping Height | 27 |
