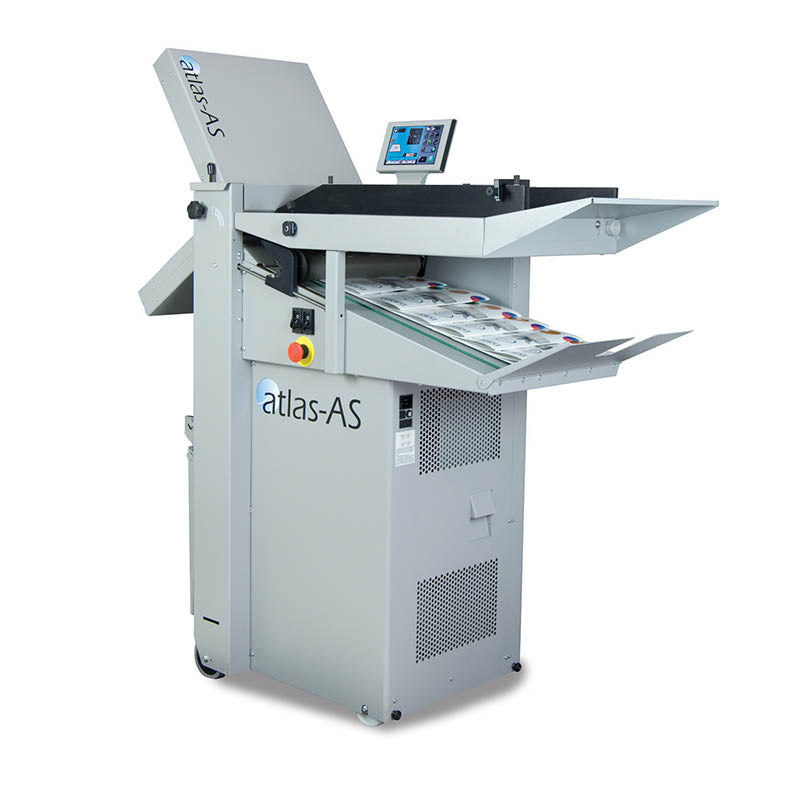

Formax FD Atlas-AS Air Feed Folder

Formax FD Atlas-AS Air Feed Folder

Capabilities

  • Max Paper Weight: 240 g/m²  /  64# Bond  /  134# Index    Click for Complete Conversion Chart
  • Max Paper Size: 14.3" x 26.5"
  • Min Paper Size: 5.5" x 6.2"
  • Paper Type: Non Glossy Paper, Non Coated and Coated Stock
  • Speed: 27,000 sheets/hour
  • Duty Cycle: Production Grade
  • Adjustment: Manual
  • Feed type: Air
  • Multi-sheet: No

Features of the Formax Atlas-AS

  • Feed Type:  Bottom air feed
  • 6 Pre Programmed Standard Folds:  Letter, Zig-Zag, Gate, Half, Fold-Out, Double Parallel
  • Unlimited programmed custom folds
  • Color Touchscreen controls

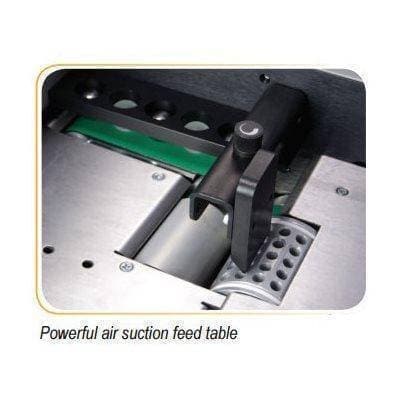

  • Air suction feed table
  • Sheet capacity: up to 500 sheets 22#bond





Regular price
$14,195.00
Sale price
$14,195.00
Unit price
per


SKU: BESFDATLAS-AS ISBN: 096224657878
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the Formax Atlas-AS


Description of the Formax Atlas-AS

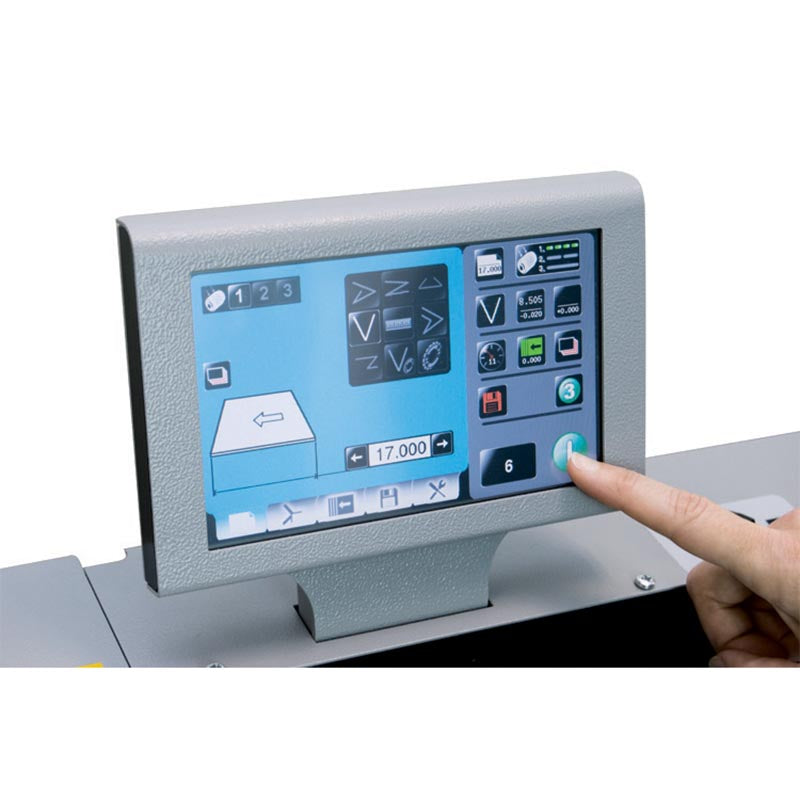

The Formax Atlas-AS is designed for high volume output without needing maximum space. This sturdy folder can process up to 27,500 sheets in an hour. Like many folders, the Atlas-AS has 6 standard pre-programmed fold settings, but unlike many folders the Atlas-AS has the ability to store unlimited custom fold settings. The easy to use 7' color touchscreen makes programming fast and simple. The enclosed fold plates have dial controls with LED readouts that are accurate within 0.1mm. Fold rollers are made of a sturdy, composite material that can grip even high gloss stock.

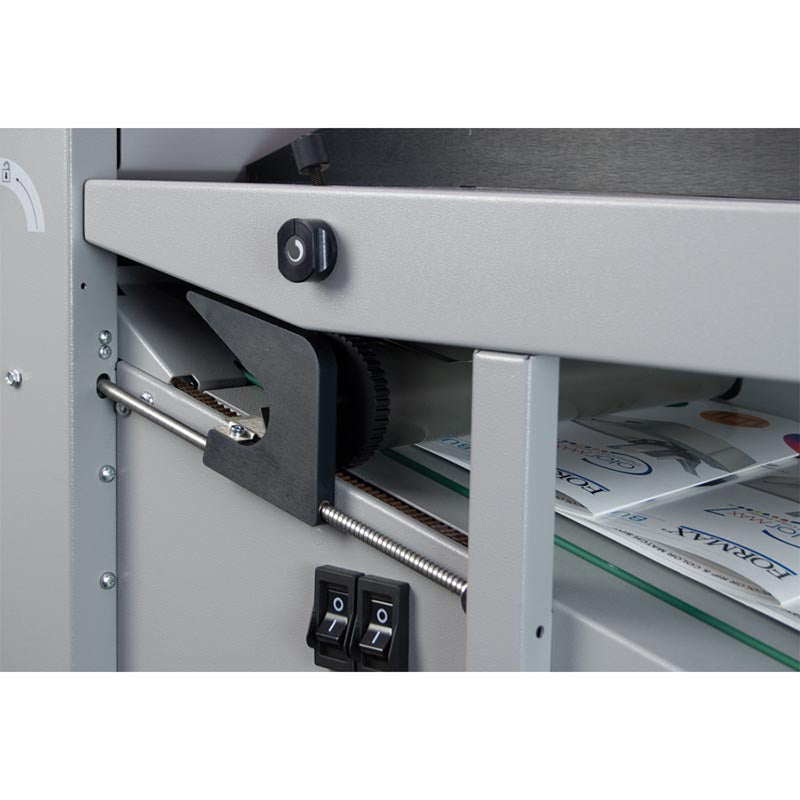

The Atlas-AS will handle up to 500 sheets at one time, it accepts coated and non-coated stock up to 25.6" inches in length. The air-feed suction table aligns and squares the sheets before feeding and the air suction chamber controls curled paper and static. For even more convenience, the outfeed stacker is on the same side as the infeed table so the user can load and unload from the same position. Another standard feature is plug in scorer / perforator which also serves as a roller bypass for cover stock to be folded and output flat. Additional features like anti-static brushes, skew and micro adjustments, and double document detection make the Formax Atlas-AS a fast, accurate folder that can take on big jobs but leave a small footprint.

FOLD TYPES

Letter/Tri/C FoldHalf/Single FoldZ/Accordion/Zig Zag FoldDouble Parallel FoldGate/Brochure FoldEngineering/Short Z/Fold-Out/Half-Accordion Fold

Manufacturer Name Formax
Model # Atlas-AS
Feed Type Air-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity Up to 500
Fold Speed 27,000 sheets/hour
Fold Types Letter Fold, Half Fold, Gate Fold, Double Parallel Fold, Zig Zag, Fold Out
Pre-programmed Standard Folds 6
Variable Speed Yes
Counter Yes
Accepted Paper Sizes 6.2'' x 5.5'' to 26.5'' x 14.3''
Accepted Paper Weights Up to 90# bond
Weight 265 lbs.
Height 54''
Width 21.8''
Depth 48.8"
Voltage 220 Volts; other voltages available
Warranty

Shipping Weight 280.00
Shipping Length 55
Shipping Width 22
Shipping Height 56
