Formax FD 314 Desktop Paper & Letter Folder
Formax FD 314 Desktop Paper & Letter Folder
Formax FD 314 Paper and Letter Folder
Formax FD 314 Paper and Letter Folder

https://www.youtube.com/watch?v=Xs1xA1KMVDI
https://www.youtube.com/watch?v=Xs1xA1KMVDI
Formax FD 314 Paper and Letter Folder
Formax FD 314 Paper and Letter Folder



Formax FD 314 Desktop Paper & Letter Folder

  • SKU: BESFD314
  • Max Paper Weight: 112 g/m²
  • Max Paper Size: 8.5" x 14"
  • Adjustment: Automatic
  • Feed Type: Friction
Sale price
Sale price
$1,220.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product qualifies for Free Ground Shipping within the contiguous U.S.

Basic Spec of the Formax FD 314 Folder

  • Max Paper Weight: 112 g/m² / 30# Bond  / 60# Index
  • Paper Size: 4" x 5" to 8.5" x 14"
  • Hopper Capacity: Up to 250 sheets
  • Fold Types: C-fold, Z-fold, V-fold, and Double Parallel
  • Paper Type: Non or semi-gloss paper only; Please call us about glossy/coated stock.
  • Speed: 7,700 sheets/hour
  • Duty Cycle: Light Duty
  • Adjustment: Automatic
  • Feed Type: Friction
  • Multi-sheet: No

Features of the Formax FD 314 Folder

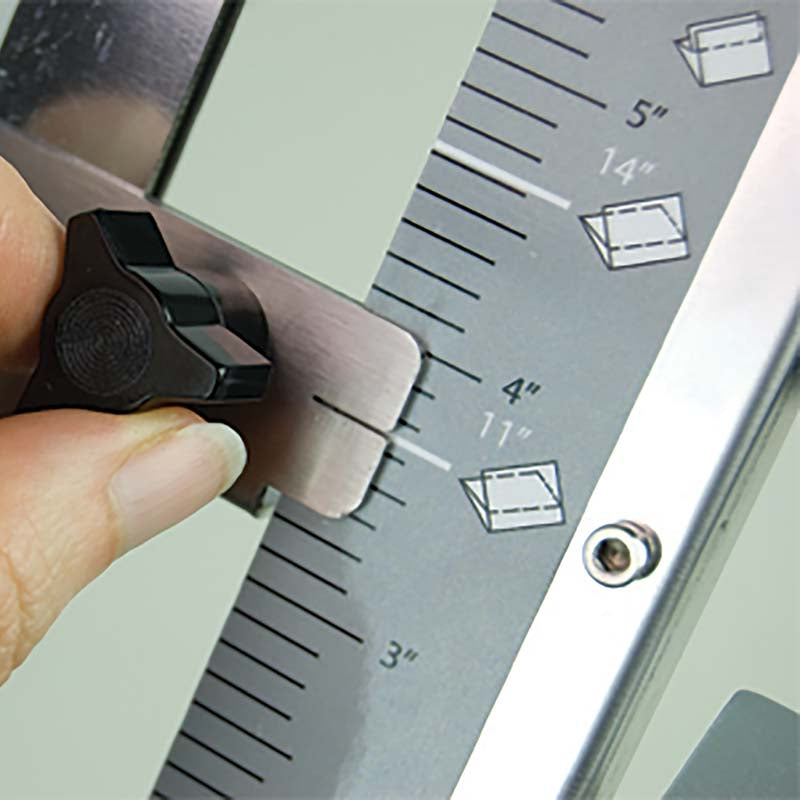

  • Clearly-marked fold settings.
  • Compact size is ideal for low-volume applications.

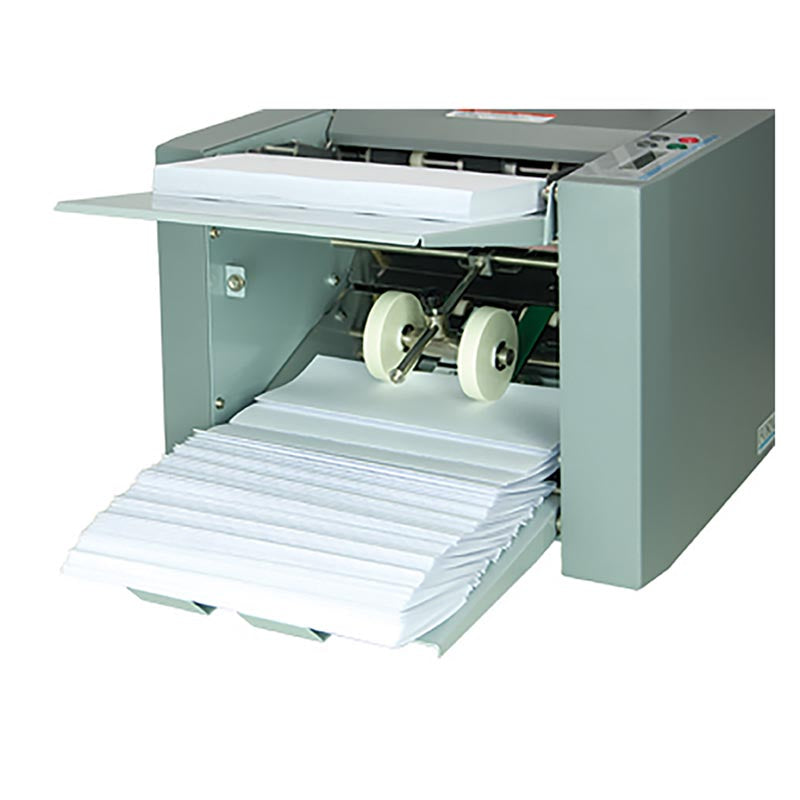

  • Output conveyor for neat and sequential stacking.
  • Simply square the paper and load it in the feed tray, no fanning required.
  • Paper sizes up to 8.5" x 14".
  • Auto-batch.
  • Push-button operation.
  • Drop-in top feed system.
  • LCD control panel.
  • Output conveyer for neat stacking.

Fold Types for the Formax FD 314 Folder

There are seven different fold types available for the FD 314: (1) Letter fold (Tri-fold, C-fold), (2) Half-fold (Single fold), (3) Z-fold (Accordion, Zig Zag), and (4) Double-Parallel.

(1)Letter/Tri/C Fold (2)Half/Single Fold (3)Z/Accordion Fold (4)Double Parallel Fold

Proper maintenance is the key to extending the life of your paper folding machine. We strongly advise that you protect your investment by adding the FD 314 Paper Folder Maintenance Kit to your cart.

Video for the Formax FD 314

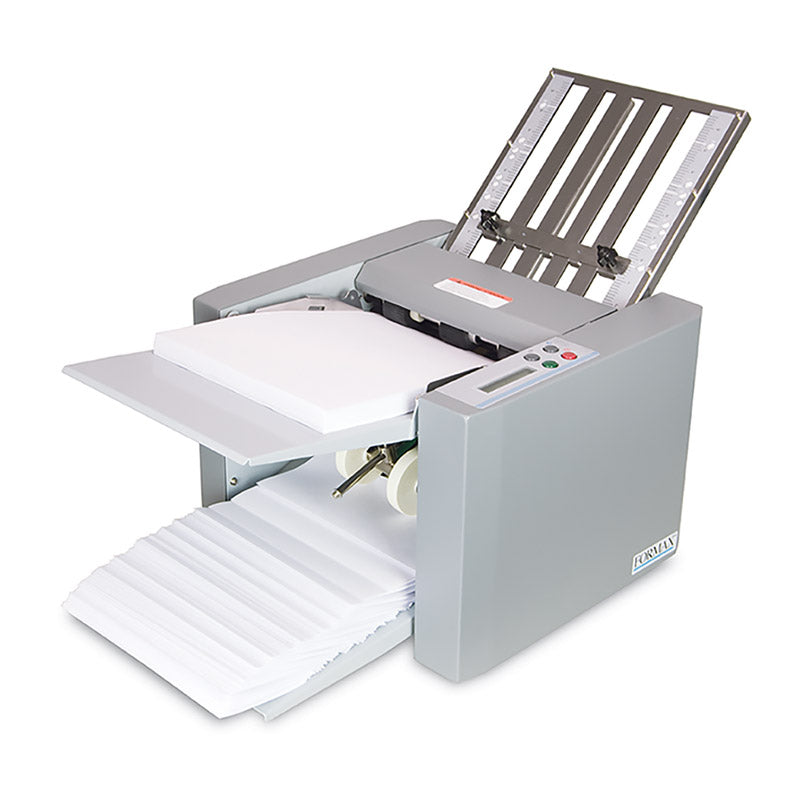

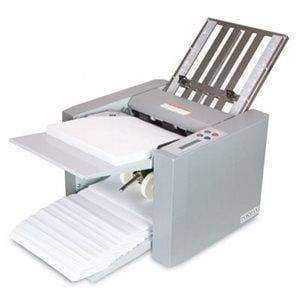

Description of the Formax FD 314 Automatic Tabletop Paper Folder

The Formax FD 314 folding machine is an ideal accommodation for any office with low-volume needs. Replacing the old FD 312, the FD 314 folds pamphlets, programs, cards, and more. Simply insert a squared stack of paper (no fanning required) up to 8.5" x 14"and configure the push button operation. Switch between fold types and settings quickly and easily to accommodate different jobs. Fold plates are marked with 4 common folds for easy setup (letter, zig zag, half, double parallel), but can be adjusted to custom folds for custom projects. The FD 314 can pass 11" and 14" paper in a three-tier drop system at an incredible 7,700 sheets per hour and hold 250 sheets in the feed hopper.

The simple out-of-the-box operation means there is absolutely no assembly required and will start working right away. Machine operation is so simple, simply input set numbers into the LCD control panel that also includes a resettable 3-digit counter to help keep track of items and sets. Auto-batch allows users to process a set number of sheets with a pause in between sets. The built-in output conveyor is equipped with adjustable stacker wheels for neat stacks of folded pieces.

Place it anywhere in your office and even move it to other places. Its lightweight and compact design allows it to fit just about anywhere. Designed for low-volume jobs, the FD 314 processes thousands of pieces, saving time and effort on otherwise tedious jobs (if completed manually). The FD 314 Office Folding Machine is an economical addition to any office, providing fast and easy operation for your folding needs.

Want to know how to properly maintain your FD 314 Folder? Click here for the FD 314 folder maintenance kit.

Please select your preferred download file for the FD 314 from the list below.

For additional resources, please see:

Manufacturer Name Formax
Model # FD 314
Feed Type Friction-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity 250 sheets
Fold Speed Up to 7700 sheets/per hour
Fold Types Half Fold, Letter Fold (Tri), Z Fold, Gate Fold, Double Parallel Fold
Counter Yes
Batcher Yes
Accepted Paper Sizes Up to 8.5"W x 14"L
Weight 27 lbs
Height 17"
Width 14"
Depth 24"
Voltage 120 Volts; other voltages available
Warranty

Shipping Weight 0.0000
Shipping Length 18
Shipping Width 16
Shipping Height 14
