  • SKU: AERODIECUT
  • Mfr. Part No.: CU0486
$77,998.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Eligible for FREE FREIGHT SHIPPING within the contiguous United States.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.

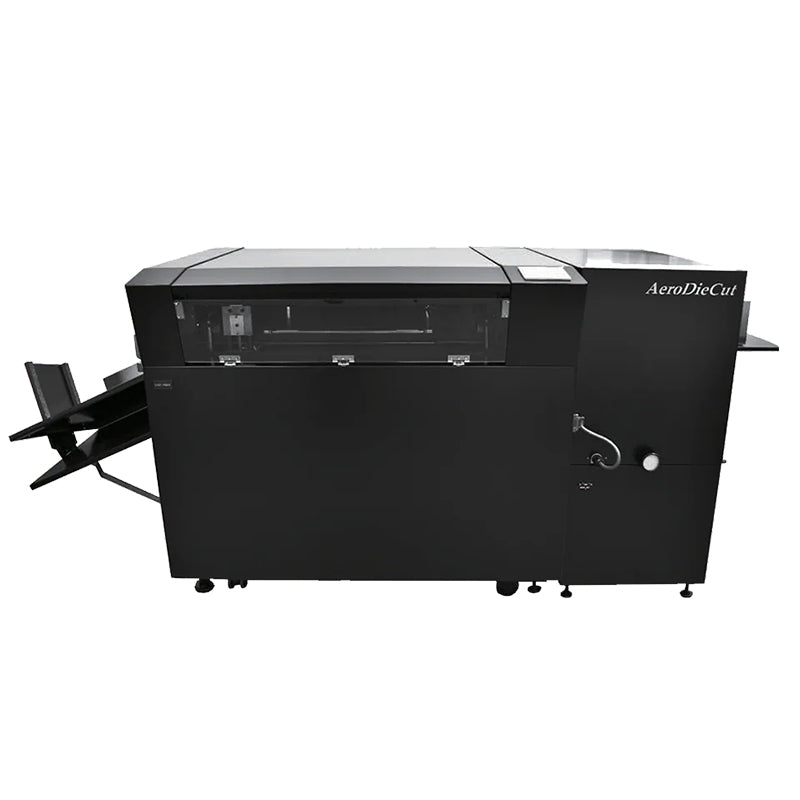

The all-new AeroDieCut offers advanced platen die technology, enabling fast, precise, and cost-effective finishing for printed materials. Compact and user-friendly, it’s ideal for producing complex cuts, creases, and perforations efficiently.

Basic Specs of the MBM AeroDieCut

  • Max. Speed:* 1,000 sheets per hour
  • Max. Paper Size: 14.3” x 20.25”
  • Max. Finishing Size: 12.2” x 19”
  • Paper Weight:* 120 - 400 gsm / 6 - 16 pt.**
  • Die Board Size: 13.75” x 21.65”
  • Die Board Thickness: 7"
  • Cutting Rule Height: .91”- .93”
  • Electrical Requirements: 110 - 120 V, 50/60 Hz
  • Dimensions (D x W X H): 42” x 106” x 43”
  • Weight: 903 lbs.

    • *May vary due to variations in paper and power supply/paper coatings (varnish, UV, laminates, etc.)

    **Applications above 400 gsm must be tested and verified due to variation in paper stock.


Features of the MBM AeroDieCut

  • AeroDieCut uses advanced platen dies for high-quality, precise finishing.
  • Ideal for producing unique shaped cards, boxes, and more.
  • Easier to operate than traditional large format die cutters.
  • More productive than cutting plotters and laser cutters.
  • Processes complex cuts, creases, perforations in a single pass.
  • Designed with a focus on operator safety and simplicity.
  • Compact and user-friendly, suitable for use anywhere, anytime.
  • Transforms printed materials into various applications like cards, boxes, tags.
  • Includes chase adapter and rack for die boards and plates.
  • The AeroDieCut Waste Separator Version II, a belt conveyor, a 3 piece stainless steel cutting plate set, and a 3 piece aluminum cutting plate set are optional accessories.
  • These optional accessories improve waste management and collection efficiency.

Description of the MBM AeroDieCut

The MBM AeroDieCut is a compact and user-friendly die cutting solution designed to produce professional-quality finished materials using traditional platen dies. These dies are easy to obtain and cost-effective, making the AeroDieCut a practical choice for print shops and marketing service providers handling a variety of digital print finishing applications.

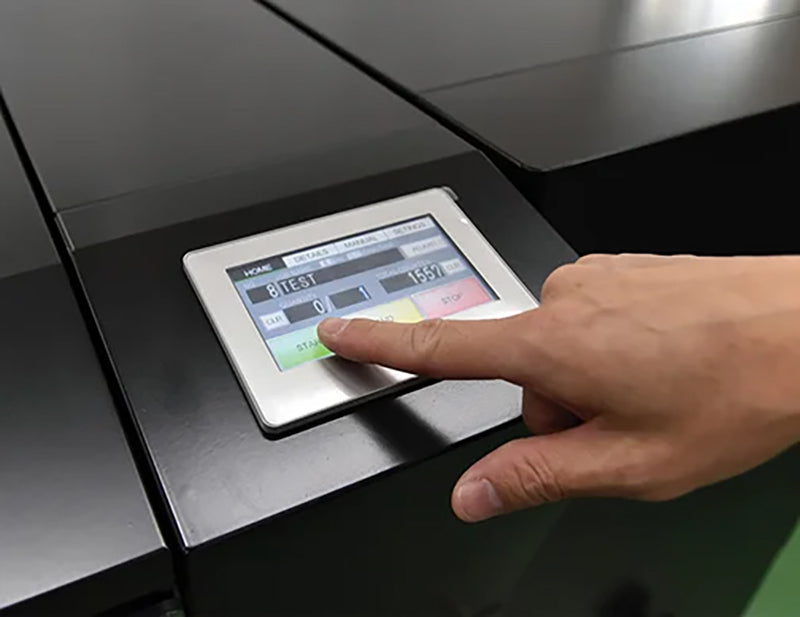

Designed to be easier to operate than traditional large-format die cutters, the AeroDieCut can perform complex cuts, creases, and perforations in a single pass. Its intuitive operation, minimal mechanical adjustments, and focus on operator safety make it suitable for producing both personalized and short-run print jobs.

The AeroDieCut provides the flexibility to transform printed sheets into custom cards, boxes, swing tags, shelf talkers, and other uniquely shaped materials. Its compact design also makes it easier to incorporate professional die cutting capabilities into print finishing environments where space may be limited.

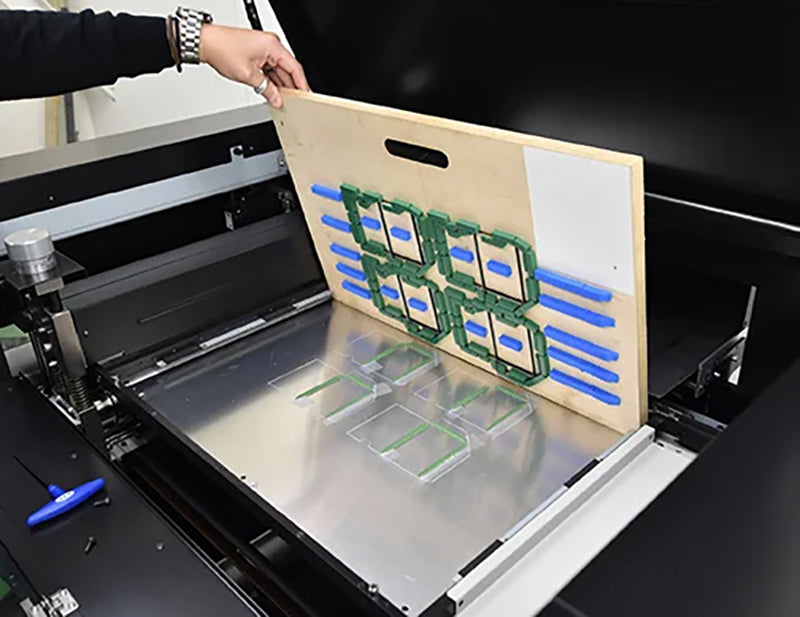

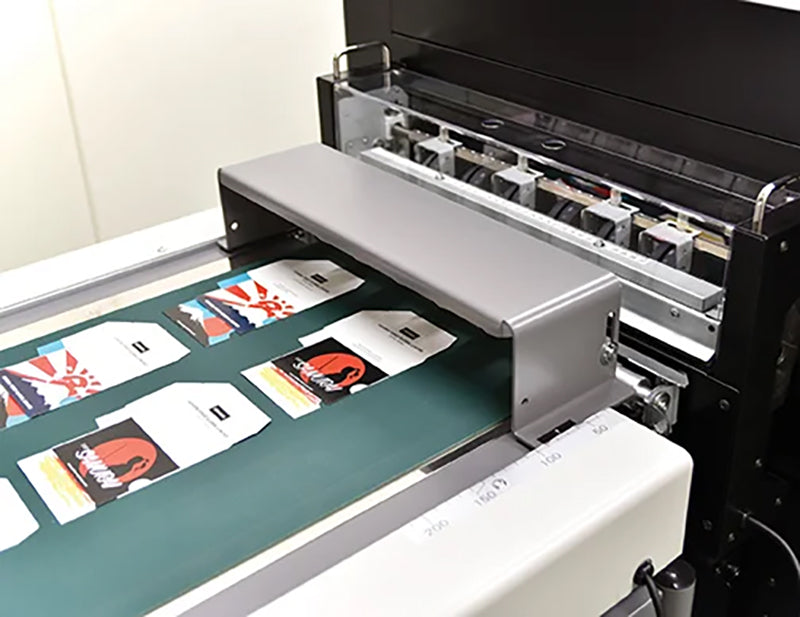

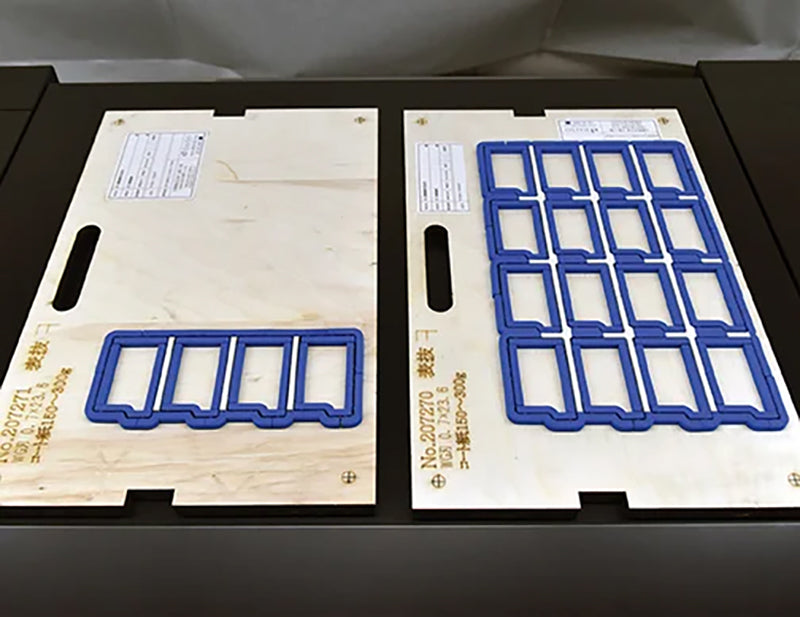

A chase adaptor and die board rack for holding die boards and cutting plates are included with the AeroDieCut. Optional accessories include a waste separator that directs scraps into a waste bin, a conveyor delivery table for easier collection of finished pieces, and stainless steel or aluminum cutting plate sets.

Please select your preferred download file from below.

Manufacturer Name MBM
Max. Speed 1,000 sheets per hour (May vary due to variations in paper and power supply/paper coatings like varnish, UV, and laminates.)
Max. Paper Size 14.3” x 20.25”
Max. Finishing Size 12.2” x 19”
Paper Weight 120 - 400 gsm / 6 - 16 pt. (Applications above 400 gsm must be tested and verified due to variation in paper stock.)
Die Board Size 13.75” x 21.65”
Die Board Thickness 7”
Cutting Rule Height .91”- .93”
Electrical Requirements 110 - 120 V, 50/60 Hz
Dimensions (D x W X H) 42” x 106” x 43”
Weight 903 lbs.
