Paitec ES8500 Tabletop Pressure Sealer & Folder

Regular price
Sale price
Unit price
Request A Quote

 This product qualifies for Free Freight Shipping (in the contiguous U.S.)

Secured & Safe Checkout :

    American Express Discover Mastercard Visa
SKU:   PAIES8500
ISBN:   096224650367
Availability: In stock

This product requires liftgate service. If you don't have a loading dock, or other on-site staff to assist in lifting/moving this product off of the delivery truck, please add Liftgate Service to your cart.


  • Speed of up 9,000 documents/hour
  • Duty cycle: 130,000 pieces/month
  • Form size: depth - up to 14"; width - up tp 9"
  • Can work as a stand-alone or in-line with laser printers
  • Easy and friendly user interface
  • Large capacity infeed tray (can hold up to 1,400 forms)
  • Reverse friction feed roller system
  • Double feed detector
  • Built-in 350 sheet catch tray
  • Optional auto extending exit conveyor or vertical stacker (can hold 650 forms)
  • Fold types: double parallel, C, V, Z, EZ and EC

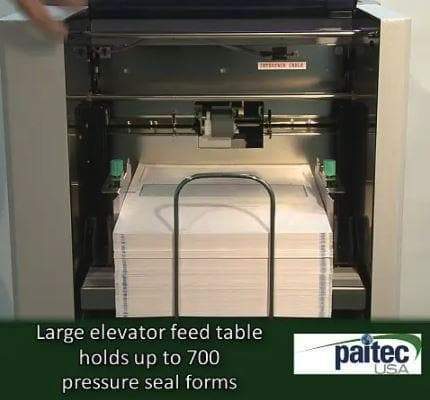

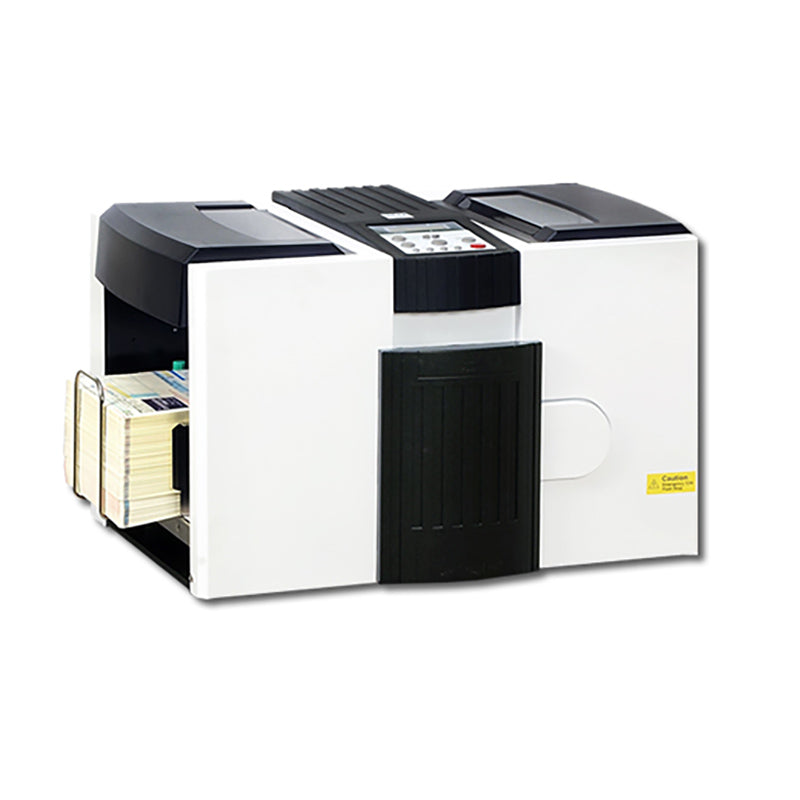

The Paitec ES 8500 is a heavy duty tabletop pressure sealer that features a unique elevator feed table that holds up to 700 forms. The ES 8500 features reverse friction feed rollers (a unique RFR system) that can detect and correct most double feeds without any help from the user. Any pressure form (checks, invoices, bills, grade reports, result forms, coupons, notices, and more) up to 14_x009d_ long and 9_x009d_ wide can be folded and sealed in no time at all and easily mailed. The auto-lift infeed holds an incredible 700 pressure seal forms (catch tray holds 150 so users do not have to reload forms as often during the 9,000 forms per hour process. And with a high duty cycle, users can seal up to 130,000 forms per month, roughly 6,000 per day without overworking the machine.

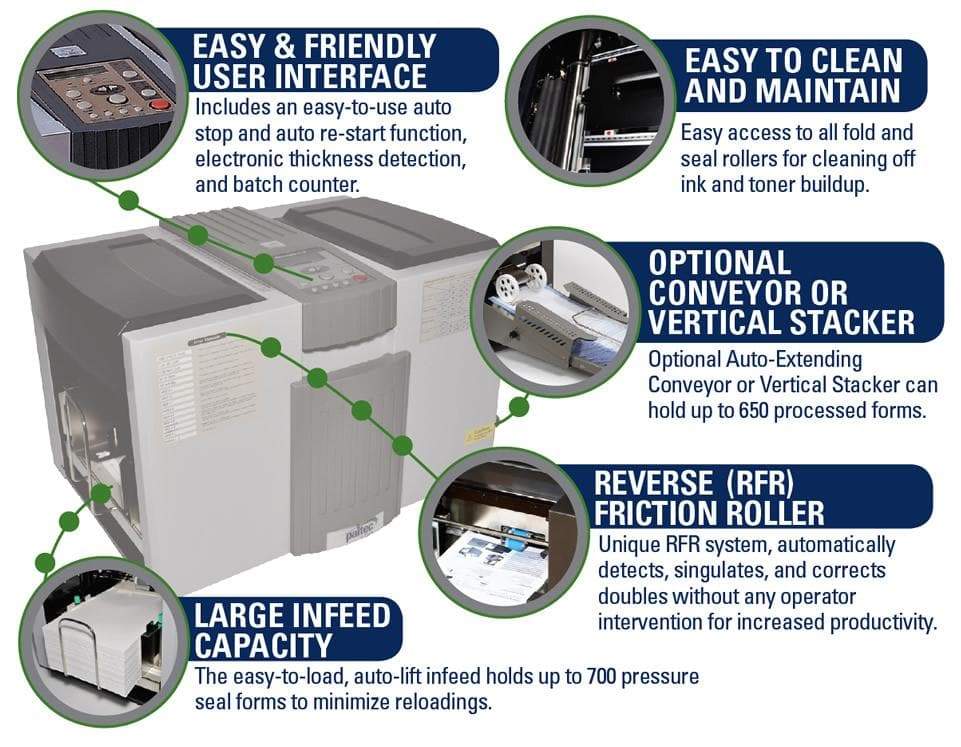

Users can remove the cover for easy access to fold and feed rollers to clean any residue, such as ink or dust. The LCD control panel features a batch counter, speed control, and electronic thickness detection. Easily adjust fold settings (Z, EZ, C, EC, V, & Double Parallel folds) and start sealing for a speedy, hands-free process. Also available for the ES 8500 is an optional metal cabinet, inline kit (to connect to select printers), and auto extending conveyer or vertical stacker (holds 650 finished forms). The ES 8000 is a great value for any business looking for a greener way to mail.

Manufacturer Name Paitec
Feed Type Friction-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity Up to 1,000 (with optional conveyor or stacker)
Speed 9,000 forms/hour
Programmable Presets 18
Counter Yes
Batcher Yes
Fold Types Double Parallel Fold, C Fold, V Fold, Z Fold, EZ Fold, EC Fold
Accepted Paper Sizes A4, Letter, Legal
Accepted Paper Weights 20 to 28 lbs.
Duty Cycle 130,000
Model # ES8500
Weight 115 lbs.
Height 15''
Width 24''
Depth 17''
Voltage 120 Volts; other voltages available
Shipping Weight 150.0000
Shipping Length 24
Shipping Width 35
Shipping Height 24
