Formax Cut-True 33H Hydraulic 31.5" Guillotine Paper Cutter

  • SKU: BESCUTTRUE33H
  • Cut Height: 4"
  • Cut Width: 31.5"
  • Type: Hydraulic
  • Mfr. Part No.: Cut-True 33H
Sale price
$48,995.00
Sale price
$48,995.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.

Designed for demanding print and production environments, the Cut-True 33H features a 31.5” cutting width, allowing print shops and production facilities to efficiently process large “parent sheets” for greater project flexibility and reduced paper costs.

Basic Specs of the Formax Cut-True 33H Hydraulic Guillotine Cutter

  • Cutting Height: 4"
  • Cutting Width: 31.5"
  • Cutting Length Behind Blade: 31.5"
  • Table Length in Front of Blade: 25.6"
  • Cut Type: Dual-button Hydraulic
  • Table Size: 64.25" W x 25.6" D

Features of the Formax Cut-True 33H Hydraulic Guillotine Cutter

  • 10” full-color touchscreen control panel
  • True hydraulic clamp and blade operation with adjustable pressure
  • Fast programmable back gauge for precise positioning
  • Anti-friction air assist ball decks on both front and rear tables

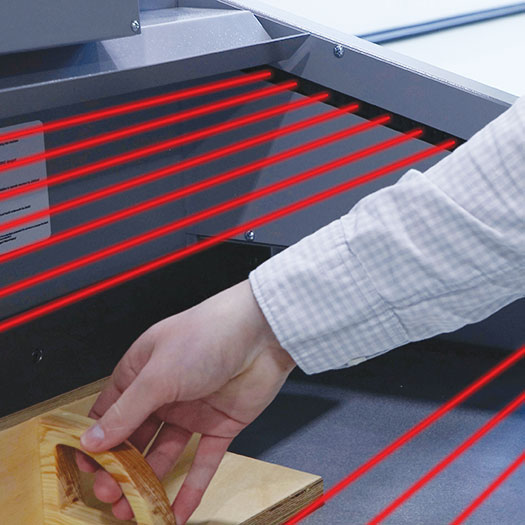

  • Infrared Light Beam safety curtain and ergonomic two-hand operation controls
  • Up to 100 programmable jobs
  • Removable front/rear tables allow the Cut-True 33H to fit through a standard 36” size doorway

Video of the Formax Cut-True 33H Hydraulic Guillotine Cutter


Description of the Formax Cut-True 33H Hydraulic Guillotine Cutter

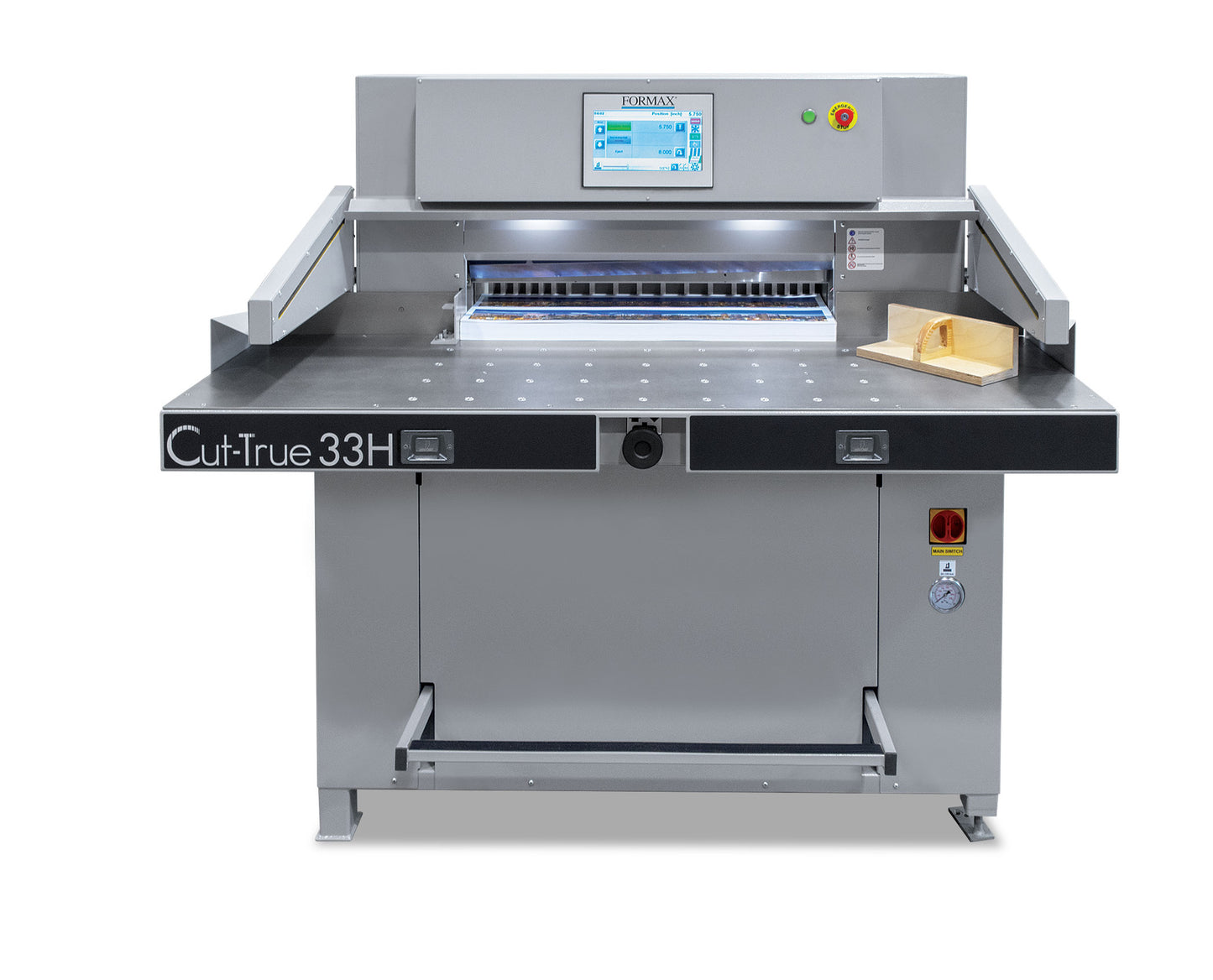

Introducing the Formax Cut-True 33H paper cutter, a true two-shift, industrial-grade hydraulic paper cutter built for demanding digital print and in-plant finishing. With a 31.5-inch cutting width, the 33H delivers the ideal balance of capacity and practicality, handling larger production jobs while fitting seamlessly into most operations.

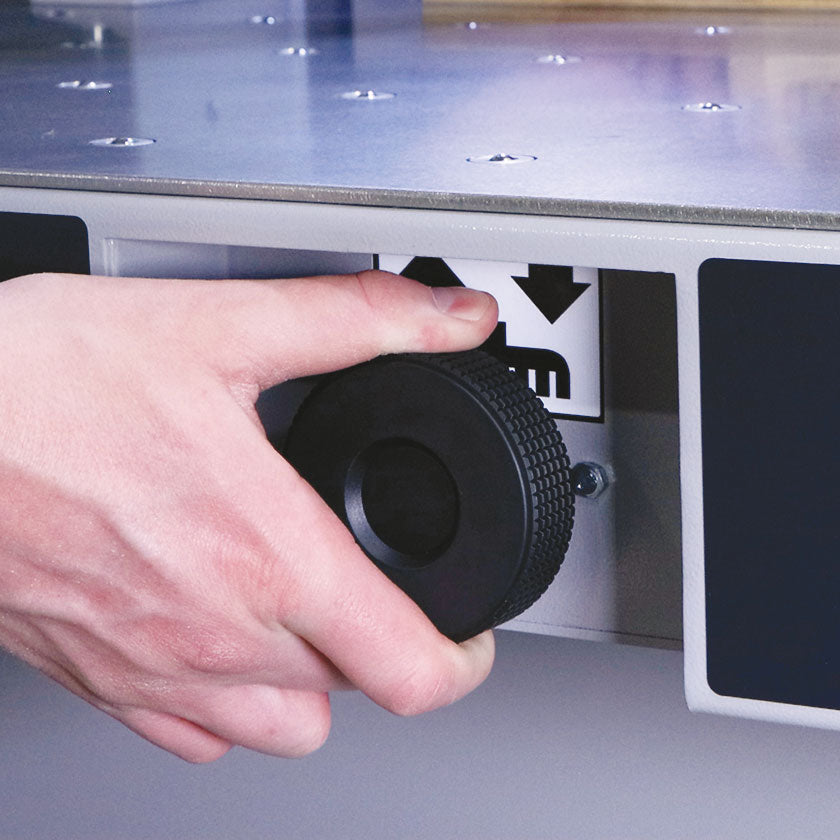

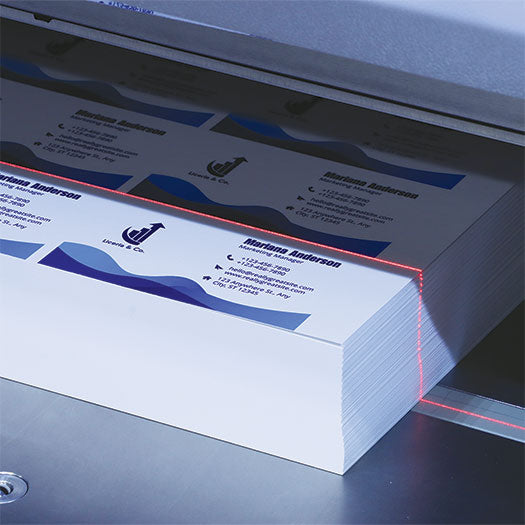

True hydraulic power drives both the blade and clamp, delivering smooth, consistent cuts with minimal effort. On-screen adjustable hydraulic pressure lets operators fine-tune performance based on paper weight and stack height, ensuring clean, accurate results every time. Engineered for precision, the 33H features a high-speed hardened steel blade, PLC-driven electronics, and programmable job settings for consistent, repeatable performance. A bright LED cutting line and electronic micro-adjuster make positioning fast and precise.

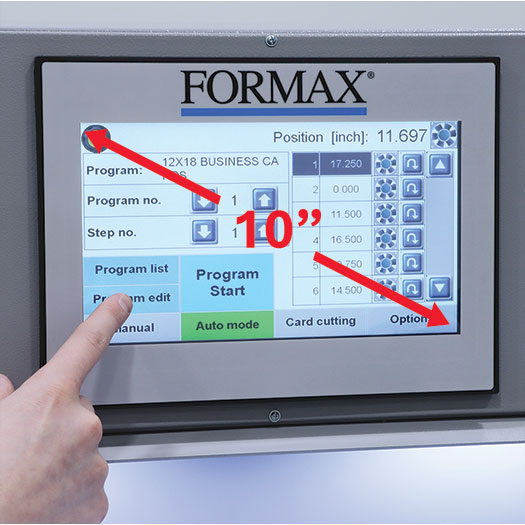

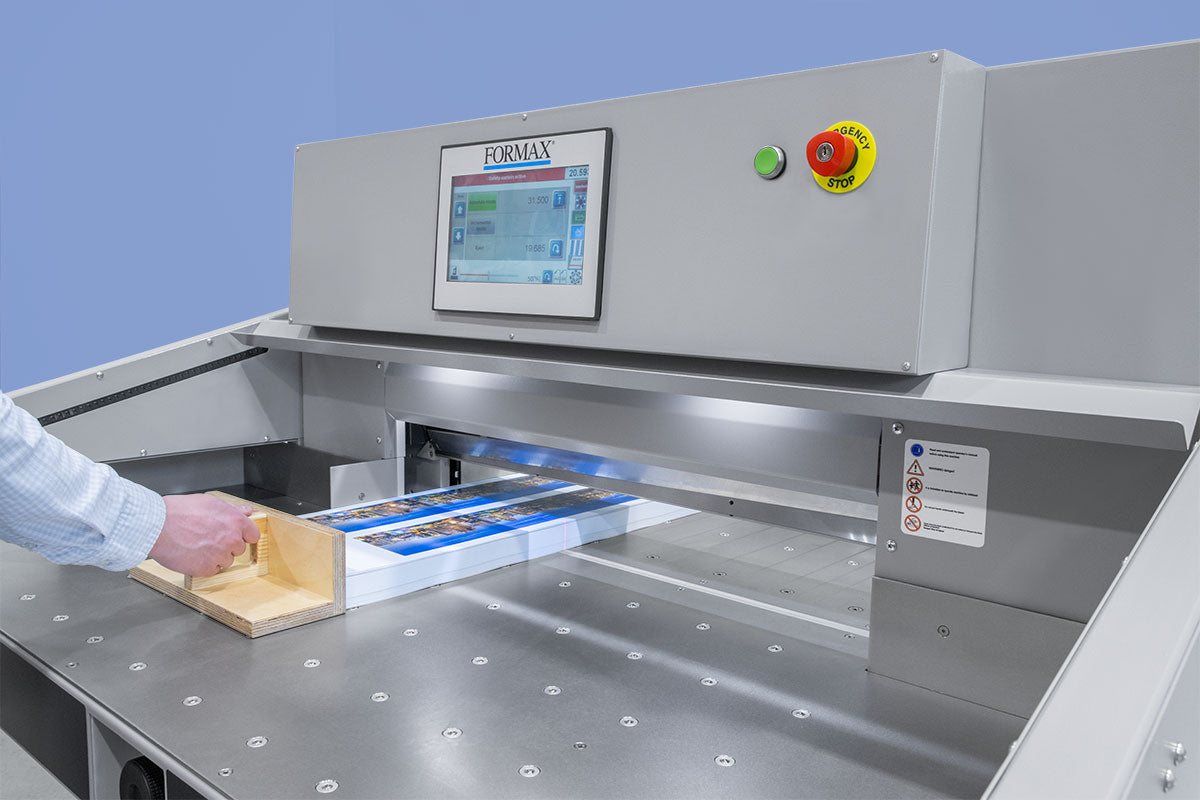

The intuitive 10-inch touchscreen allows you to store up to 100 programs with 100 cuts each, reducing setup time and streamlining repeat jobs. A ¼-inch stainless steel air-assist ball deck allows large stacks to glide effortlessly into position, reducing operator fatigue and improving workflow. A removable false clamp protects sensitive stocks, while built-in safety features, including an infrared safety curtain and dual-button operation, ensure confident, reliable use.

The Formax Cut-True 33H is the ideal solution for producing brochures, manuals, mailers, and more, helping you work faster, reduce waste, and bring more finishing in-house. Simply program, position, and cut: Delivering accurate, professional results every time.

Please select your preferred download file from below.

Manufacturer Name Formax
Model # Cut-True 33H
Max Cutting Width 31.5 inches
Max Paper Stack Height 4 inches
Knife/Clamp Speed Up to 16 cycles/minute
Cutting Length Behind Blade 31.5 inches
Cutting Length in Front of Blade 25.6 inches
Minimum Cut 1.97" (.98" w/o False Clamp)
Table Size 64.25" W x 25.6" D
Clamp Style Automatic, Hydraulic
Clamp Pressure 700-4,500 psi
Back Gauge Adjustment Electronic back gauge switch
Power Supply 3 Phase, 220V, 60Hz, 40A dedicated line
Weight 1,874 lbs.
Dimensions (H" x W" x D" 59" x 66" x 75"
