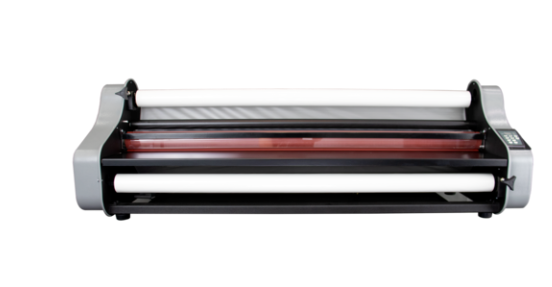

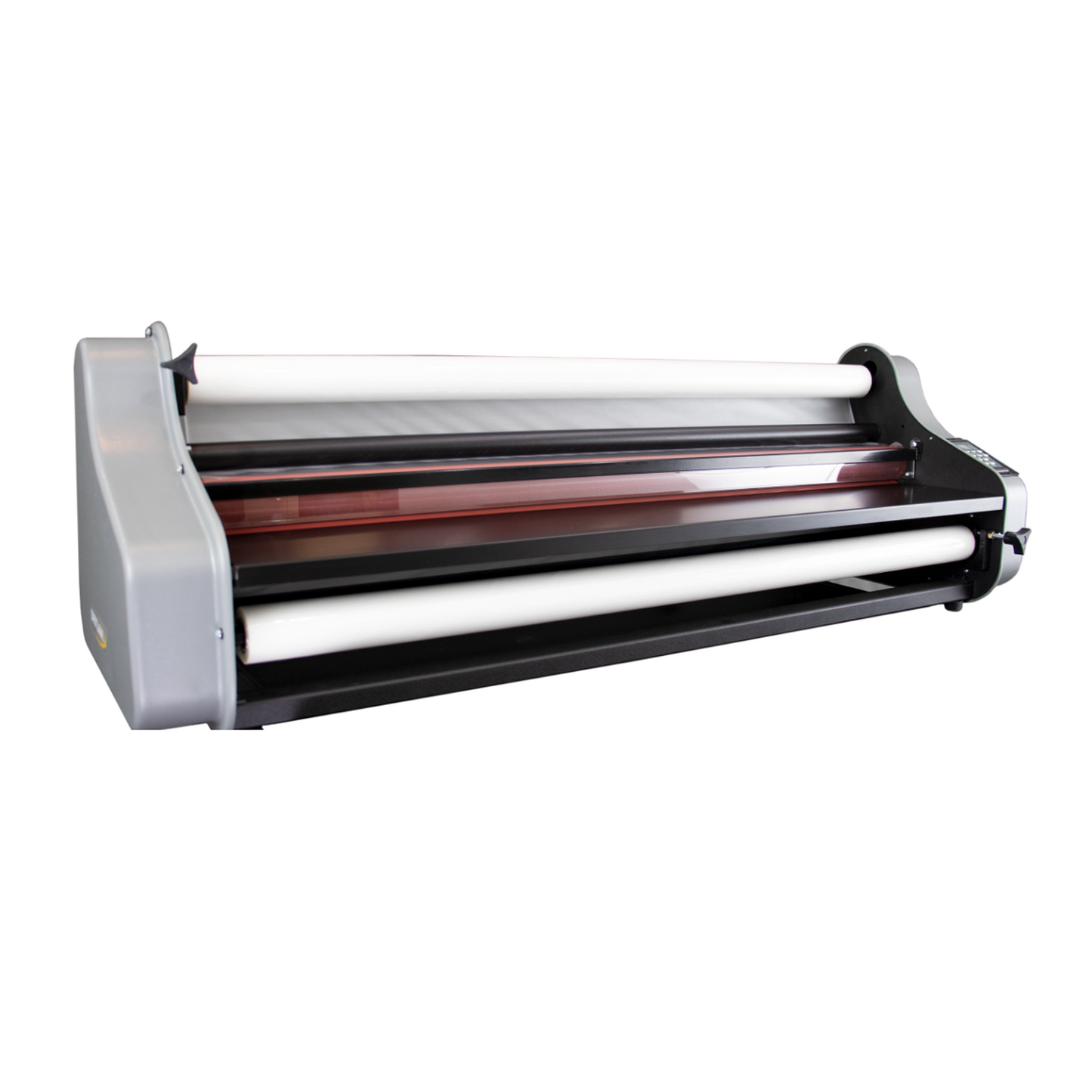

DryLam CL-40SD Standard 40” Laminator
DryLam CL-40SD Standard 40” Laminator

DryLam CL-40SD Standard 40” Laminator
DryLam CL-40SD Standard 40” Laminator

DryLam CL-40SD Standard 40” Laminator

  • SKU: MYLCL-40SD
Sale price
$3,686.18
Sale price
$3,686.18
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the DryLam CL-40SD Standard 40” Laminator

  • Max Width: 40"
  • Core Size: 1"
  • Max Speed: 3 ft/minute (Fixed)
  • Film Thickness: 1.5 - 3 mil
  • Temperature Range: 230 - 280°F

Features of the DryLam CL-40SD Standard 40” Laminator

  • Variable Temperature Control
  • 3/16” mounting capability
  • Safety Shield protects against accidental contact with heated rollers
  • Auto shut off after 2 hours
  • Digital LED display
  • 15 minute warm-up time
  • Rubber feet provide non-slip grip

Description of the DryLam CL-40SD Standard 40” Laminator

The Drylam Element Series CL-40SD Standard 40” Laminator from Martin Yale is a versatile, quality machine ideal for large, lightweight applications such as menus, signs, posters, certificates and more. Laminate documents up to 40 inches wide with film up to 3mil thick. Made in America, CL-40SD's user-friendly features enable users to achieve perfect results every time.

Operation of the CL-40SD is simple. Turn the machine on, and use the digital LCD display to set the heaters to the proper temperature. Once the laminator has warmed up (about 15 minutes), position your document on the feed table in the desired position. Press the "Run" button and the film will begin moving through the machine. Additional items may be fed in sequence; just be sure to leave room for trimming. After the last item has exited the rollers, press the "Stop" Button.

The CL-40SD features variable temperature control to achieve the best quality lamination for each project. This can be adjusted on the control panel. The built-in safety shield protects users from accidental contact with the heated rollers. The CL-40SD can also mount posters, signage, and more on foam core up to 3/16", for extra durability on your projects.

Product Downloads

Please select your preferred download file from below.

Description of the

Manufacturer Martin Yale
Model Number CL-40SD
Laminating Width 40"
Speed 3 feet/minute (Fixed)
Film Thickness 1.5 - 3 mil
Core Size 1"
Laminating Thickness 3/16"
Heat Type Heated Rollers
Temperature Range 230 - 280°F
Warm-Up Time 15 minutes
Voltage 1400 W
Power 120 V/60 Hz, 12 A
Weight 110 lbs
Dimensions 48.5" x 15.5" x 19"
Shipping Weight 119 lbs
Shipping Dimensions 54"L x 20" W x 19" H
