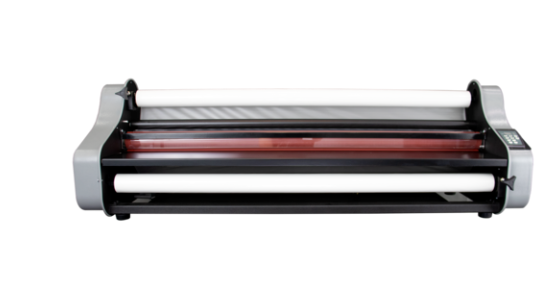

DryLam CL-40DX Deluxe 40” Laminator
DryLam CL-40DX Deluxe 40” Laminator

DryLam CL-40DX Deluxe 40” Laminator
DryLam CL-40DX Deluxe 40” Laminator

DryLam CL-40DX Deluxe 40” Laminator

  • SKU: MYLCL-40DX
Sale price
$4,016.72
Sale price
$4,016.72
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the DryLam CL-40DX Deluxe 40” Laminator

  • Max Width: 40"
  • Core Size: 1"
  • Max Speed: 9 ft/minute (Variable)
  • Film Thickness: 1.5 mil to 5 mil film
  • Temperature Range: 230 - 280°F

Features of the DryLam CL-40DX Deluxe 40” Laminator

  • Built-in horizontal trimmer
  • Variable Temperature Control
  • 3/16” mounting capability
  • Safety Shield protects against accidental contact with heated rollers
  • Auto shut off after 2 hours
  • Digital LED display
  • 15 minute warm-up time
  • Rubber feet provide non-slip grip

Description of the DryLam CL-40DX Deluxe 40” Laminator

Introducing the Drylam CL-40DX Deluxe 40” Laminator from Martin Yale. This high-quality, user friendly machine can take on projects up to 40" wide at a speed of 9 feet per minute. This Deluxe model also features a built-in horizontal trimmer for faster use. Ideal for large projects requiring extra durability, the CL-40DX laminator can handle signs, posters, placemats, artwork, and more!

The CL-40DX is fitted with many user-friendly features that make laminating a breeze. Simply flip on the power switch and wait for the machine to reach the optimum temperature (about 15 minutes). Different films may require unique temperature settings, so always check the specifications on your film for proper melting temperatures. Once the machine is warmed up, place your document on the feed table and press "Run". You can run as many items through as you like, leaving enough space for trimming. Use the rear horizontal trimmer to trim items as they exit the laminate.

The CL-40DX features variable temperature control to achieve the best quality lamination for each project. This can be adjusted on the LCD control panel. The built-in safety shield protects users from accidental contact with the heated rollers. The CL-40DX can also mount posters, signage, and more on foam core up to 3/16".

Product Downloads

Please select your preferred download file from below.

Manufacturer Martin Yale
Model Number CL-40DX
Laminating Width 40"
Speed 9 feet/minute (Variable)
Film Thickness 1.5 - 5 mil
Core Size 1"
Laminating Thickness 3/16"
Heat Type Heated Rollers
Temperature Range 230 - 280°F
Warm-Up Time 15 minutes
Voltage 1400 W
Power 120 V/60 Hz, 12 A
Weight 113 lbs
Dimensions 48.5" x 15.5" x 19"
Shipping Weight 122 lbs
Shipping Dimensions 54"L x 20" W x 19" H
