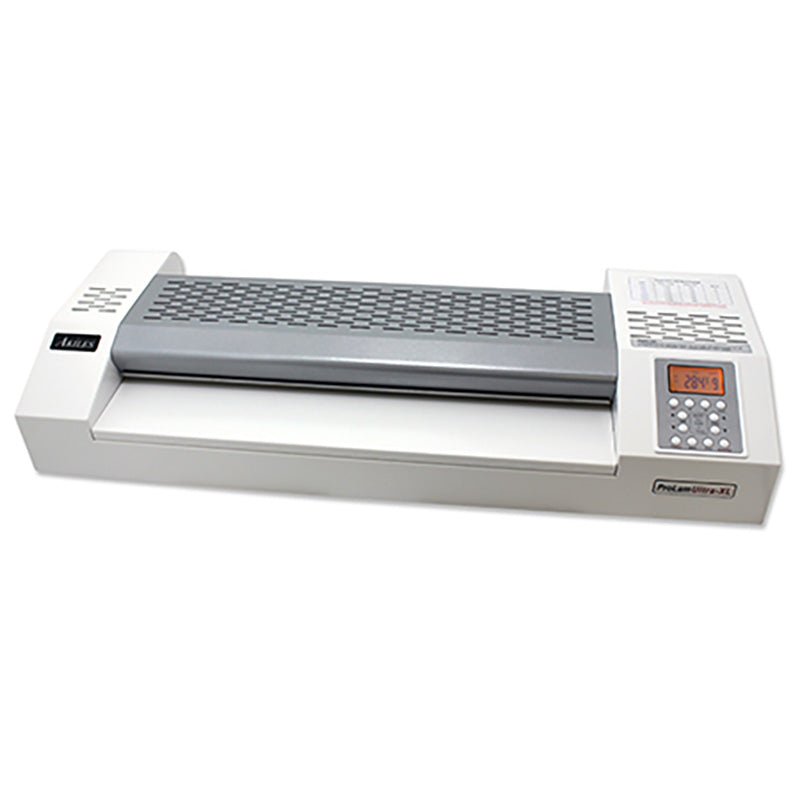

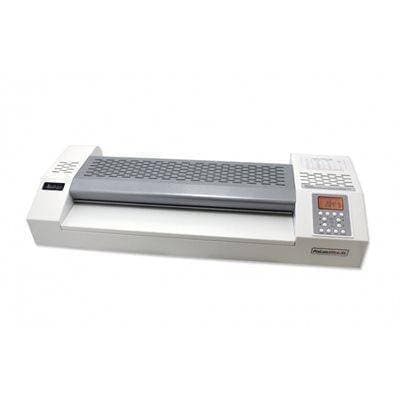

Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator
Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator Akiles
Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator Akiles
Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator
Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator Akiles
Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator Akiles

Akiles ProLam Ultra-XL Professional Heated Roller Pouch Laminator

  • SKU: AKIPLULTXL
  • GTIN/UPC: 9358476073877
  • Mfr. Part No.: APLULTRA-XL
$1,319.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

The Akiles ProLam Ultra-XL Laminator is a high-capacity, professional-grade machine designed to handle large-scale laminating needs with ease. It features advanced settings for temperature and speed control, accommodating a wide range of material types and thicknesses, up to 14 inches wide, making it ideal for commercial environments and large-format documents.

Basic Specs of the Akiles ProLam Ultra-XL Laminator

  • Throat Capacity: 18.9 inches (480 mm)
  • Max Laminating Speed: 47 inches per minute
  • Max Pouch Thickness: 14 mil (350 mic)
  • Max Laminating Thickness:: 1/8 inch (3 mm)
  • Heated Roller System: 6 rollers (4 hot, 2 cold)
  • Memory Settings: 2 programmable (temperature & speed
  • Speed Control: 9 settings
  • Operating Temperature: 23°F - 284°F

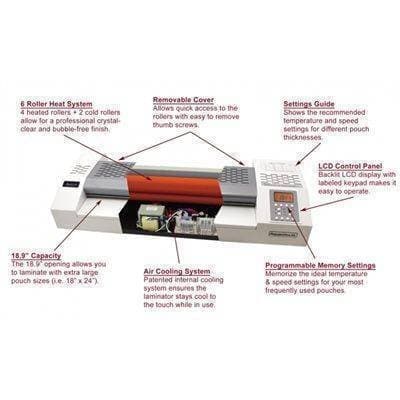

Features of the Akiles ProLam Ultra-XL Laminator

  • Programmable Memory Settings: Allows you to save the ideal temperature and speed for your most frequent projects.
  • 6 Roller Heat System: The 4 heated rollers + 2 cold rollers guarantee professional grade results and crystal clear lamination.
  • Auto Shutoff: Automatically cools and shuts down the machine after usage, to prolong the life of your laminator.
  • 13" and 18.9" Capacities: The large 13" (X6 / X10) or extra large 18.9" (XL) throat allows the machine to laminate a wide array of pouch sizes.
  • Removable Cover: Allows quick access to the roller with easy-to-remove thumb screws.
  • LCD Control Panel: Backlit LCD display with labeled keypad makes it easy to operate.

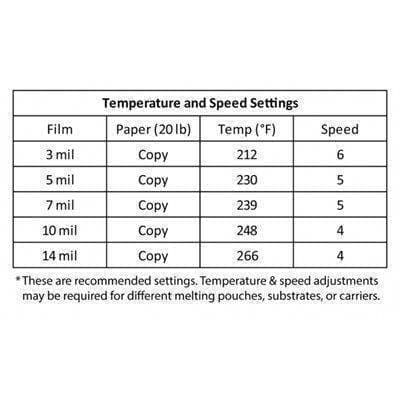

  • Setting Guide: Shows the recommend temperature and speed settings for different pouch thicknesses.
  • Air Cooling System: Patented internal cooling system ensures the laminator stays cool to the touch while in use.
  • Flex-Tite system ensures rollers apply even pressure

Description of the Akiles ProLam Ultra-XL Laminator

The biggest laminator from Akiles, the ProLam Ultra-XL has an incredible throat capacity of 18.9" and can laminate up to 47" per minute. Although it is the biggest, it still remains as a convenient desktop laminator that sit atop of any table or desk. The ProLam Ultra-XL does not require any trimming nor does it produce wasted film.

There are many advantages to pouch lamination, including the convenience of fitted film. Instead of having to cut away excess film (that is ultimately wasted), fit items to sized pouches. And a bigger desktop laminator simply offers a wider range of pouch sizes. The XL is the only Akiles laminator that can process items 18" wide (map size: 18" x24" ) as well as all smaller sizes. Because of its wide throat capacity, it's easier to laminate smaller items side by side for maximum productivity, saving time and effort. Easily fit items to pouches and never have to struggle with extra film again.

The ProLam Ultra-XL has 2 programmable memory settings that retain temperature and speed preferences for more frequently used settings. Use the setting guide to determine the best temperature and speed for different thicknesses for the most professional looking results. An LCD control panel displays settings controlled by easy to use buttons that change temperature, speed, and memory settings. It has a six-roller system (4 hot, 2 cold) that ensures a clear finish. The air cooling system stays cool to the touch so users are not injured by hot surfaces. And to maintain machine longevity, it engages auto-shut off after usage.

The ProLam Ultra XL is an ideal desktop laminator for a wide range of pouch sizes. Check out the X-6 and X-10 models for different speeds.

Manufacturer Name Akiles
Model Name ProLam Ultra-XL
Throat Capacity 18.9 inches (480 mm)
Max Laminating Speed 47 inches per minute
Max Pouch Thickness 14 mil (350 mic)
Max Laminating Thickness 1/8 inch (3 mm)
Heated Roller System 6 rollers (4 Hot / 2 Cold)
Memory Settings 2 Programmable (Temperature & Speed)
Speed Control 9 Settings
Operating Temperature 32°F - 284°F
Power Consumption 1200 W
Warranty 1 year
Weight 44 lbs. (20 kg)
Product Dimensions 27.25" x 10.x" x 5"
Shipping Weight 45 lbs.
