Akiles ProLam Ultra-X10 Professional Heated Roller Pouch Laminator

  • SKU: AKIPLULTX10
Sale price
Sale price
$1,499.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

The Akiles ProLam Ultra-X Series laminators possess superior quality and functionality combined with commercial grade design. Its multiple roller heat system produces professional, crystal-clear and bubble-free pouches every time.

Basic Specs of the Akiles ProLam Ultra-X10

  • Throat Capacity: 13" (330 mm)
  • Max Laminating Speed: 142" per minute
  • Max Pouch Thickness: 14 mil (350 mic)
  • Max Laminating Thickness: 1/8" (3 mm)
  • Heated Roller System: 6 Hot / 4 Cold
  • Memory Settings: 2 prgrammable (temp & speed)
  • Speed Control: 9 settings
  • Operating Temperature: 32 deg. F - 320 deg. F

Features of the Akiles ProLam Ultra-X10

  • Commercial Grade 10 Roller Laminator with 2 Programmable Memory Settings.
  • Programmable Memory Settings: Allows you to save the ideal temperature and speed for your most frequent projects.
  • Blazing Fast 10 Roller Heat System: The 10 roller heat system (X10 only) grants you one of the fastest laminating speeds in its class (i.e. 142″ per minute). 6 heated rollers + 2 cold rollers + 2 ejector rollers guarantees professional grade results at blazing fast speeds.
  • Auto Shutoff: Automatically cools and shuts down the machine after usage, to prolong the life of your laminator.
  • 13″ and 18.9″ Capacities: The large 13″ (X6 / X10) or extra large 18.9″ (XL) throat allows the machine to laminate a wide array of pouch sizes.
  • Removable Cover: Allows quick acccess to the roller with easy-to-remove thumb screws.
  • LCD Control Panel: Backlit LCD display with labeled keypad makes it easy to operate.

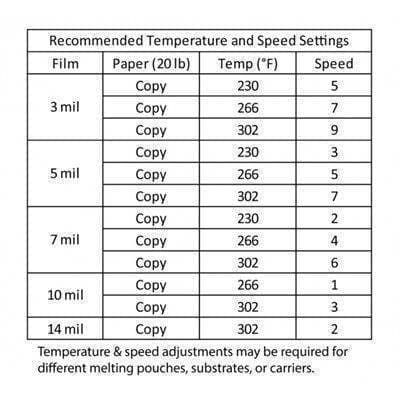

  • Setting Guide: Shows the recommend temperature and speed settings for different pouch thicknesses.
  • Air Cooling System: Patented internal cooling system ensures the laminator stays cool to the touch while in use.

Quick Overview

Basic Specs of the Akiles ProLam Ultra-X10 Laminator


  • Throat capacity: 13 inches
  • 10 rollers - 6 heated and 4 cold
  • Flex-Tite system ensures rollers apply even pressure
  • Max laminating speed: 142" per minute
  • Control panel with LCD display
  • Air cooling system keeps machine cool during use
  • 2 programmable memory settings
  • Setting guide for varying pouch thickness

Manufacturer Name Akiles
Weight 57
Height 5.75
Depth 14
Width 25.75
Shipping Weight 60.0000
