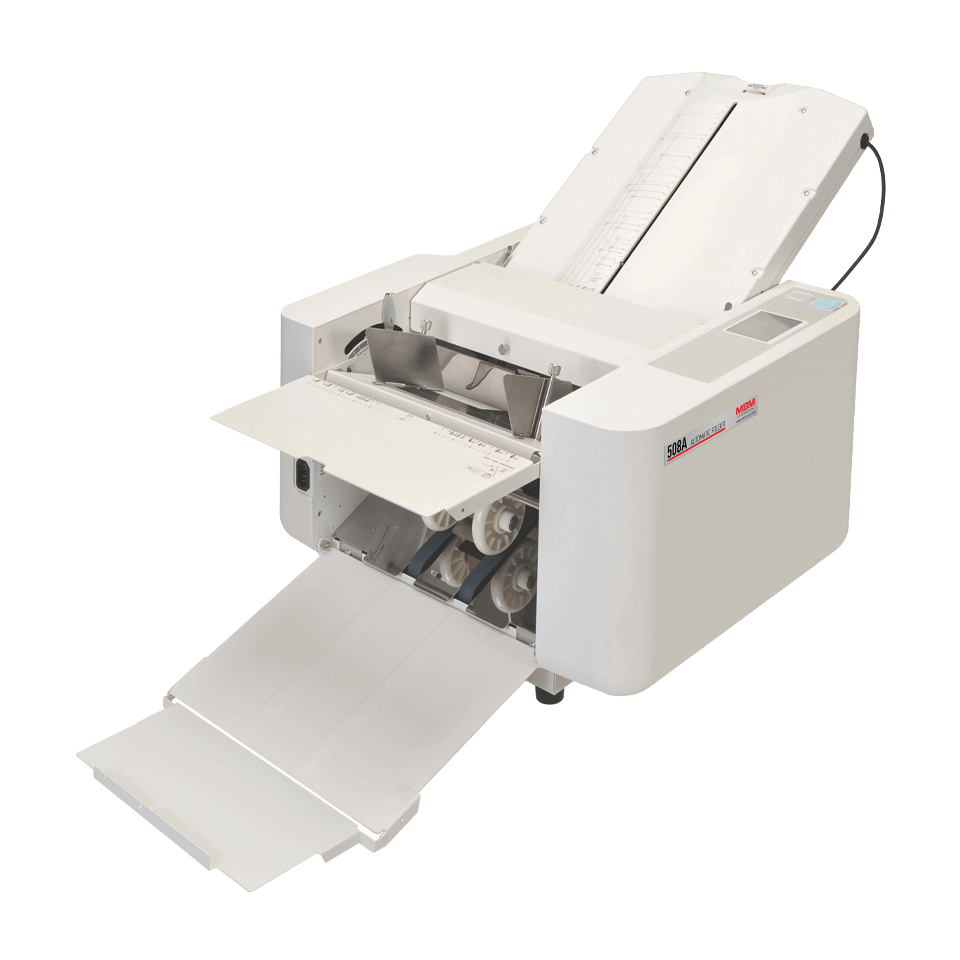

MBM 508A Friction-Feed Automatic Paper Folder


MBM 508A Friction-Feed Automatic Paper Folder

  • SKU: MBM508A-0605
  • Max Paper Weight: 290 gsm
  • Max Paper Size: 11.8" x 17"
  • Adjustment: Automatic
  • Feed Type: Friction
  • Fold Types: Letter, Half, Z-fold, Double Parallel, Gate, Cross
  • GTIN/UPC: 096224647534
  • Mfr. Part No.: FO0605
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

The MBM 508A Paper Folder is a reliable automatic folder that comes pre-programmed with 18 standard folds, and up to 24 custom jobs can be stored in memory.

Basic Specs for the MBM 508A Paper Folder

  • Sheet Capacity: Up to 500 sheets*
  • Paper Size: 3-1/2" x 5" to 11" x 17"
  • Paper Weight: 12 to 80 lbs.*
  • Speed: Up to 14,400 sheets per hour
  • Fold Types: Half, Letter, Z-fold, Double Parallel, Fold Out, Gate, and Cross

Features of the MBM 508A Paper Folder

  • Paper feed / separator pressure adjustment
  • Automatic feed table elevation and delivery roller setting
  • Automatic paper size recognition
  • 24 custom jobs can be stored in memory
  • Perforating / scoring / kiss cut units available by option

Video of the 508A Folding Machine by MBM

Overview of the MBM 508A Paper Folder

The MBM 508A is an automatic friction feed folder designed to make folding quick and easy. This model features plug and play set up. Simply, unbox the machine and attach the fold plates, plug in the machine and you're ready to insert your paper and start folding. One of our favorite features is its space saving storage option. With foldable exit and feed trays, the 508A will fit compactly in any size office. The feed tray has the ability to accommodate jobs up to 11.8" x 17", and can accept 500 sheets of 64 gsm in quantity. The full color LCD touchscreen control panel lets anyone in your office operate this machine effectively even without training. With nothing else available with this capability, the 508A is the best option for ease of use.

On the touchscreen, simply pick which of the 36 standard or 24 custom folds that you would like to complete, and the amount of materials you have to fold. When you push start, the fold plates automatically adjust to the correct measurements. There is no need for the user to adjust the fold plates. If preferred, the user can run the machine in test mode. Test mode will run two of your copies through, so you can make sure that the fold you have picked will be the perfect fit for your materials. In the case of slightly skewed folds, simply make the fine adjustments to the folding position via the LCD control panel, or manually by adjusting the wheel at the top of the fold plate. If you are running paper through the 508A that isn't a standard size, simply add the dimensions and the machine will calculate exactly where the fold plates need to be positioned to achieve the desired fold.

The batching feature is convenient for users who don't want to count and separate their materials after being folded. Double feed detection is very accurate and the machine will stop folding when two or more sheets were fed through at once. With the option to purchase multiple add-ons, the 508A is versatile in it's ability to perforate and score. Dimensions of the 508A measure 39.75" D x 21.5" W x 19.70" H, and the shipping weight equals 68 lbs.

MBM 508A Applications and Uses

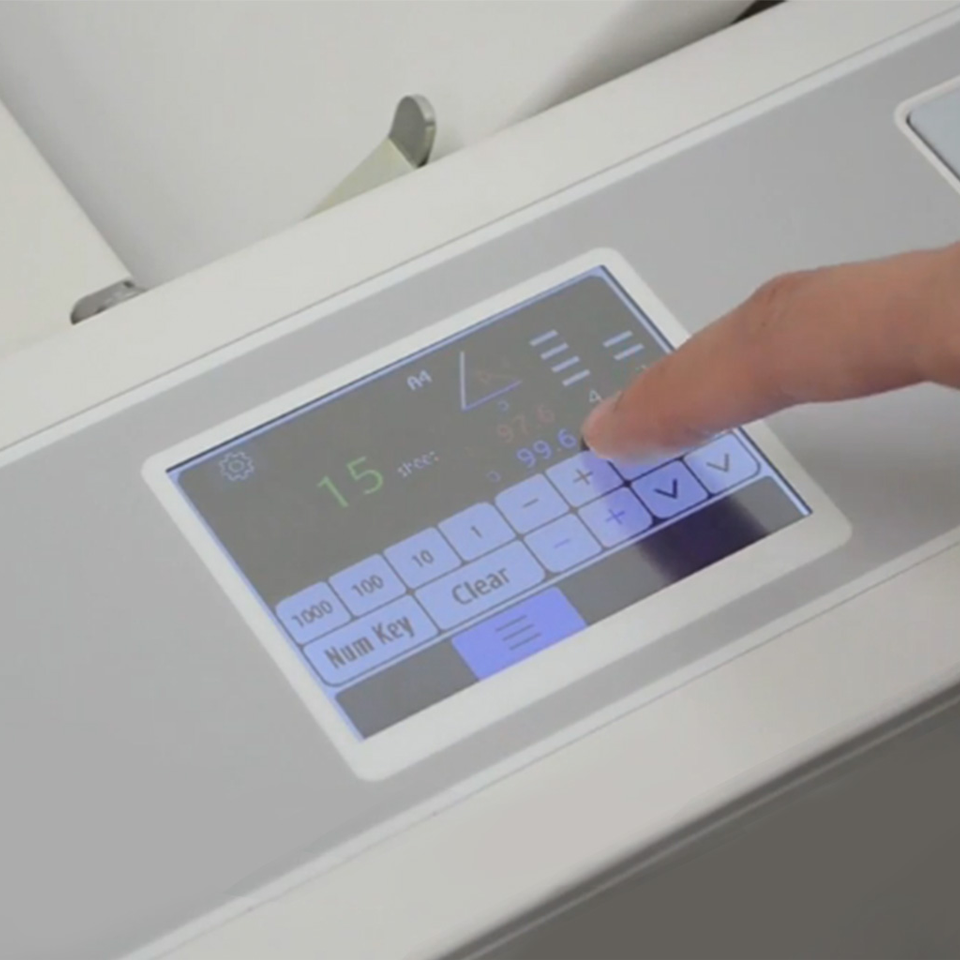

Touch screen
The LED touch screen sets up 36 standard folds automatically at the touch of a button. Up to 24 custom folds can be stored in memory.

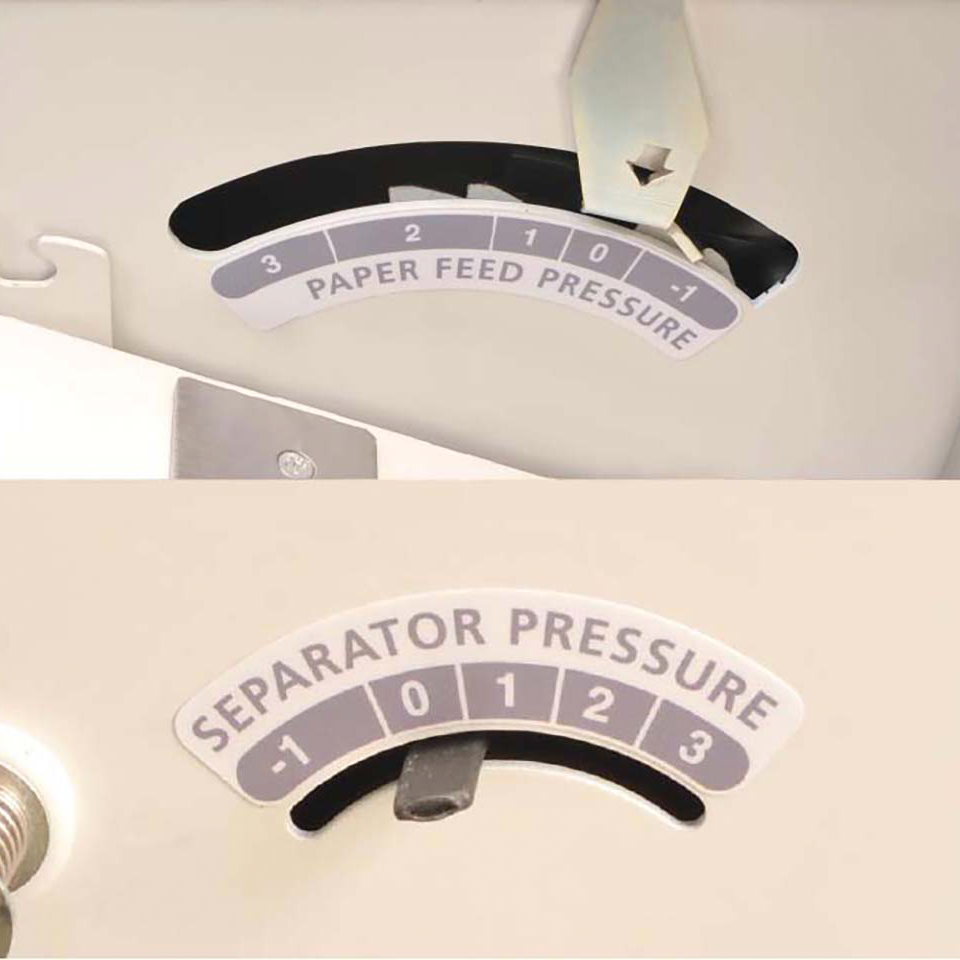

Paper Feed / Separator Pressure Adjustment
The paper feed pressure adjustment helps the machine to feed a wider range of stocks, and the separator pressure adjustment prevents double feeds.

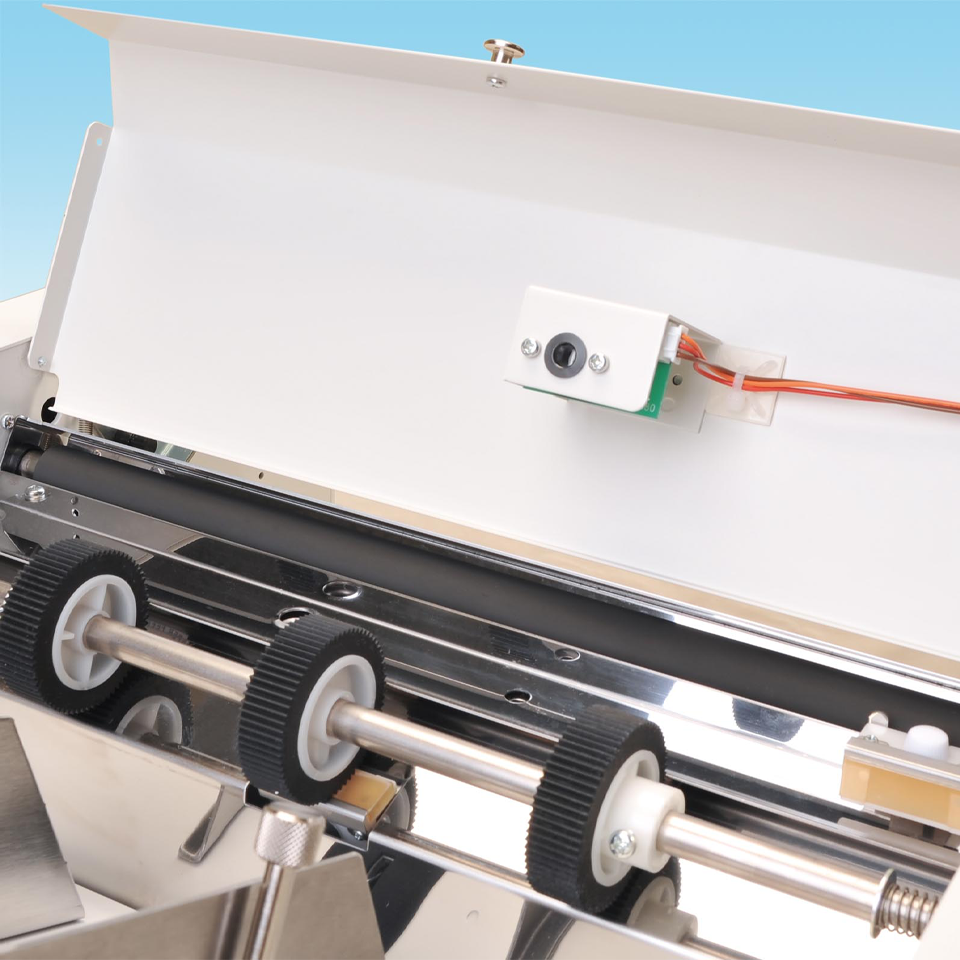

Double Feed Detection
The double feed detection sensor detects when 2 or more sheets are fed simultaneously and automatically ejects the papers without folding them.

Perforating / Scoring Unit

The 508A can be used as a perforator by replacing a perf unit to the folding table. It is also possible to add or replace perf/score/kiss cut heads on a unit to give multiple finishing styles in one pass.

Perforator / Scoring / Kiss Cut Heads
These heads hold rotary tools and can be mounted
on a perforation/scoring unit. Perf head with position adjustment, perf head with pressure adjustment, thin perf unit.

Rotary Tools
Micro perforation blade, perforation blade for thick paper, scoring blade, & kiss cut blade.


Manufacturer Name MBM
Model # 508A
Feed Type Friction-fed
Feed Tray Capacity Up to 500
Fold Speed Up to 14,400 sheets per hour
Fold Types Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Fold Out, Gate, Cross (requires 2 pass)
Pre-programmed Standard Folds 36 (stores 24 custom folds in memory)
Counter No
Accepted Paper Weights 12# bond to 80# bond
Weight 68 lbs.
Height 19.7"
Width 21.5"
Depth 39.75"
Voltage 115 Volts
