MBM 408A Programmable Tabletop Paper Folder
- SKU: MBM408A-0604
- Max Paper Weight: 115 g/m²
- Max Paper Size: 11" x 17"
- Adjustment: Automatic
- Feed Type: Friction
- Fold Types: Letter, Half, Z-fold, Double Parallel, Gate, Cross
- Sale price
- $4,999.00
- Sale price
- $4,999.00
- Unit price
- per
The MBM 408A automatic paper folder is the new and improved successor of the tried and true 407A. Some new additions in place give the 408A updated usability with more features. The machine comes from the factory with 36 pre-programmed folds and is an excellent addition to any office or mailroom.
Basic Specs of the MBM 408A Paper Folder
- Max Paper Weight: 115 g/m² / 30# Bond / 65# Index
- Paper Size: 3.5" x 5" to 11" x 17"
- Paper Type: Non or Semi-Gloss Paper Only, Call us for Glossy or Coated Stock
- Fold Types: Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Fold Out, Gate Fold, Cross Fold (requires 2-pass)
- Speed: 14,400 sheets/hour
- Duty Cycle: Commercial Grade
- Adjustment: Automatic
- Feed Type: Friction
- Multi-sheet: No
Features of the MBM 408A Paper Folder

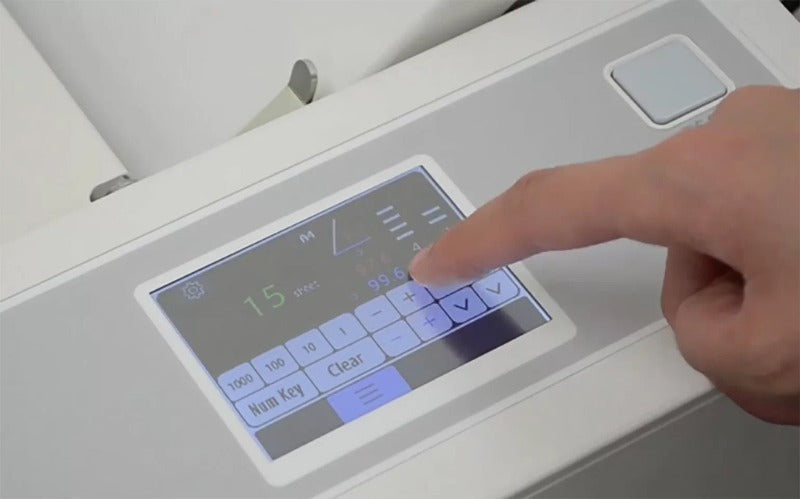

- Touch Screen: The LED touch screen sets up to 36 standard folds automatically at the touch of a button. Up to 12 custom folds can be stored in memory.
- Extended Exit Tray: An extra long exit tray ensures neat stacking of finished jobs.
- Double Feed Detection: senses when 2 or more sheets are fed simultaneously and ejects the papers without folding them.
- Features automatic folding position setting.
- Folding patterns can be stored and recalled via touchscreen.
- Fastest folding speed in its class.
- Perforating/Scoring/Slitting units available by option.
Fold Types for the MBM 408A Folder
There are seven different fold types available for the 408A:
(1) Letter fold (Tri-fold, C-fold),
(2) Half-fold (Single fold),
(3) Z-fold (Accordion, Zig Zag),
(4) Double-Parallel,
(5) Gate (Open Gate, Brochure),
(6) Engineering (Short Z, Fold Out, Half Accordion), and
(7) Cross Letter (Double Letter).
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Video of the 408A Folding Machine by MBM
Overview of the MBM 408A Automatic Paper Folder
The MBM 408A Automatic Paper Folder is the new and improved successor of the tried and true 407A. Some new additions in place give the 408A updated usability with more features.
- The machine comes from the factory with 36 pre-programmed folds.
- You have the ability to store 12 custom folds in the memory.
- The color LCD display panel located on the top of the machine allows you to keep track of folded materials with the four digit addition / subtraction digital counter.
- The test function allows you to run 2 sheets of paper for inspection.
- The 408A speed tops out at an impressive 14,000 sheets folded per hour!
- It is able to accommodate paper sizes as small as 3.5" x 5" and as large as 11" x 17".
The new extended exit tray allows your folded materials to neatly stack after running through the machine. This, combined with the automatic conveyor and self-setting exit wheels ensure smooth, neat ejection of your folded, printed materials. The 408A can take paper as light as 12 lb bond, and as heavy as 80 lb, with ease, so you can be sure that this folder will only pull one single sheet through each time. Should this paper folder happen to be loaded incorrectly, the machine will alert you via the display and audible alert messages.
Interested in optional scoring, micro-perforating or slitting units for this machine? Please give us a call at (800) 243-9226 and a folding machine specialist can assist.
Please select your preferred download file for the MBM 408A Paper Folder from the list below.
- MBM 408A Paper Folder User Manual (PDF file)
- MBM 408A Paper Folder Spec Sheet (PDF file)
For additional resources, please see:
- Our Paper Weight Conversion Chart for paper weight and paper stock information.
- Our Paper Folder Fold Type Guide to learn more about different fold types.
| Manufacturer Name | MBM |
|---|---|
| Model # | 408A |
| Feed Type | Friction-fed |
| Fold Adjustment Setting | Automatic fold adjustment |
| Feed Tray Capacity | Up to 500 |
| Fold Speed | 14,400 sheets/hour |
| Fold Types | Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Fold Out, Gate Fold, Cross Fold (requires 2-pass) |
| Pre-programmed Standard Folds | 36 |
| Accepted Paper Sizes | 3 1/2" x 5" to 11" x 17" |
| Accepted Paper Weights | 12# to 80# |
| Weight | 65 lbs. |
| Height | 19.70" |
| Width | 21.5" |
| Depth | 39.75" |
| Electrical Requirements | 115 V , 60 Hz |
| Warranty |
