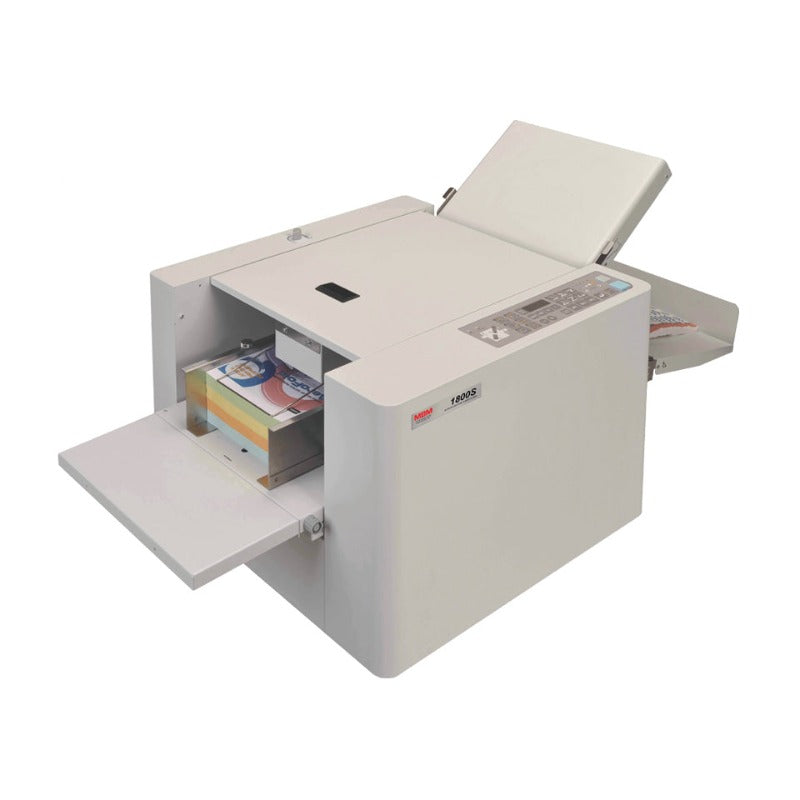

MBM 1800S Automatic Paper Folder

MBM 1800S Automatic Paper Folder


  • Max Paper Weight: 217 g/m²  /  58# Bond  /  120# Index    Click for Complete Conversion Chart
  • Max Paper Size: 13" x 19"
  • Min Paper Size: 4.5" x 8.25"
  • Paper Type: Various stocks including glossy, and digitally printed
  • Speed: 18,000 sheets/hour
  • Duty Cycle: Commercial Grade
  • Adjustment: Automatic
  • Feed type: Air
  • Multi-sheet: No


  • Memory Keys: LED control panels let users set up to 6 standard folds with ease. A total of 30 custom folds can be stored in the memory.

  • Belt Feed System: A belt fed, air suction system on this folder allows the user to feed coated stock through with ease.

  • Variable Function: This folder comes complete with an air pressure knob that allows the user to adjust the level of air suction depending in the weight of the paper.

Regular price
Sale price
Unit price

SKU: MBM1800S-0623 ISBN: 096224645707
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the MBM 1800S Automatic Paper Folder

The newest folder from MBM is the 1800S, a new and improved version of the 1500S with added features and specs. The 1800S is capable of processing 18,000 sheets
per hour into a half, letter, Z, double parallel, fold-out, or gate fold. It has the same ability as the 1500S to fold paper as small as 4.5" x 8.25" and as large as 13" x 19" it can also fold paper between 16 and 80 lbs.

One of the amazing new features that the 1800S boasts is the ultrasonic double feed sensor. This allows the machine to detect double feeds on black, white, printed, transparent, or a mixture of colored sheets. Also new to the machine is a removable feed roller, adjustable folding roller pressure and spring loaded feed angle adjustment dial, which allows for easy cleaning and maintenance. This folder also features a top cover that opens and closes in two easy steps. This lets the operator reach the air adjustment knob without disruption when the top cover is open.

The 1800S comes pre-programmed with the six different fold types previously mentioned. In addition, it comes with the ability to store 30 custom folds in its memory. The top of the machine features a control panel with an LED screen that displays a four digit counter with batch and total functions. The test button located on the machine will run two pieces of paper through so you can make adjustments as needed. Unlike the 1500S this folder also has an extended exit tray with automatic conveyor belt and self-setting exit rollers so your folded materials can be neatly ejected and stacked. At dimensions 24" D x 49" W x 23" H, and a weight of 189 lbs., this folding machine can be easily stored in your office as necessary. Ideal for digitally printed and coated stocks, the 1800S is the folder that you need!

Interested in optional mirco-perforator and scorer add-ons? Reach out to us!

Video of the MBM 1800S Automatic Paper Folder

Manufacturer Name MBM
Model # 1800S
Feed Type Air-Fed
Sheets per Hour 18,000
Paper Size, inches 4.5 x 8.25 to 13 x 19
Fold Types Half Fold, Letter Fold, Z Fold, Double Parallel Fold, Fold Out, Gate Fold
Paper Weight, Pounds 16 to 80
Sheet Capacity 800
Electrical Requirements 120 V , 60 Hz
Product Dimensions (D x W x H) 24" x 49" x 23"
Accepted Paper Weights 16# bond to 80# text (60gsm to 217gsm)
Shipping Weight   189 lbs.
