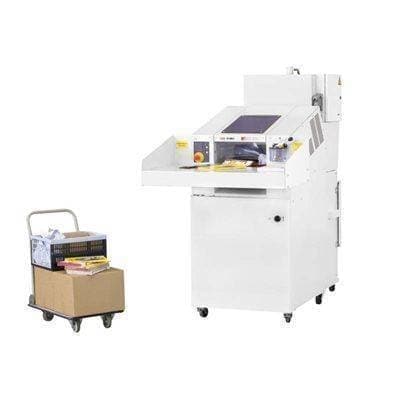

HSM SP 4040 V 1/4" 3x400V Shredder Baler Level 2/P-2
Basic Specs of the HSM SP 4040V Shredder Baler
- Shred Size: 0.23"
- Throat Width: 16.85"
- Capacity: Up to 120 sheets *
- Speed: 8.66 inches per second
- Power: 400V/50Hz/6200W
- Pressing Power: 44kN
- Shipping Wt: 1625lbs
- Dimensions: 78" H x 43" W x 80" D
- Loading Aperture Dimensions: 20" W x 12.5" H
- Baler Dimensions: 15.7" L x 23.6" W x 19.7" H
- Phase: 3
Features of the HSM SP 4040V Shredder Baler
- Multifunctional keypad control for constant operation and reverse as well as automatic reverse
- Integrated, automatic oiler for cutting unit
- Emergency stop-rail in front of loading table for more user safety
- Photoelectric cell for automatic control of the pressing process
- Baler with loading aperture/inspection flap for non-confidential documents or cardboard
- Manual 3-fold bale strapping with continuous polyester tape
The HSM SP 4040 V Shredder Baler combination system offers shredding and baling solutions for your professional and industrial data destruction.
Video Demo of the HSM SP 4040V 1/4" 3x400 Shredder Baler
Description of the HSM SP 4040 V 1/4" 3x400 Shredder Baler
The sophisticated HSM SP 4040V shredder baler offers level 2 security and user-friendly operation. Equipped with an integrated, manual oiler, the HSM SP 4040V promises durability and an extended life through constant shredder maintenance. Load your materials onto the large table and watch as the powerful electric conveyor belt pulls these items into the shredder for destruction. This level 2 shredder reduces your documents, paper books, three-ring binders, and cardboard into 1/4" inches wide strips. But that's not all. The HSM 4040V will also shred your chip cards, CDs, disks, and an assortment of similar materials. Thanks to the sturdy gear motor with chain drive, the maximum throughput capacity is increased. With a cutting capacity of 130 sheets, the HSM 4040 powers through 8.27 inches per second. As your documents are shred, strips fall directly into the baling compartment, where the high pressing power activates to produce 15.74" L x 19.68" W x 23.62" H bales (400,00 mm x 600 mm x 500 mm). These bales are evacuated into either bags or boxes, which can then be removed with the handy trolley. This monster of a machine weighs an incredible 1625lbs (737 kg). However, feel free to relocate this machine as many times as needed! The heavy duty castors allow for mobility throughout your warehouse or production area.
* Please note, capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
| Manufacturer Name | HSM |
|---|---|
| Throat Size/Feed Opening | 17'' |
| Shred Speed | 42 ft/min |
| Shred Size | 14" |
| Security Level | P-2 |
| Cut Type | Strip Cut |
| Sheet Capacity | Up to 130 sheets |
| NSA Evaluated | N/A |
| Shreds Credit Cards? | Yes |
| Shreds Paper Clips? | Yes |
| Shreds Staples? | Yes |
| Peak HP | 4000 W |
| Disclosures | Capacity varies with grain, size, quality & paper weight and sufficient power supply. ** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used. |
| Continuous Motor | Yes |
| Model # | 4040v |
| Weight | 1625 lbs |
| Height | 78" |
| Width | 43" |
| Depth | 80" |
| Voltage | Power: 208V, 3 Ph |
| Warranty | |
| Shipping Weight | 1625.0000 |
