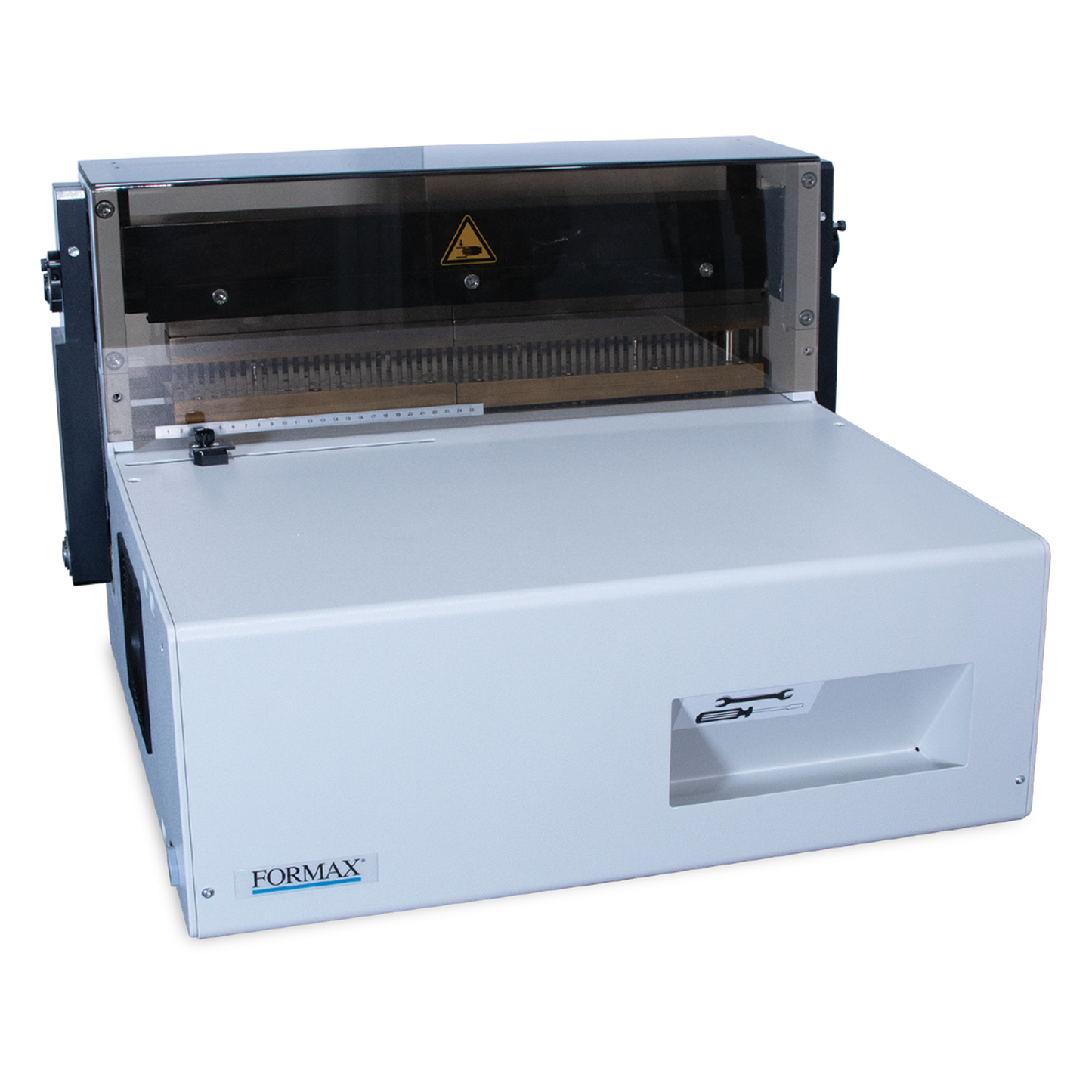

Formax Punch200 Heavy-Duty Electric Punching System
- SKU: BESPUNCH200
- Mfr. Part No.: Punch200
Description of the Formax Punch200 Heavy-Duty Electric Punching System

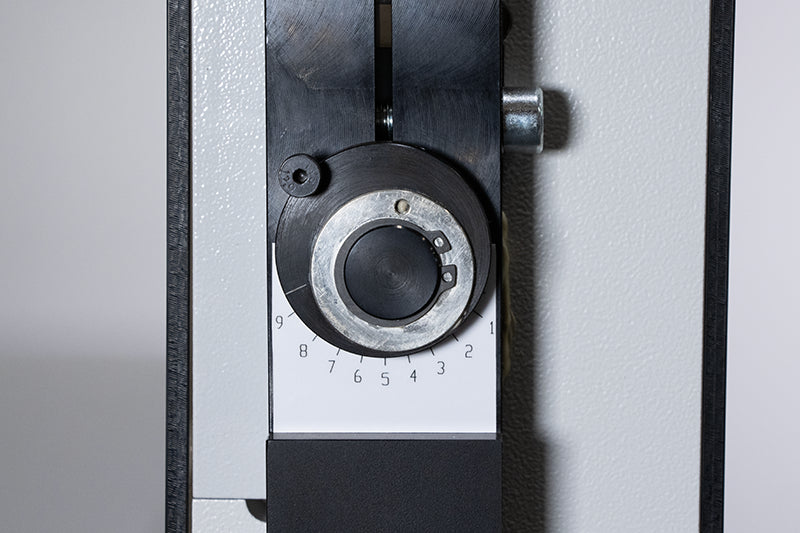

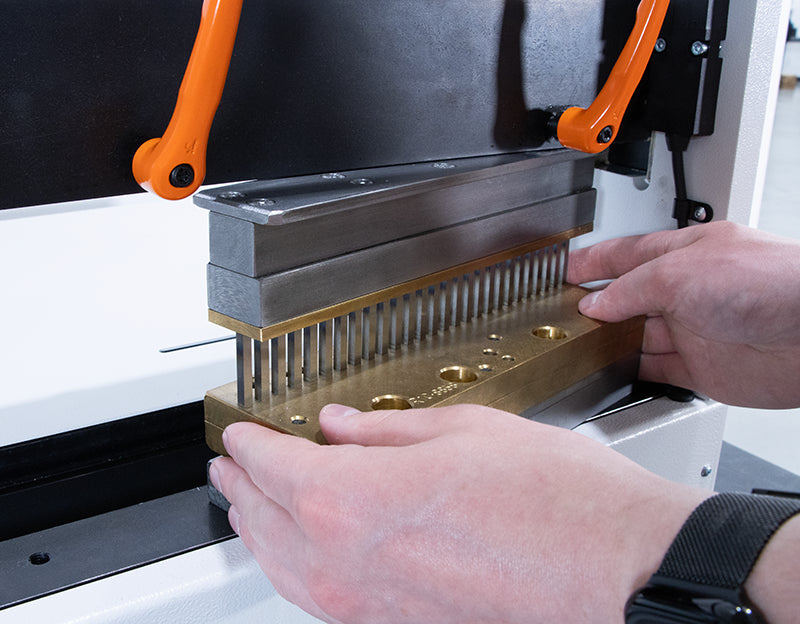

The Formax Punch 200 Electric Punching Machine provides heavy-duty punching for production environments. It accommodates a wide of variety of interchangeable dies for ReadyWire, plastic comb, and spiral coil, which can be changed in just minutes. It has the capacity to handle dies which have been resharpened, utilizing its eccentric shaft adjustment.

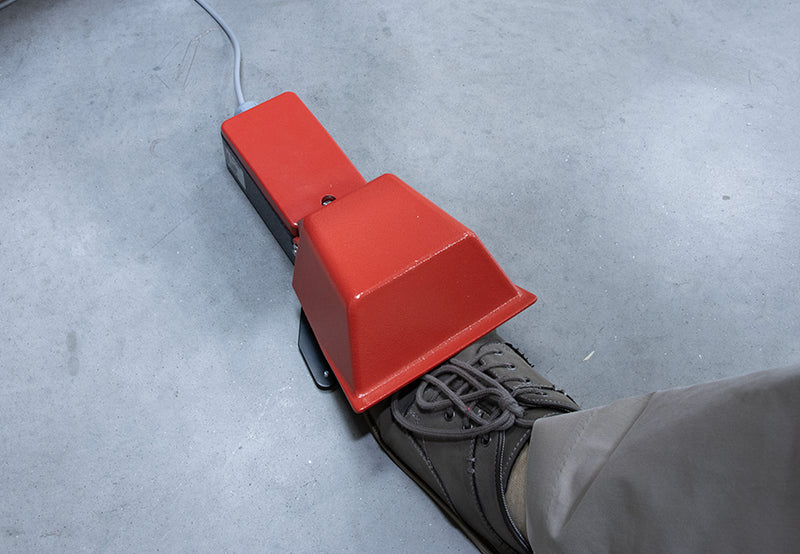

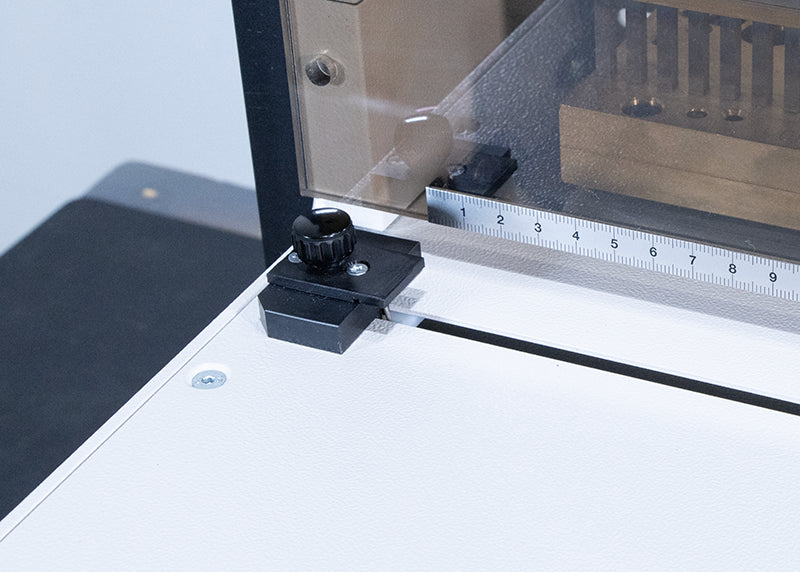

Heavy-duty disengageable punch pins allow for flexibility when working with various paper sizes. Simply choose between foot pedal or micro switch activation, and punch sheet stacks up to 4mm thick. The plexiglas cover helps to ensure operator safety.
Pair the Formax Punch200 with the Wire200 or Wire300 Binding Systems for efficient, production level punching and binding projects.
Punching Die Options:- Letter Size 3:1, 4.0 x 4.0 mm, two-part die, standard die, with thumb cut fixed back-stop
- Letter Size 3:1, 4.5 mm round holes, two-part-die, standard die, with thumb cut fixed back-stop
- Letter Size 2:1 pitch, 5.5 x 3.5 mm, two-part die, standard die, with thumb cut fixed back-stop
- Letter Size 2:1 pitch, 6.0 x 6.0 mm, standard die, fixed back-stop
- Letter Size 2:1 pitch, 6.5 mm round holes, standard die, fixed back-stop
- Letter Size 2:1 pitch, 6.0 x 6.0 mm, standard die, fixed back-stop
- Letter Size 2:1 pitch, 6.5 mm round holes, standard die, fixed back-stop
Product Downloads
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| SKU | BESPUNCH200 |
| Punching Operation | Micro switch sensor or foot pedal |
| Mechanical Cycle | Up to 3,000/hr |
| Minimum Punching Width | 2.4” (60mm) with foot pedal 4.1” (105mm) with micro switch |
| Maximum Punching Width | Up to 19.7” (500mm) |
| Max Punching Thickness | Up to .15” (4mm) |
| Minimum Unpunched Length | 2.75” (70mm) with foot pedal 4.3” (110mm) with micro switch |
| Maximum Unpunched Length | Up to 31.5” (800mm) |
| Punch Dies Available | 3:1, 2:1 ReadyWire, plastic comb, spiral coil |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | No |
| Power | 208V, 3 Phase, 20A, 50/60Hz |
| Dimensions | 26.4” L x 17.7” D x 15.7” H (670 x 450 x 400mm) |
| Weight | 247 lbs. (112kg) |
