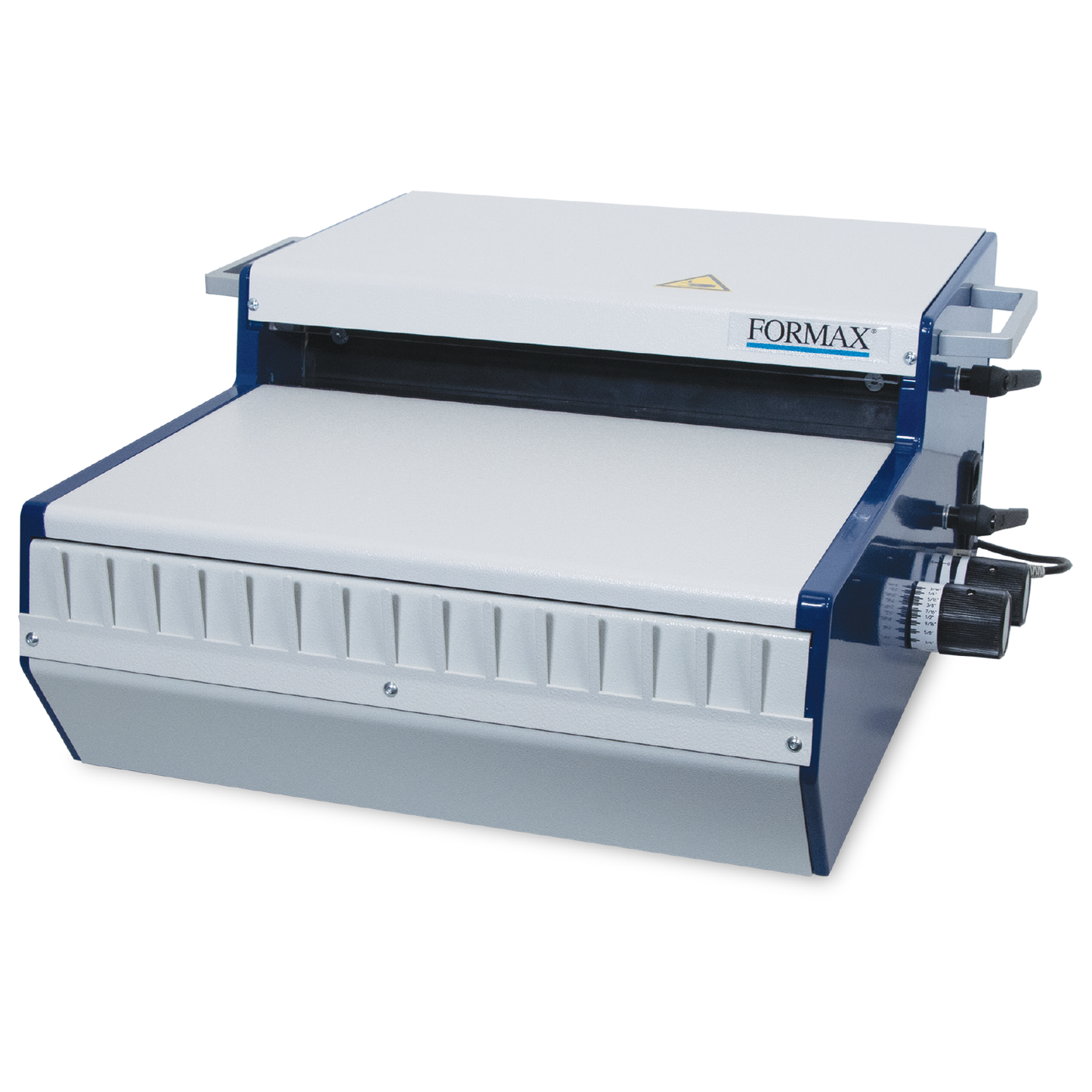

Formax Wire200 Electric Wire Binding System
- SKU: BESWIRE200
- Mfr. Part No.: Wire200
Description of the Formax Wire200 Electric Wire Binding System
The Formax Wire200 Electric Binding System provides fast, effortless binding with consistent professional results.

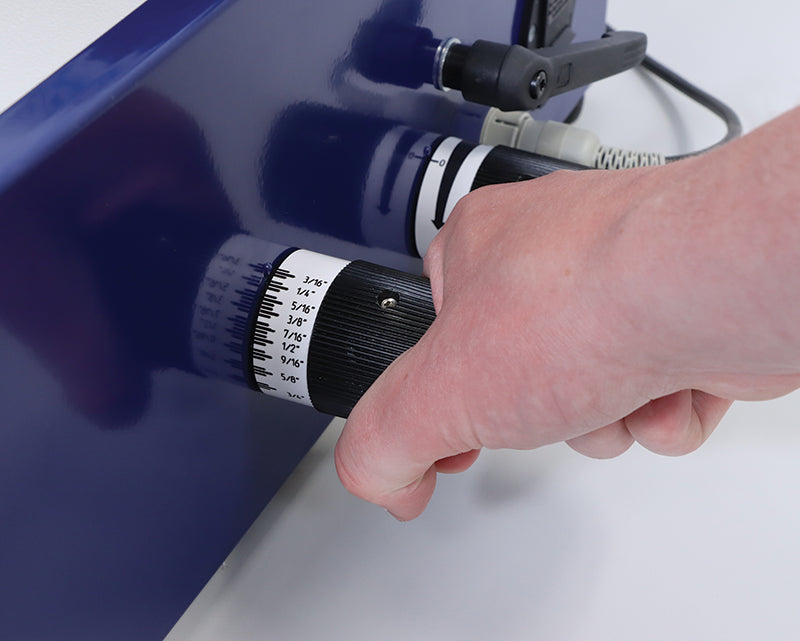

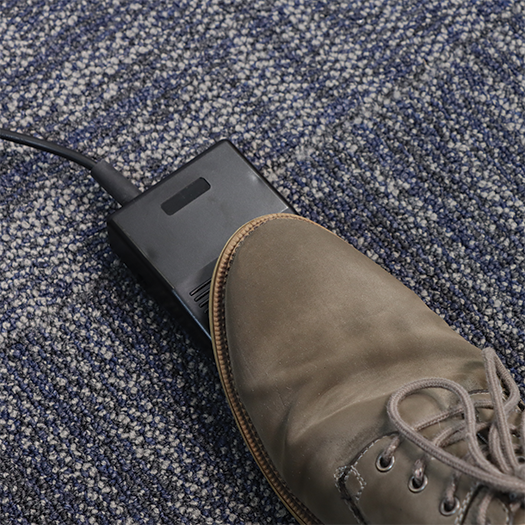

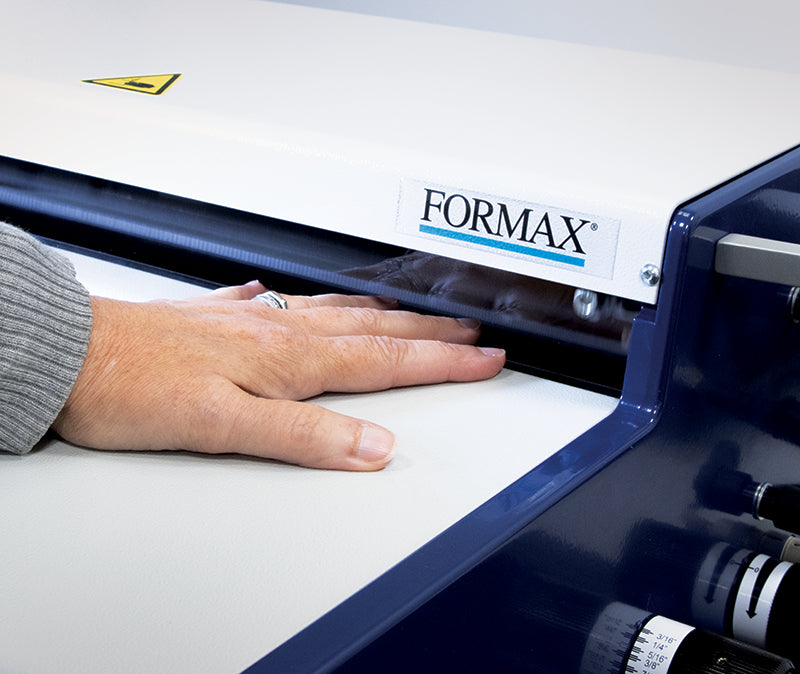

Designed for easy operation, it features an intuitive wire diameter adjustment knob for fast setup, an integrated easy-loading wire holder for improved workflow, convenient foot pedal operation, and an automatic shut-off switch to enhance operator safety.
The Wire200 can bind up to 400 books per hour, up to 340 sheets, with ReadyWire diameters up to 1 1/2”. It handles paper stacks up to 14″ wide. The parallel adjustment knob ensures a precise bind every time, from the first document to the last.

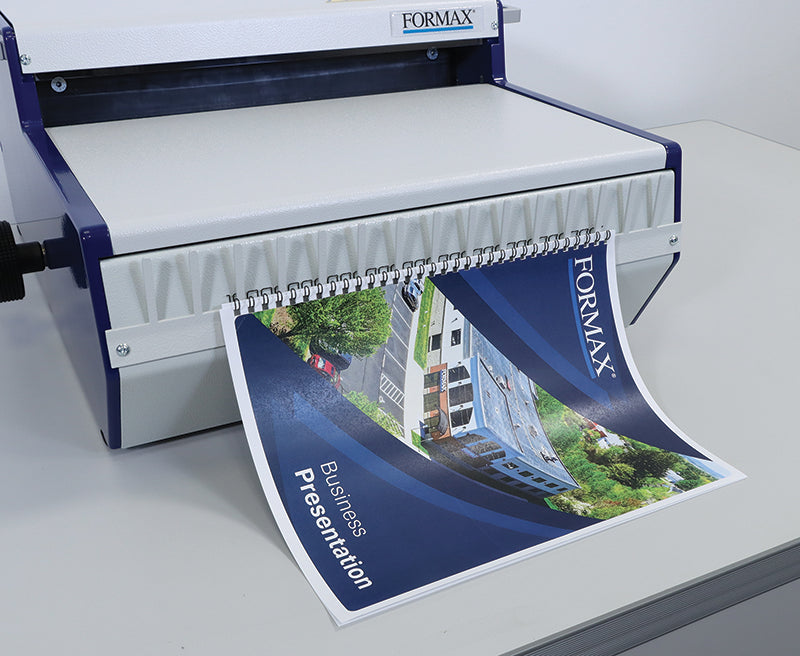

Wire-bound documents open a full 360 degrees, laying flat for easier reading, writing, scanning, and presentations, and the double-loop wire binding keeps pages secure for a polished appearance through years of use.
Product Downloads
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| SKU | BESWIRE200 |
| Binding Type | Wire |
| Binding Operation | Electric/foot pedal |
| Pitch | 2:1, 3:1, 4:1 |
| Binding Capacity | Up to 340 sheets |
| Binding Thickness | .03 - 1.3” (1-34mm) |
| Minimum Binding Width | .39” (10mm) |
| Maximum Binding Width | 14” (360mm) |
| Minimum Unbound Edge | 2.5” (65mm) |
| Maximum Unbound Edge | 23.6” (600mm) |
| Wire Binding Diameter | 1/4” to 1 1/2” |
| Binding Speed | Up to 400 books/hr |
| Power | 115V, 60Hz, 250W |
| Dimensions | 21” W x 21” D x 9.25” H |
| Weight | 84 lbs. |
