Formax FD Atlas C350
Features of the Formax FD Atlas C350
- Fully automatic
- Crease & fold in a single pass
- Dynamic creasing matrix
- 7" color touchscreen
- Up to 6,000 sheets per hour
- Top-suction vacuum feed
- Sheets up to 51" long

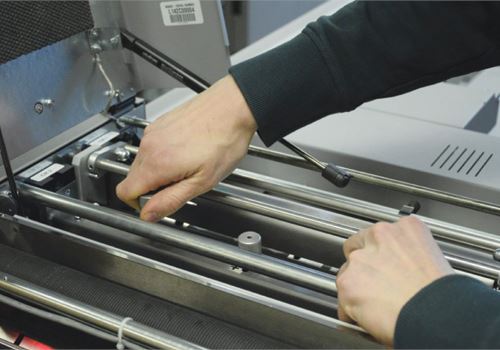

- Quick release creasing blade kits
"The Atlas C350 replaces the discontinued Atlas C300, with a combination of familiar features and expanded capabilities. Like its predecessor, the Atlas C350 utilizes the same dynamic creasing and folding technology to professionally finish digitally printed sheets. And like the C150, it utilizes a top-fed vacuum infeed table which can handle media stacks up to 7.9"" high.
New features include bold, intuitive graphics on its color touchscreen, an extended infeed table for sheets up to 51"" long, the ability to add a second creasing or perforating blade to the system, and the capacity to create full-width cross perforation. j
A new two-in-one output configuration includes a fully-automatic belt stacker for folded sheets, and a catch tray capable of handling creased sheets up to 35"" long.
Fully automatic setup allows users to input the sheet length, weight and fold type using the color touchscreen, then the Atlas C350 automatically calculates and sets the crease positions.
"
| Speed: | Up to 6,000 sheets per hour, half fold* (8.5" x 11.5") |
| Up to 7,500 sheets per hour, single crease only | |
| Sheet Size: | Max: 27.6" x 15.2" (51" x 15.2" w/infeed extension table) |
| Min: | 8.3" x 3.7" |
| Paper Thickness: | Max: 0.0157" (400gsm) Min: 0.0035" (75gsm) |
| Creases per Sheet: | Up to 30 |
| Min. Repeat Crease Distance: | 0.004" |
| Programmable Jobs: | Unlimited |
| Max. Loading Capacity: | Up to 7.9" |
| Outfeed: | Belt conveyor stacker, catch tray |
| Dimensions: | 84" L x 29" W x 55" H (118" L with infeed extension) |
| Weight: | 689 lbs. |
| Power: | 100-240VAC, 8-4A, 50/60 Hz |
