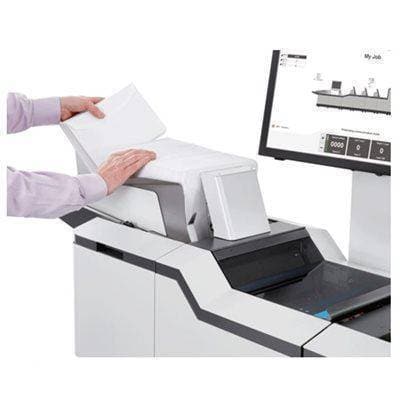

Formax FD 7104 Standard 3 Folder Inserter
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax

Formax FD 7104 Standard 3 Folder Inserter
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax
Formax FD 7104 Standard 3 Inserters Formax

Formax FD 7104 Standard 3

  • SKU: BESFD7104STD3
Sale price
$56,995.00
Sale price
$56,995.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Basic Specs of the Formax FD 7104 Standard 3 Folder Inserter

  • Speed: Up to 4,500 / 5,500* per hour (1-sheet, letter fold)
  • Accumulation Speed: Up to 6,900 / 9,400* per hour (multiple sheets)
  • Feeders: Up to 17
  • Tower Feeder Capacity: Three 500-sheet feeders
  • Envelope Feeder Capacity: Up to 800
  • Duty Cycle: Up to 180,000 pieces per month
  • Document Size: 5.5” W x 5.5” L to 9” W x 16” L
  • Envelope Size: #10, 6” x 9”

Features of the Formax FD 7104 Standard 3 Folder Inserter

  • Standard 3 includes 3 - 500 sheet feeders.
  • Modular design - add up to 8 modules with up to 17 feed stations.
  • Unlimited programmable jobs.
  • Folds up to 8 sheets at a time.
  • Fold Types: C, Half, Z, Double Parallel and no fold.
  • 22" Color touchscreen interface.
  • Accumulator and Divert Deck - included.
  • Ergonomic cabinets with casters - included.

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.


Description of the Formax FD 7104 Standard 3 Folder Inserter

The Formax 7104 Series Inserters take flexibility and productivity to new heights. With 3 configurations, and an optional Productivity Package, this system can meet the challenge. The modular design offers up to 8 modules with up to 17 feed stations, with high-capacity feeders, and a standard capacity of up to 1,500 sheets. Each system is available with these standard feeder combinations: one 1,000-sheet feeder, one 500-sheet and one 1,000-sheet feeder, or three 500-sheet feeders. The top-loading envelope hopper holds up to 800 #10 envelopes.

A 22” color touchscreen interface guides operators through job programming and functions, and with unlimited programmable jobs, it’s even easier to run recurring or frequently processed applications. The 7104 Series has optional Intelligent Feeders with the ability to read 1 and 2-track OMR, 1D Barcodes and 2D Data Matrix, with codes located anywhere on the document, front or back. Mechanical Double Document Detectors ensure the correct documents get into each envelope, allowing for the automatic insertion of multiple-page documents, which eliminates the tedious task of manually collating and inserting.

The 7104 Series processes up to 4,500 envelopes per hour (up to 5,500/hour with the optional Productivity Package), producing up to 180,000 finished pieces per month. The robust folding system folds up to 8 sheets at a time. Feeders can also be linked with a Cascade Mode to maximize output by connecting feeders filled with the same document. When one feeder empties, the next automatically starts feeding. Optional Insert Feeders are top loading making it easy to reload on-the-fly, and provide the ability to insert a variety of media, including glossy booklets.

Standard features include a high-speed/capacity Accumulator and Divert Deck, ergonomically-designed Custom Cabinets on casters for convenient moveable storage, and a High-Capacity 4-foot Output Conveyor which can be used straight-on or at a 90 degree angle to the system.

Manufacturer Name Formax
Manufacturer Model Number 7104 Standard 3
Speed (1-sheet, letter fold) Up to 4,500 / 5,500* per hour
Accumulation Speed (multiple sheets) Up to 6,900 / 9,400* per hour
Feeders Up to 17
Tower Feeder Capacity Three 500-sheet feeders
Envelope Feeder Capacity Up to 800
Duty Cycle Up to 180,000 pieces per month
Document Size 5.5” W x 5.5” L to 9” W x 16” L
Envelope Size #10, 6” x 9”
Insert/Booklet Thickness: Up to 5/32” (4mm)
Dimensions Tower Feeder w/Inserter Base: 76.5” L x 36” H x 18.5” D
Weight Tower Feeder w/Inserter Base: Approx. 400 lbs.
Voltage 115 V, 50/60 Hz, 10Amp
Safety Certifications UL, CE, FCC certified
