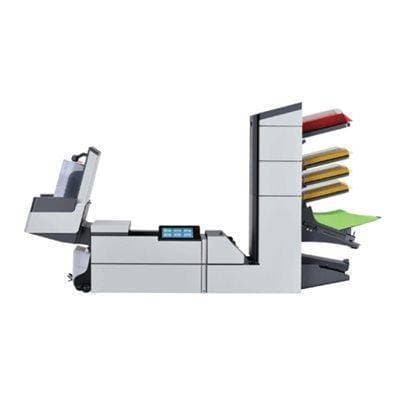

Formax FD 6406-Standard 6 Inserter
Formax FD 6406-Standard 6 Inserter Formax

Formax FD 6406-Standard 6 Inserter
Formax FD 6406-Standard 6 Inserter Formax

Formax FD 6406-Standard 6 Inserter

  • SKU: BESFD6406STD6
  • GTIN/UPC: 096224658509
Sale price
$44,395.00
Sale price
$44,395.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Basic Specs of the Formax FD 6406-Standard 6 Inserter

  • Speed: Up to 4,000 pieces per hour
  • Duty Cycle: 60,000 pieces/month
  • Feeder Capacity: Up to 325 sheets, 20# paper (each feeder) / 725 (Production Feeder)
  • Envelope Hopper Capacity: Up to 325 envelopes, top-loading
  • Vertical Output Stacker: Up to 500 filled envelopes, reverse stacking output
  • Side Exit Tray (optional): Up to 500 filled envelopes

Features of the Formax FD 6406-Standard 6 Inserter

  • Full-Glass Color Touchscreen: 7” touchscreen display features graphic icons for simple, intuitive use.
  • Modular Flexibility: Configurations are available with 2-6 fully-automatic feed stations.
  • AutoSet: Load envelopes and documents and the 6406 Series will adjust all settings automatically.
  • 50 Programmable Jobs: Program frequently used jobs for quick and easy operation.
  • Cascade Mode: Feeders can be linked for continuous operation, when one feeder empties, another takes over, allowing operators to refill as needed until the job is complete.
  • Eco Mode: Saves energy by automatically switching into standby mode after one hour of inactivity.
  • Double Document Detection: Electromechanical detectors located at each feeder and the insertion area operate with any print density, paper color or thickness, to provide exceptional security.

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Description of the Formax FD-6406 Standard 6 Inserter

The versatile 6406 Series is available with 2 to 6 stations for flexibility, and includes a variety of input configurations: a high-capacity document feeder for up to 725 sheets, 1 or 2 high-capacity production feeders, standard and special feeders, and short feed trays.

User-friendly features include the 7” color touchscreen control panel with graphics-based display and automatic paper and envelope presence sensors, a vertical output stacker which holds up to 500 filled envelopes, and a top-loading envelope hopper with a capacity of up to 325 envelopes which can be refilled on-the-fly. AutoSet allows operators to load envelopes and documents, then adjusts all settings automatically with the ability to store up to 50 programmed jobs for instant recall. Its powerful folding capacity folds up to 10 sheets (half fold) or up to 8 sheets (tri-fold) at one time, plus Cascade Mode allows users to link feeders for continuous operation: when one feeder empties, another takes over.

Double document detectors located at each feeder and the insertion area ensure no double documents are fed into the system. The 6406 Series utilizes electromechanical detectors which can operate with any print density, paper color, thickness or paper dust. Documents requiring inspection can be delivered automatically to the divert station. The 6406 Series also offers energy savings with its auto standby mode, which goes into effect after 1 hour of idle time.

An optional CIS Scanner reads OMR, 1D and 2D Barcodes, QR codes, and OCR printed anywhere on the page, which provides the ability to automatically insert multiple-page documents, eliminating the tedious task of manually collating and inserting. Additional options include high-capacity production feeders, a thin booklet feeder, short feed trays for small inserts or BREs, side exit trays, custom cabinets and 402 Series Joggers.

Manufacturer Name Formax
Feeder Capacity Up to 325 sheets, 20# paper (each feeder) / 725 (Production Feeder)
Envelope Hopper Capacity Up to 325 envelopes, top-loading
Vertical Output Stacker Up to 500 filled envelopes, reverse stacking output
Side Exit Tray (optional) Up to 500 filled envelopes
Speed Up to 4,000 pieces per hour, #10 envelopes
Duty Cycle Up to 60,000 pieces per month
Programmable Jobs Up to 50
Paper Size 3.5” - 14” L x 5.1” - 9” W
Envelope Size 6.3” - 9.7” L x 3.5” - 6.3” W
Dimensions 65” L x 32” H x 16.5” D (four-station models)
Weight Approx. 242 lbs (four-station)
Voltage 100 Volts AC 50/60Hz
Safety Certifications UL, CE approved
