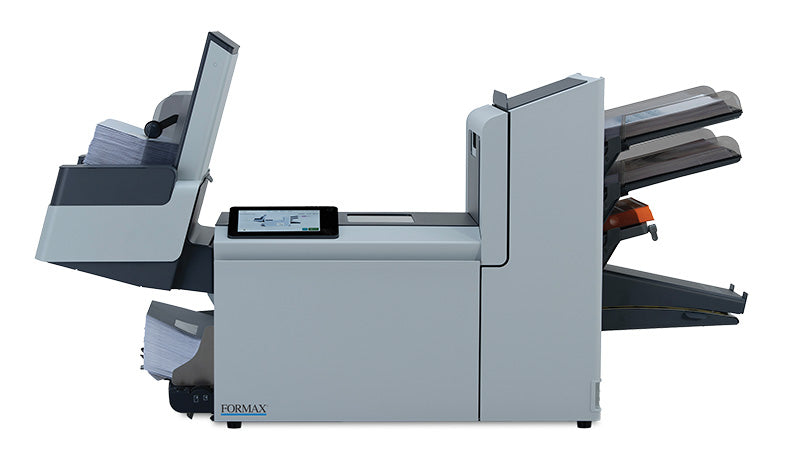

Formax FD 6212-Advanced 2 Folder Inserter

Basic Specs of the Formax FD 6212-Advanced 2 Folder Inserter

• Speed: Up to 2,500 pieces per hour
• Duty Cycle: Up to 20,000 pieces per month
• Feeder Capacity: Up to 325 sheets each, 20# bond
• Fold Capacity: Up to 8 sheets half fold / up to 5 sheets C/ZFold
• Envelope Hopper: Up to 150 envelopes, top-loading
• Sheet Size: 3.5”- 14” H x 5” - 9” W (90-356 x 130-230mm)
• Programmable Jobs: Up to 50
• Envelope Size: 3.5” - 6.4” H x 6.3” - 9.8” W ** (90-162 x 160-248mm)
• Weight (2 stations): 160 lbs (72kg)

Features of the Formax FD 6212-Advanced 2 Folder Inserter

• Graphics-Based Color Touchscreen: Quick and easy job setup, with paper and envelope presence sensors.
• High-Capacity Vertical Stacker: Holds up to 500 filled envelopes in a neat, sequential order.
• Easy-Load Document Feeders: Various configurations from high capacity to short feed trays.
• Visible Insert Area: Allows users to see the insert area without stopping or opening the inserter.
• Optional Full-Page CIS Scanner: Reads 1D, 2D & QR BCR codes printed horizontally or vertically.

Description of the Formax FD 6212-Advanced 2 Folder Inserter

The Formax FD 6212-Advanced 2 Folder Inserter combines advanced folding and inserting technology with user-friendly operation to streamline mailing tasks in offices and small mailrooms. This Advanced 2 configuration comes with two sheet feeders and one insert/BRE feeder, making it ideal for organizations that need to process multi-page mailings, business reply envelopes, and more complex mailing applications. Whether you're preparing invoices, statements, notices, or business correspondence, the FD 6212-Advanced 2 helps improve productivity while reducing the time and effort required for manual envelope stuffing.

Capable of processing up to 2,500 envelopes per hour with a monthly duty cycle of up to 20,000 pieces, the FD 6212-Advanced 2 delivers the performance of a larger inserter in a compact design. A 7-inch full-color touchscreen and AutoSet technology simplify setup by automatically measuring paper lengths, envelope sizes, and fold lengths, while up to 50 programmable jobs can be stored for recurring mailings. The machine also features a powerful folding system capable of folding up to eight sheets at once, a high-capacity vertical stacker that holds up to 500 finished envelopes, automatic paper and envelope sensors, a top-loading envelope hopper, and a visible insert area that allows operators to monitor the feed path without stopping production.

Optional CIS scanning technology reads 1D barcodes, 2D barcodes, and QR codes, while optional accessories such as short feed trays, a production feeder, a catch tray, and side exit trays provide additional flexibility. Offering the power and reliability of a larger inserter with the ease of operation required for office environments, the Formax FD 6212-Advanced 2 Folder Inserter is an excellent solution for organizations looking to automate and streamline high-volume mailing workflows.
