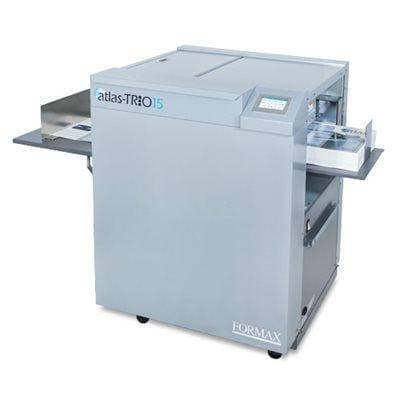

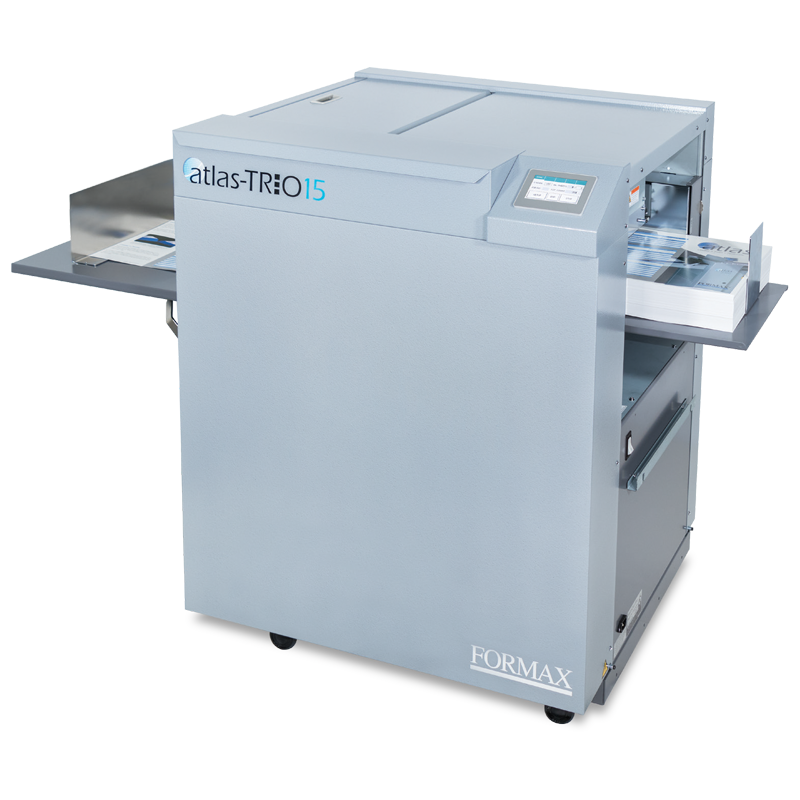

Formax Atlas-TRIO15 Slitter / Cutter / Creaser

  • GTIN/UPC: 096224649026
  • Mfr. Part No.: Atlas-TRIO15
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Features of the Formax Atlas-TRIO15

  • 4" Color touchscreen control panel
  • Three job modes: Preset, manual and flex
  • Up to 150 programmable jobs
  • Slit, cut, and crease in one pass
  • Sheet size: 8.2" - 13"W x 19"L (up to 27.5" L w/ optional long sheet kit)
  • Two Slitting Guides for business card, postcards and bleed trim jobs
  • High speed creasing - up to 5,000 sheets per hour
  • High speed cutting / slitting - up to 8 - 12"x18" sheets per minute
  • Upper belt tri-suction feeding system
  • Double feed detection

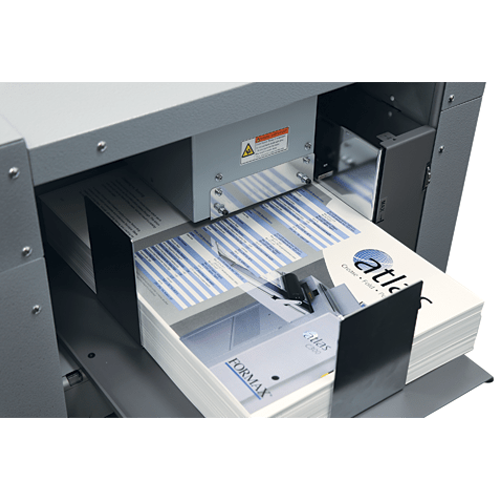

The Formax Atlas-TRIO15 allows users to slit, cut, crease and even fold in a single pass. Its production speeds vary based on media size and finished output: up to 250 business cards in under 2 minutes, single-crease jobs up to 5,000/hour. The Atlas-TRIO15 uses an upper-belt tri-suction feeding system, and a feed table which automatically elevates, giving it the ability to process sheets up to 13" W x 27.5" L, in weights from 120-350 gsm. The 4" touchscreen control panel provides three modes for various job requirements: Preset, for the most common formats and sizes, Manual, which modifies preset jobs, and Flex mode for the greatest customization. It also stores up to 150 custom jobs, for quick and easy recall.

Standard features include double-feed detection, cut-mark registration, side alignment guide, skew adjustment and two standard slitting guides. Custom slitting guides are also available. Plus, the ATLAS-TRIO-15 can be combined with the optional AC-10 Folder which will easily transform large sheets into finished, six-panel brochures. This powerful combination enables users to cut the lead and trailing edges, bleed trim the top and bottom, crease and fold, for stunning professional output. The ATLAS-TRIO-15 is ideal for high-speed creasing and production of a wide range of jobs including business cards, postcards, brochures, booklet covers, greeting cards and more. High-speed output, user friendly controls and the ability to handle large media sizes make the ATLAS-TRIO15 a great complement to your everyday digital print finishing jobs.

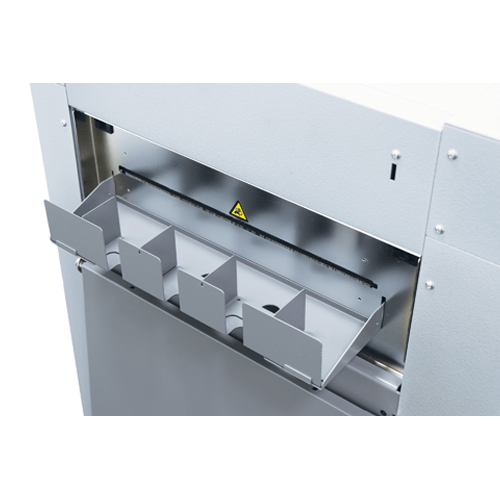

24-up business cards, Up to 8 sheets/minute

4-up postcards (12" x 18"), Up to 10 sheets/minute

2 cut / 2 slit / 1 crease (8.5" x 11"), Up to 15 sheets/minute

1 crease (8.5" x 11"), Up to 5,000 sheets/hour

Feed Capacity: Pile height Up to 4"

Paper Sizes: 8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)

Paper Weight: 32# bond - 130# cover (120-350 gsm)

Programmable jobs: Up to 150

Dimensions: 33" W x 31" D x 43" H (footprint: 63" W x 31" D)

Warranty: 90 day warranty on parts and labor

Weight: 440 lbs.

Power: 120 VAC
