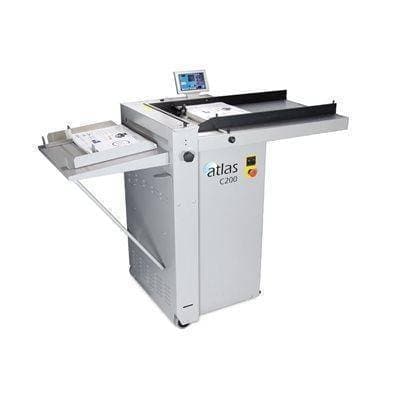

Formax Atlas C200 Automatic Creaser (Discontinued)

  • SKU: BESFDATLASC200
Sale price
Limited availability.
Sale price
$19,850.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the Formax Atlas C200

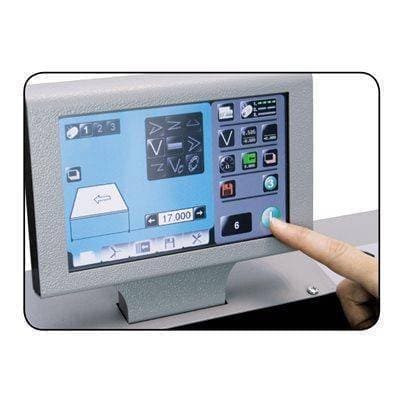

  • 7" Color touchscreen control panel
  • Fully automatic setup
  • Speed: up to 8,500 sheets per hour
  • Maximum sheet size:  19.6" x 27.5"
  • Unlimited programmable jobs
  • Perforating capabilities come standard

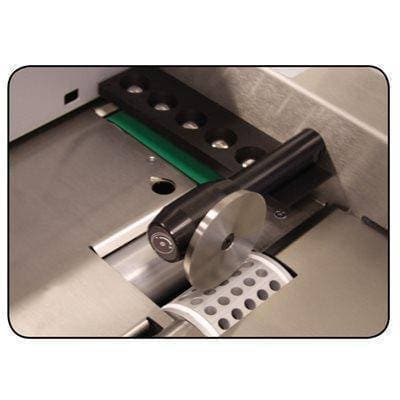

  • Bottom-suction air feed system
  • 6 preprogammed settings
  • Optional extension table, slitting and perforating wheels.

Product Details

  • Color touchscreen control panel.
  • Fully automatic setup.
  • Creases up to 8,500 sheets per hour.
  • Up to 16 creases per sheet.
  • Accommodates sheets up to 27.5" x 19.6".
  • Unlimited programmable jobs. I
  • ncludes a single perforating kit.
  • Options: extension tray, slitting and perforating wheels, narrow creasing matrix.
  • Lifetime guaranteed creaser matrix.
This Formax Atlas C200 High-Speed Automatic Creaser is a fully-automatic, user-friendly creaser that will solve the problem of cracking in toner-based digital prints. Utilizing a unique creasing matrix, it compresses paper fibers instead of cutting them, virtually eliminating cracks on a creased or folded edge. With its graphics-based 7" touchscreen control panel, operators can easily set-up and save jobs in just minutes or use one of the six pre-programmed settings. The C200 automatically calculates the crease positions based on paper size and sets them accordingly. The powerful bottom-suction air-feed system allows for continuous loading of sheets, which increases productivity while maintaining accuracy, even with heavier stocks. This automatic creaser offers variable speed control to accommodate a wide variety of sheet sizes and thicknesses. The Atlas C200 is capable on producing up to 16 creases per sheet, can process up to 8,500 (8.5” x 11”) letter-size sheets or up to 11,000 (6.5” x 8.5”) sheets per hour, and can accommodate sheets up to 27.5" x 19.6" in size. Plus, this Formax Atlas C200 High-Speed Automatic Creaser has a standard perforating capabilities with a wide range of perf wheels to suit many different applications.

Speed: Up to 8,500 sheets per hour * (8.5" x 11")

Up to 11,000 sheets per hour * (6.5" x 8.5")

Sheet Size: Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)

Min: 8.2" x 5.5"

Paper Thickness: Max: 0.015" (approx. 400gsm)

Min: 0.004" (approx. 75gsm)

Creases per Sheet: Up to 16

Minimum Repeat Crease Distance: 0.03" (depending on paper weight)

Minimum Crease Distance from Leading Edge: 0.09"

Minimum Crease Distance from Trailing Edge: 1.37"

Programmable Jobs: Unlimited

Dimensions: 59" L x 26.8" W x 48" H

Weight: 344 lb

Power: 240V 50/60hz

Warranty: 90 day limited warranty on parts, excluding wearables and labor
