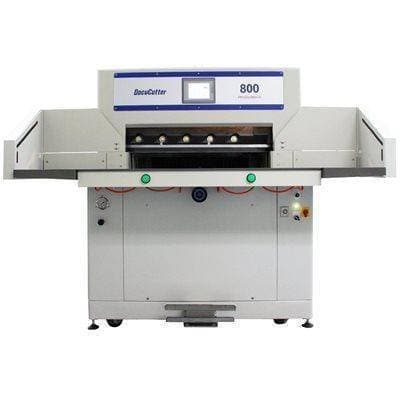

Duplo 800PA Paper Cutter (Discontinued)


Duplo 800PA Paper Cutter (Discontinued)

  • SKU: DUP800PA
Sale price
Limited availability.
Sale price
Unit price

This product has been discontinued by the manufacturer. The new model that we recommend is the Duplo HC-550i Hydraulic Cutter. If you have any questions, please click the Request a Quote button below, or call us at (800) 243-9226.

Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the 800PA Duplo Cutter

  • Cutting width: 31.4 inches
  • Cutting height: 4 inches
  • Cutting length behind blade (back table): 31.7 inches
  • Minimum cut sizes (with false clamp): 2 inches
  • Adjustable hydraulic clamp; foot pedal
  • Table with air cushion
  • Clamp pressure from 300 to 2,500 psi
  • Touch screen LCD panel
  • Illuminated cutting line
  • Power-saving, automatic timer
  • Dial for easy adjustment to the cutting blade stroke
  • Extra cutting knife and cutting sticks supplied
  • Safety light beams
  • Side table

Video Demo of the Duplo 800PA Hydraulic Cutter

Description of the Duplo 800PA Hydraulic Cutter

The Duplo 800PA paper cutter is similar to the 660P but is a step up in power and cutting capability. With its cutting width of more than 31 inches and sufficient space behind the blade (almost 38 inches), this automatic cutter is capable of handling large sheets of paper. Because it is a hydraulic machine, user fatigue is diminished and output is maximized. A good 4 inches of paper can be cut at once, so cutting projects are completed in no time. The low-friction alloy table with air cushioning allows for easy paper movement and requires little maintenance. This air-cushion table distinguishes the 800PA from the 660P and makes it more suited for processing large stacks of paper which can be heavy and unwieldy.

Equipped with an illuminated cutting line, large touch screen LCD panel and side table, this machine makes cutting a breeze. The hydraulic soft clamp, activated by an easily accessible foot pedal, provides pressure that prevents paper movement during cutting. This increases accuracy and ensures that all cuts will be perfectly precise, saving you from costly reprinting. The safety beams enable injury-free operation, instantly stopping the cutting blade if an object comes too close. With its powerful hydraulic system and blade stroke adjustment knob for extra accuracy to achieve your desired cut, the Duplo 800PA cutter ensures the highest level of precision and complete satisfaction.


  • Awesome cutting capacity to accommodate very large paper sizes; cutting width more than 31 inches and generous amount of room behind blade (nearly 38 inches).
  • Phenomenal memory capacity and automation; ability to store 500 jobs, 18 cuts.
  • Incredibly powerful and long-lasting.

Manufacturer Name Duplo
Max Cutting Width 31.4''
Cutting Height 4''
Cutting Mode Hydraulic
Cutting Length Behind Blade 31.7''
Clamp Type Hydraulic
Programmable Yes
Optical Cutting Line Yes
Blade Construction Steel
Back Gauge Adjustment Manual
Safety Mechanism Light safety curtains
Readout Analog
Model # 800PA
Weight 1,322 lbs.
Height 61''
Width 71''
Depth 75 1/2''
Voltage 220 Volts; other voltages available

Shipping Weight 1322.0000
Search Terms duplo800pa, duplo800papercutter, 800ppapercutter, 800-pa, duplo800, duplo800cutter, duplo800papercutter, 800papercutter, papercutter, duplocutter, 800cutter, duplopapercutter, duplo800pacutter, duplo800papapercutter, 800papapercutter
