Duplo HC-550i Hydraulic Cutter
- SKU: DUPHC-550I
- Cut Width: 21.6"
This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.
Call us at (800) 243-9226
Description of the Duplo HC-550i Hydraulic Cutter

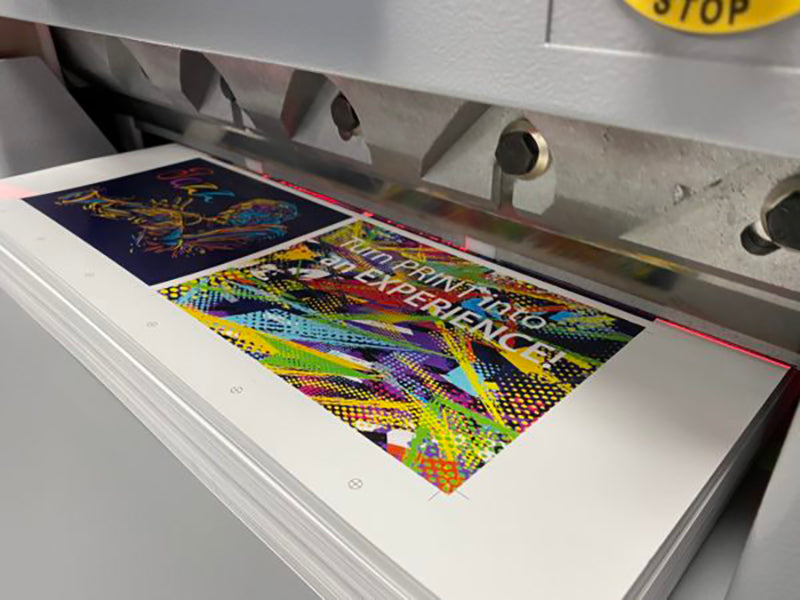

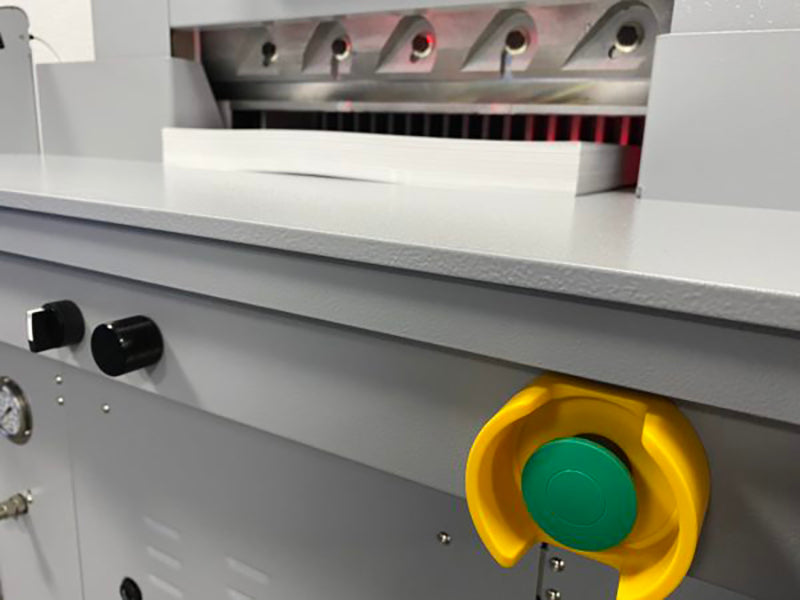

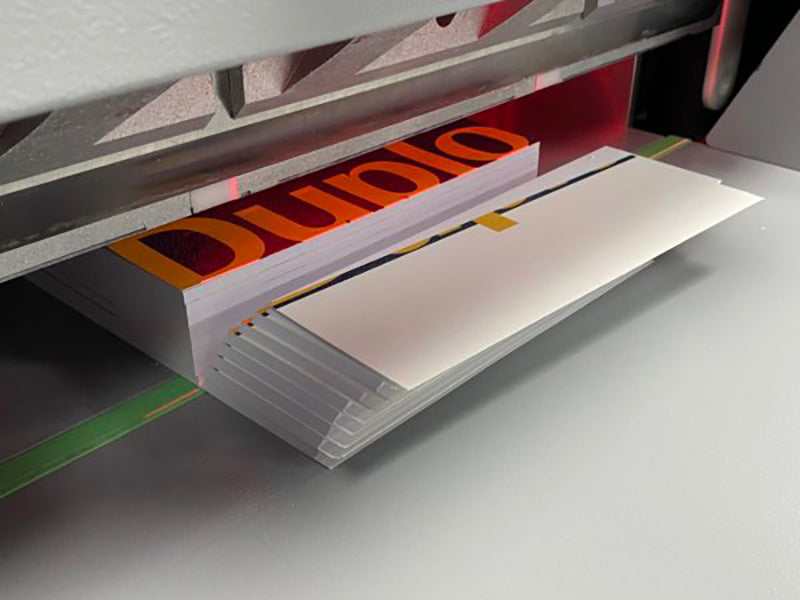

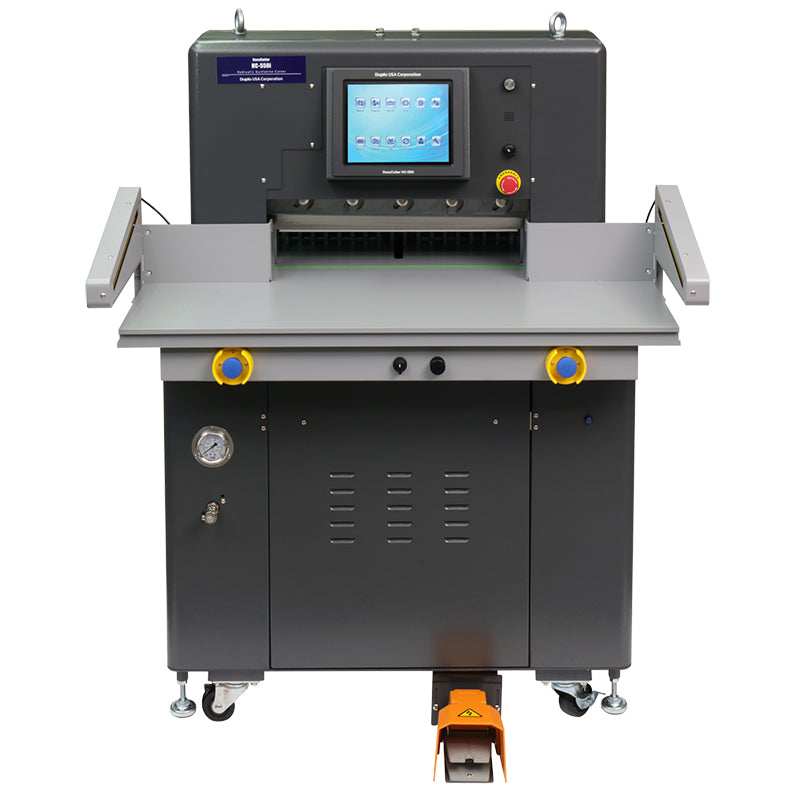

The HC-550i Hydraulic Cutter effortlessly cuts through large stacks of paper up to 21.6" wide. Finish stacks of postcards, direct mail, and perfect bound books up to 3.5" in height. Program the cuts and sequence for each job using the touchscreen panel. As each cut is performed, the back gauge automatically adjusts for the next cut and the control panel prompts the cut rotation to eliminate errors and increase efficiency. The LED light illuminates the cut line, allowing you to see exactly where the cut will be applied, and the foot pedal controls the low pressure clamp to keep the job firmly in place. Simply rotate the job and discard the scraps.
| Manufacturer Name | Duplo |
|---|---|
| Maximum Cutting Width | 21.65" (550 mm) |
| Minimum Cut | 0.75" (19 mm) without false clamp / 2” (50 mm) with false clamp |
| Maximum Cutting Depth | 22" (560 mm) |
| Clamp Opening | 3.5" (88.5 mm) without false clamp / 3.25” (83 mm) with false clamp |
| Clamping Method | Adjustable hydraulic |
| Maximum Clamping Pressure | 2,777 lb. (1,260 kg) |
| Minimum Clamping Pressure | 556 lb. (252 kg) |
| Backgauge Control | Power with micro adjustment |
| Backgauge Speed | 3.9"/second (100 mm/second) |
| Table Space | 20.5" (520 mm) in front of knife / 31.9” (810 mm) behind knife |
| Overall Height | 59.1" (1,502 mm) |
| Option Knife Steel | Tungsten Carbide |
| Approx. Net Weight | 1,025 lb. (465 kg) |
| Power Requirements | Single phase, 200-240VAC, 50/60Hz, Max 16A |
| Safety Certification | ETL, CETL |
| Hydraulic Motor | 2HP(IE3) with inverter, single phase, 50/60Hz, 15.7A |
