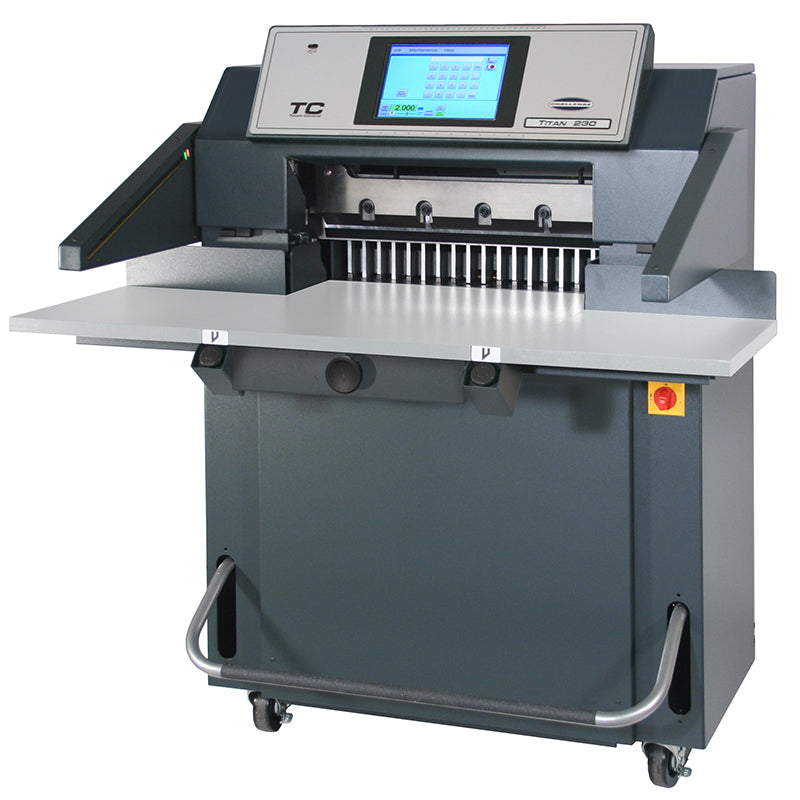

Challenge Titan 230 TC Paper Cutter
- SKU: CHATITAN230TC
- Cut Width: 23"
- Type: Auto-Programmable
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Description of the Challenge Titan 230 TC Paper Cutter
Today’s print market places great demands on your business. Investments in cutting-edge wide format, inkjet, and digitalprint engines ensure you meet your customer’s diverse needs. Finish your upgrades with a Challenge Titan 230.
The Titan 230 is built on a foundation of solid cast iron and steel construction for maximum durability. UHMW gib surfaces, composite bushings, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.
The Titan 230 meets the toughest safety standard in the industry today. Category 4 light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to our UL and CE certification.
TC programmable interface allows more usability than ever before. Programmable jobs, cut and record, and other features allow you to get the most efficiency out of your machine.
The intuitive 10.5" color touch-screen TC Controller allows variable mode data entry, automatic fraction to decimal calculation and unlimited program storage capacity. Clamp mark waste is reduced or eliminated with programmable electronic clamp pressure control per cut. Innovative advances improve the task of program creation through features such as repeat and loop commands, USB port for thumb drive program delivery, label cutting and sheet division tools, and more! The TC system is the first paper cutter controller in the world to recognize common .csv format program files making offline programming simple and easy to implement at any size print operation.
Proudly manufactured in the USA, The Titan 230 TC continues our legacy of providing… assurance you made the right decision.
| Manufacturer Name | Challenge |
|---|---|
| Maximum Cutting Width | 23 inches (58.4 cm) |
| Clamp Opening | 3-1/4 inches (8.3 cm) |
| Cutting Mode | Hydraulic |
| Maximum Cut Depth | 24 inches (61 cm) |
| Minimum Cut without False Clamp Plate | 1/2 inch (13 mm) |
| Minimum Cut with False Clamp Plate | 1-7/8 inch (48 mm) |
| Clamp Type | Hydraulic |
| Programmable | Yes |
| Clamping Force Minimum | 1,250 lbs (563 daN) |
| Clamping Force Maximum | 2,500 lbs (1,125 daN) |
| Electrical | 1-3/4 H.P., 208/230 Volts AC 60Hz 1-phase, 12 A (15 A Service) |
| Safety Mechanism | Light safety curtains; knife safety latch |
| Model # | 230 TC |
| Weight | 1,000 lbs. (454 kg) |
| Table Space in Front of Knife | 24-1/4 inches (61.6 cm) |
| Table Space Behind Knife | 24 inches (61.0 cm) |
| Overall Width | 50 inches (127 cm) |
| Overall Length | 66 inches (168 cm) |
| Warranty | Click here to view warranty |
| Shipping Weight | 1,250 lbs. (567 kg) |
