Challenge iCutter 860
- SKU: CHAICUTTER860
- Cut Width: 33.9"
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.

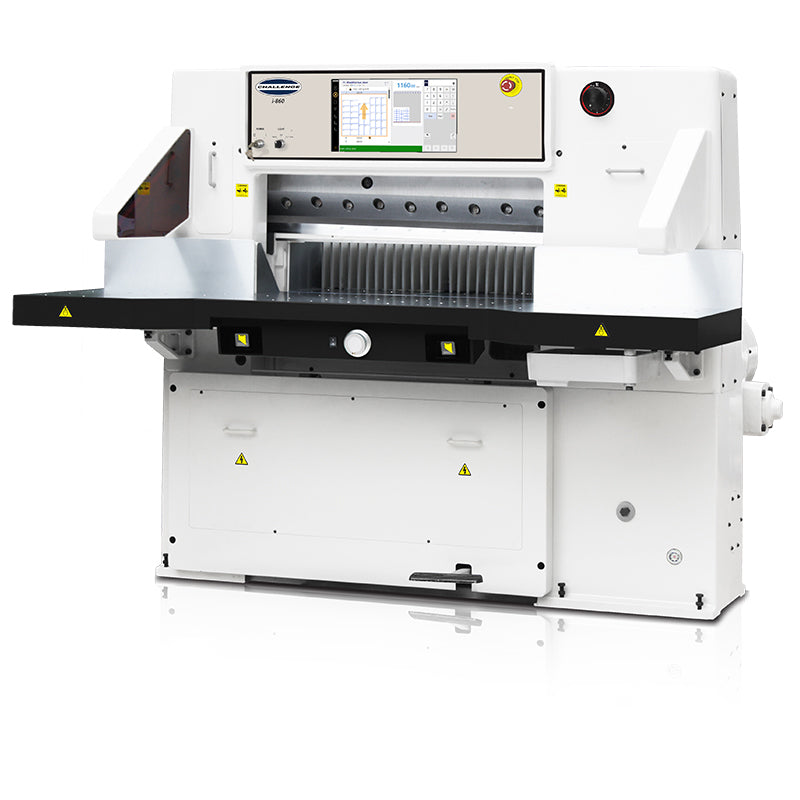

Description of the Challenge iCutter 860
This mechanical drive paper cutter from Challenge Machinery provides precise, trouble-free operation at an incredible value. The linear guide rail and A/C driven ball-screw deliver smooth, effortless motion. The precise backgauge controls provide accuracy within +/- 0.002.”
The large 15” color touchscreen provides a visual display of backgauge location and proper cut sequence alignment and positioning. The advanced user interface includes machine diagnostics, job storage and retrieval capabilities, error detection and maintenance reminders.
The heavy duty construction of the cast iron and steel frame provides a solid foundation for consistent cut accuracy. The rugged design of the mechanical drive system is ideal for high volume cutting applications where reliability is critical.
The mechanical knife removal system is designed for efficiency and ease of use. One operator can safely replace the blade in ten minutes.
Operator safety is of the utmost importance and the iCutter comes standard with key features such as two-hand activation, timed and non-repeating cut buttons, monitored knife safety latch, infrared safety beams, and overload shear bolt.
The Challenge iCutter series has an optional module that integrates with the HP Indigo workflow package for fully automated cutting jobs. After scanning the job ticket, the iCutter displays the optimal cutting sequence automatically. As an HP SmartStream Partner, labor efficiency can be increased by as much as 170%.
| Manufacturer Name | Challenge |
|---|---|
| Maximum Cutting Width | 33.9 inches (860 mm) |
| Maximum Clamp Opening | 6.1 inches (155 mm) |
| Feed Depth Maximum | 33.9 inches (860 mm) |
| Feed Depth Minimum | 1.2 inches (30 mm) |
| Cutting Speed (r.p.m.) | 45 |
| Drive System | Single end pull |
| Clamp Pressure | 440-9,921lbs (200-4,500kg) |
| Backgauge Speed Maximum | 7.9 inches/sec |
| Backgauge Speed Minimum | .39 inches/sec |
| Minimum Cut w/Flase Clamp | 2.95 inches (7.5 cm) |
| w/out Flase Clamp | 1.2 inches (30 mm) |
| Table Space in Front of Knife | 25 inches (635 mm) |
| Table Height | 34 inches (865 mm) |
| Overall Length (w/side tables) | 80.1 inches (2,035 mm) |
| Overall Width | 78.4 inches (1,990 mm) |
| Overall Height | 60.4 inches (1,535 mm) |
| Net Weight (Approx) | 5,424 lbs (2,440 kg) |
| Voltage | 5 HP, 208/230 volts, 60Hz, 3 phase AC, 20 amps (service size: 30 amps) |
| Warranty | Click here to view warranty |
| Shipping Weight | 6,261 lbs (2,840 kg) |
