Akiles CoilMac ECI Manual Coil Punch with Electric Coil Inserter

Akiles CoilMac ECI Manual Coil Punch with Electric Coil Inserter

Basic Specs of the CoilMac-ECI

  • Built-in Heavy Duty Electric Coil Inserter with Double Roller Mechanism
  • Punch Capacity: 20 sheets of 20 lb paper
  • Binding Capacity: up to 7/8" (electric) or 2" (manual)
  • Plastic & Metal Coil Compatible
  • 5 Disengageable pins
  • Standard 4:1 Pitch
  • Round 4 mm hole size
  • Includes coil diameter selector & premium coil crimpers

The CoilMac-ECI is a heavy duty machine, outfitted with cast-hardened and heat-treated steel dies to make a durable, precise punch for your coil binding needs.




Regular price
$969.93
Sale price
$739.00
Unit price
per


SKU: AKICMACECI ISBN: 9358476079992
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the CoilMac-ECI

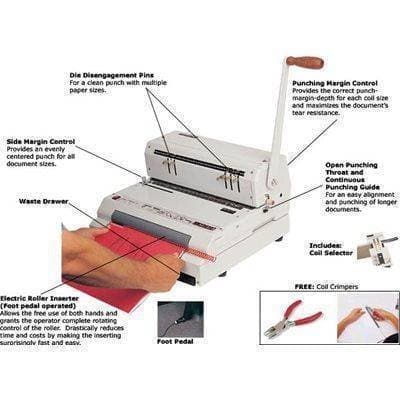

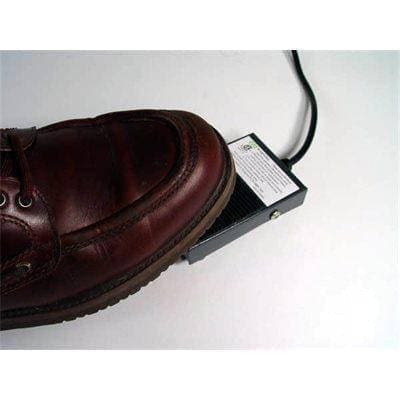

The CoilMac-ECI is a heavy duty machine, outfitted with cast-hardened and heat-treated steel dies to make a durable, precise punch for your coil binding needs. The full length electric coil inserter is not only highly durable, but super easy to use -- the electric foot pedal operation gives the most control for anyone to use. The double roller mechanism runs on an industrial grade motor, with a high friction surface to ensure a quick and easy insertion. Mounted on the front face of the CoilMac ECI for the easiest access for the user, the electric coil inserter is compatible with both metal and plastic coil.

The single punch length is 13" across 53 holes, but the open throat design and continuous punch guide, located on the side of the machine, allows you to work with any length of paper up to 26" while the side and punching margin control allow for a properly centered professional punch every single time. Easy to use and super efficient, the CoilMac ECI can punch up to 20 sheets of 20 lb paper at a time, or up to 2.6 mm for hardboard, with a standard round hole of 5 mm and a standard pitch of 4:1 (0.250"). This rugged all metal machine can take up to 7/8" in electric binding capacity, and up to 2" when done manually. The manual punch handle is cast-hardened and heat-treated for the strength and hardness for the best performance possible. Non-skid feet provide a stable working environment, and an extra large waste drawer is conveniently located on the bottom of the machine.

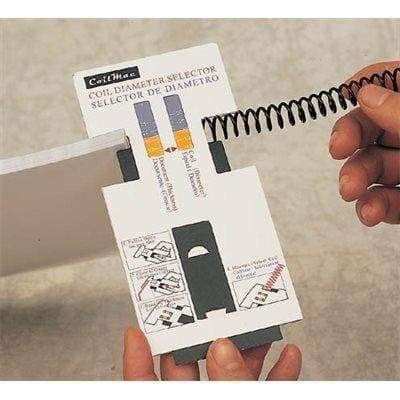

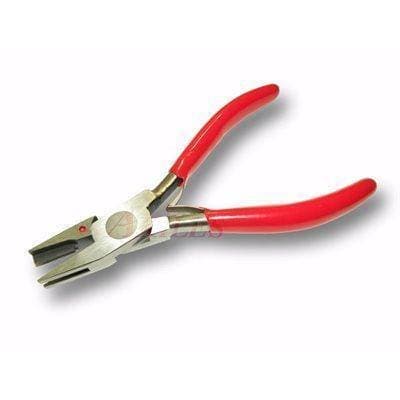

Purchase includes a coil diameter selector and premium oval coil crimpers, completely free of charge. Buy the CoilMac-ECI from Akiles today, a great addition to any office, school, and more!

Manufacturer Name Akiles
Punching Method Manual
Binding Method Electric
Punch and Bind Capability Yes
Max Sheet Capacity 20 sheets of 20lb paper
Foot Pedal Operation Yes
Waste Compartment Yes
Weight 52
Shipping Weight 55.0000
