Triumph 4860 ET Paper Cutter(Discontinued) (New Model Available)

Triumph 4860 ET Paper Cutter(Discontinued) (New Model Available)

Features of the 4860 ET Paper Cutter

  • Cutting width: 18 7/8 inches
  • Cutting height: 3 inches
  • Length behind blade (narrow cut): 17 11/16 inches
  • Table length in front of blade: 13 5/8 inches
  • Automatic programmable back gauge with 10-button keypad
  • Powerful electric blade and clamp
  • LED display stores a maximum of 99 programs and commonly used settings
  • "Set" function key for reference measurement
  • Clamp (able to be lowered/raised separately from knife) guided on both sides to apply pressure along cutting width
  • Optical cutting line
  • All-metal construction
  • Comprehensive "SCS" safety package
  • Storage shelf included in stand
Free

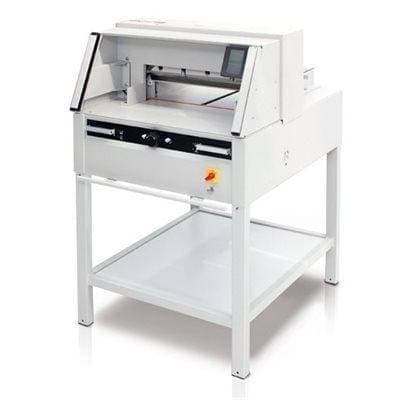

The Triumph 4860 ET from MBM is an automatic guillotine-style cutter that is fully programmable and perfect for cutting digital prints.




Regular price
Sold out
Sale price
$12,799.00
Unit price
per


SKU: MBM4860ET-0417
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the Ideal Triumph 4860 ET Cutter

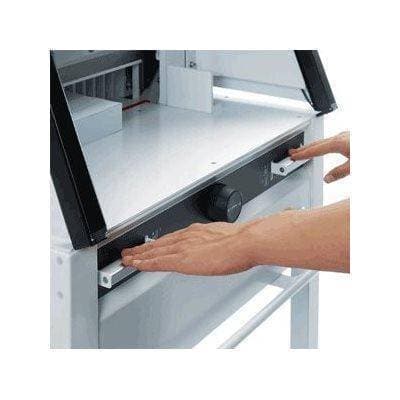

The new Triumph 4860 ET from MBM is an automatic guillotine-style cutter that is perfect for cutting digital prints. What separates the Triumph 4860 ET from the Triumph 4850 EP is the front table IR light beam safety curtain. A vital aspect of the SCS (Safety Cutting System), should any object (i.e. hands, clothing) obstruct this cutting light during operation, the 4860 will immediately cease cutting. Another aspect of the SCS is the electronically-controlled transparent safety shield which covers the rear table. The Triumph 4860's main switch is conveniently located and features a safety lock and key. The electronically-controlled, true two-hand operation guarantees that your hands will be nowhere near the blade as it commences cutting. The patented two-step blade activation bars ensure safe operation every time. Thanks to this two step process, the blade and clamp can be activated independently with separate trigger points for the blade and clamp respectively.

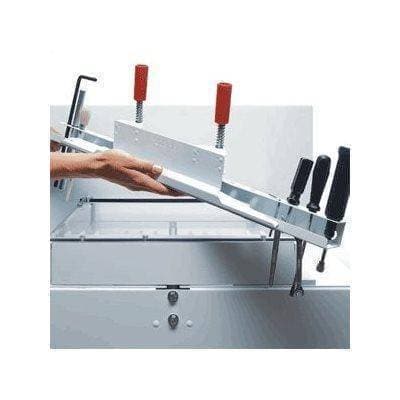

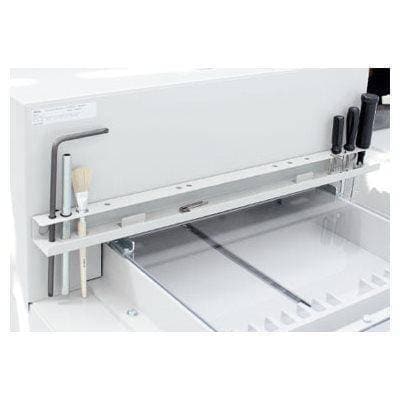

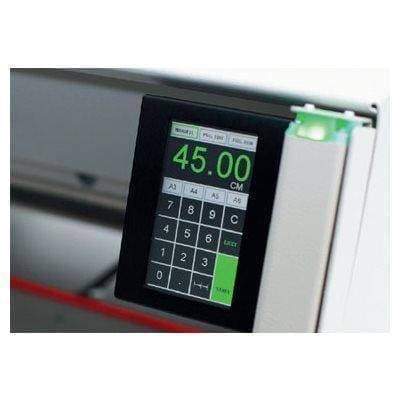

Everything on the Triumph 4860 ET is made simple thanks to advanced programming technology. One amazing advancement the Triumph 4860 ET has to offer is the new electronic touch pad control module. This user-friendly touch pad allows the user to easily set the electric back gauge. Up to 99 programs can be stored into memory, each of these tasks including up to 99 steps. As an added bonus, the touch pad control is multilingual! Repeat cut and eject functions are also included. Almost anything is possible with the 4860 ET. Electronic hand wheel with variable speed control for manual back gauge setting. There is nearly infinite variability in the speed control and cuts anywhere between 35 mm and 475 mm can be made with ultimate precision. This precision is due to the LED optical cutting line and spindle-guided back gauge. The Triumph 4860 cutter even has a self-diagnostic system with an error display so the user is always aware of the machine's operational status. A convenient drop-in tool holder located on the rear of the machine keeps the tools necessary for routine maintenance organized and in easy reach. This holder includes one of the most vital tools: the blade changing device with covered cutting edge. The high quality, German Solingen steel blade is extremely durable. The Triumph 4860 allows you to change the blade from the front of the machine without the hassle of removing the covers. You can also adjust the blade depth from the outside of the machine.

Manufacturer Name MBM
Max Cutting Width 18 7/8''
Cutting Height 3''
Cutting Mode Automatic/Electric
Cutting Length Behind Blade 17 11/16''
Clamp Type Automatic
Programmable Yes
Optical Cutting Line Yes
Blade Construction Solingen steel
Back Gauge Adjustment Automatic
Safety Mechanism SCS Safety Package
Readout Digital
Model # 4860 ET
Manufacturer Part Number 4860 ET
Weight 511 lbs.
Height 50 7/8"
Width 29 3/4''
Depth 39''
Voltage 115 V
Shipping Weight 607.0000
Shipping Width 39
Shipping Length 29.75
Shipping Height 50.875
