Triumph 4860 Paper Cutter (Discontinued)

Triumph 4860 Paper Cutter (Discontinued)

Features of the 4860 Paper Cutter

  • Cutting width: 18 5/8 inches
  • Cutting height: 3 inches
  • Narrow cut: 1 inch
  • Table depth:18 inches
  • Length behind blade (narrow cut): 17 11/16 inches
  • Table length in front of blade: 13 5/8 inches
  • Automatic programmable back gauge with 10-button keypad
  • Powerful electric blade and clamp
  • LED display stores a maximum of 99 programs and commonly used settings
  • "Set" function key for reference measurement
  • Clamp (able to be lowered/raised separately from knife) guided on both sides to apply pressure along cutting width
  • Optical cutting line
  • All-metal construction
  • Comprehensive "SCS" safety package
  • Storage shelf included in stand

The Triumph 4860 from MBM is an automatic guillotine-style cutter that is fully programmable and perfect for cutting digital prints.

Regular price
Sold out
Sale price
Unit price

SKU: MBM4860-0417L

Have questions?
Call us at (800) 243-9226

Secured & Safe Checkout :

trust badge

Description of the Ideal Triumph 4860 Cutter

The Triumph 4860 offers the impressive IR light beam safety curtain, as well as Easy-Cut technology, automatic clamp, programmable power backgauge, and touchpad control. This professional cutter accepts a range of documents and formats. With a cutting capacity of 18 5/8" in length and 3" in height, the Triumph 4860 performs a narrow cut of just over 1". The standard keypad has upgraded to an advanced touch pad control. The electronic, programmable control module positions the power backgauge. However, operators can choose to manually position the backgauge with electronic hand wheel, which offers infinitely variable speed control (from very slow to very fast). The muitlingual touch pad offers digital display measurement readout. The high capacity memory holds up to 99 programs with 99 steps in each program. The memory also stores repeat or frequent cuts. The automatic "set" function references measurements via the start button. The programmable "eject" function pushes out the paper. A self-diagnostic system provides error indication on display.

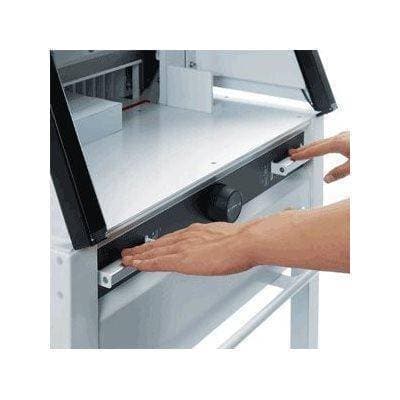

Both the clamp and blade are controlled by the "Easy Cut" two-step activating bars. With this system, separate trigger points activate the blade and clamp independently. This guarantees true two-hand operation for heightened user safety. The SCS (Safety Cutting System) features a safety cover on the rear table, main switch and safety lock with key, automatic blade and clamp return from every position, and disc brake for instant blade stop. The impressive IR light beam safety curtain located on the front table guarantees superior user protection. When an object penetrates the light beams, cutting will come to a halt. Both the blade and cutting sticks can be changed or rotated from the front of the unit, without having to remove any covers. Changing the blade is easy and safe thanks to the blade changing device, which covers the edge of the steel blade.

Manufacturer Name MBM
Max Cutting Width 18 5/8''
Cutting Height 3''
Cutting Mode Automatic/Electric
Cutting Length Behind Blade 17 11/16''
Clamp Type Automatic
Programmable Yes
Horsepower 2 HP
Optical Cutting Line Yes
Blade Construction Solingen steel
Back Gauge Adjustment Automatic
Safety Mechanism SCS Safety Package
Readout Digital
Model # 4860
Manufacturer Part Number 4860
Weight 511 lbs.
Height 50 7/8"
Width 29 3/4''
Depth 39''
Voltage 115 V
Shipping Weight 607.0000
Shipping Width 39
Shipping Length 29.75
Shipping Height 50.875
