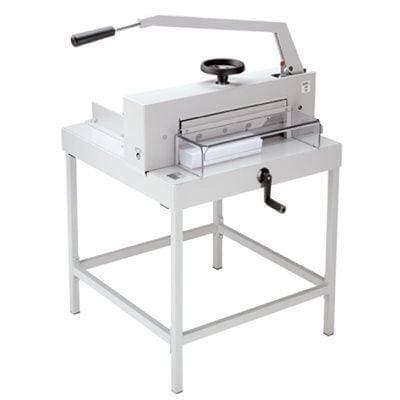

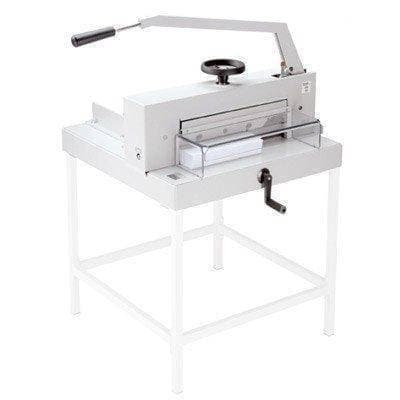

Triumph 4705 Manual Paper Cutter

Triumph 4705 Manual Paper Cutter


Features of the 4705 Triumph Cutter

*Does not include stand
  • Cutting width: 18 ¾ inches
  • Cutting height: 2 ¾ inches
  • Minimum length behind blade (narrow cut): 1 3/16 inches
  • Cutting length behind blade: 18 ¼ inches
  • Table length in front of blade: 8 1/8 inches
  • Solingen steel blade
  • Hinged, clear safety guard on front table that mechanically locks while cutting
  • Transparent safety cover on rear table
  • Safety catch locks knife lever in the up position
  • Ability to change blade without removing machine covers
  • Blade changing device covers cutting edge of blade
  • Cutting stick that can be externally turned or changed
  • Spindle-guided back gauge with calibrated crank
  • Spindle clamping system that applies smooth pressure along entire cutting width
  • Precision back gauge measuring scale (on front table)
  • Complete metal construction
  • All-inclusive "SCS" safety package
  • Optional stand
Free
The 4705 manual Ideal Triumph paper cutter is a solid and safe machine that makes cutting simple for you. The safety catch, guard and cover enhance safety and security. With the spindle-guided back gauge that ensures exact measurements and the large bla




Regular price
$4,184.93
Sale price
$3,639.00
Unit price
per


SKU: MBM4705-0462 ISBN: 04019364210051
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the MBM Triumph 4705 Paper Cutter

Description of the Triumph 4705 Manual Cutter

The 4705 manual Ideal Triumph paper cutter is a solid and safe machine that makes cutting simple for you. The safety catch, guard and cover enhance safety and security. With the spindle-guided back gauge that ensures exact measurements and the large blade lever that makes cutting almost effortless, your job as the operator is a cinch. Even, consistent pressure is applied along the entire cutting width by the spindle clamping system.

The easily-modifiable cutting blade guides and blade depth adjustment from the outside of the machine are very expedient. The minimum length behind the blade is 1 3/16 inches, and the 4705 manual cutter has great cutting width for a machine its size. Although it is one of the smaller Triumph cutters, with a manual clamp and knife, it has an 18 ¾ inch cutting width, almost equal to those of the larger, automatic cutters. The 4705 model has the ease-of-use, precision and safety that Ideal Triumph paper cutters are known for.

Strengths
  • Pressure is applied along the cutting width, so sheets are secured in place and will not move.
  • Extra large cutting lever makes the work extremely easy for the user; minimal manual effort is needed.
  • Very safe; includes "SCS" safety package, which features safety guard on front table, safety cover on back table, safety catch, blade changing from outside of cutter, and more.




Manufacturer Name MBM
Max Cutting Width 18 3/4''
Cutting Height 2 3/4"
Cutting Mode Manual
Cutting Length Behind Blade 18 1/4''
Cutting Length in Front of Blade 8 1/8''
Clamp Type Manual
Blade Construction Solingen steel
Back Gauge Adjustment Manual
Safety Mechanism Safety shields; safety catch
Readout Analog
Model # 4705
Weight 297 lbs.
Height 20"
Width 40 1/2"
Depth 34 3/8''
Shipping Weight 297.0000
Shipping Width 36
Shipping Length 35
Shipping Height 29
Search Terms mbmtriumph, mbm4705, triumph4705, triumph4705, mbmpapercutter, papercutter, mbmcutter, 4705cutter
