Standard EF-35 Paper Folder Folders Standard
Standard EF-35 Paper Folder Folders Standard
Standard EF-35 Paper Folder Folders Standard
Standard EF-35 Paper Folder Folders Standard
Standard EF-35 Paper Folder Folders Standard
Standard EF-35 Paper Folder Folders Standard

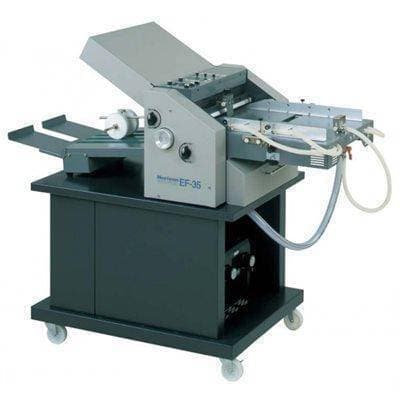

Standard EF-35 Air-Feed Paper Folder

  • SKU: SDMEF35
  • Max Paper Weight: 244.56 g/m²
  • Max Paper Size: 13.7" x 25.5"
  • Adjustment: Manual
  • Feed Type: Air
$8,892.48
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product qualifies for Free Freight Shipping in the contiguous U.S.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Features of the Standard EF-35 Paper Folder

  • Automatic document folding machine
  • Suction feed system
  • Speed of 500 sheets per minute
  • Sheet capacity of 350
  • For use with 8-1/2" x 11" paper, 12-65 lb bond, 17-90 lb cover
  • Base cabinet with casters
  • Dual dedicated feed pumps (suction and pressure)
  • Variable speed feed control
  • Self adjusting fold roller gapping
  • Overlap and jam detection
  • Variable speed output conveyor (continuous/sheet sensor activated modes)

Fold Types

Letter/Tri/C FoldHalf/Single FoldZ/Accordion/Zig Zag FoldDouble Parallel FoldGate/Brochure FoldEngineering/Short Z/Fold-Out/Half-Accordion Fold


Paper Weight Conversion Chart


Click Here for the Paper Weight Conversion Chart
The EF-35 Standard air-fed paper folder is great for tabletop suction feed folding jobs. Operating quickly at a speed of 30,000 sheets per hour, it creates clean, consistent folds. This folding equipment serves print shops well with its high efficacy.

Description of the Standard Paper Folder EF-35

The Standard EF-35 air-fed paper folder is great for tabletop suction feed folding jobs. With top-load and bottom-feed and fast changeover, it folds at a rate of 30,000 sheets per hour. The feed tray can take 350 sheets at a time. This machine folder is easy to set up and just as easy to operate, folding quickly and quietly. Including variable speed control, self-adjusting fold roller gapping, and paper jam detection, the EF-35 can't get any more convenient for the user.

It produces clean, consistent half folds and accepts bond, cover and xerographic paper. It also takes statically charged stock; its ability to feed such a range of paper makes the EF-35 paper folder very effective. With its base cabinet mounted on casters, the unit is portable. The rollers have grooving that promote positive sheet grip and decrease scuffing on digital stock. This Standard paper folder would serve anyone well with its efficacy and wide range of paper capability.

Strengths

  • Powerful air feed system; accommodates heavier coated and glossy stock.
  • Very feature-rich machine; digital counter with batch function, variable speed control, test button, and more.
  • Very speedy machine; folds 30,000 sheets an hour.

FOLD TYPES

Letter/Tri/C FoldHalf/Single FoldZ/Accordion/Zig Zag FoldDouble Parallel FoldGate/Brochure FoldEngineering/Short Z/Fold-Out/Half-Accordion Fold


Paper Weight Conversion Chart


Click Here for the Paper Weight Conversion Chart

Manufacturer Name Standard
Model # EF-35
Feed Type Air-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity Up to 350
Fold Speed 30,000 sheets/hour
Fold Types Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Gate Fold, Engineering Fold
Pre-programmed Standard Folds 6
Variable Speed Yes
Counter Yes
Batcher Yes
Accepted Paper Sizes 2.2'' x 2.8'' to 13.7'' to 25.5''
Accepted Paper Weights 12 to 90 lbs.
Weight 276 lbs.
Height 43.2''
Width 52.4''
Depth 23.3''
Voltage 220 Volts; other voltages available
Warranty
>> Click Here to View Warranty
Shipping Weight 276.0000
Search Terms standardef, standardef-35, standardef35, ef35, standardfolder, effolder, paperfolder
