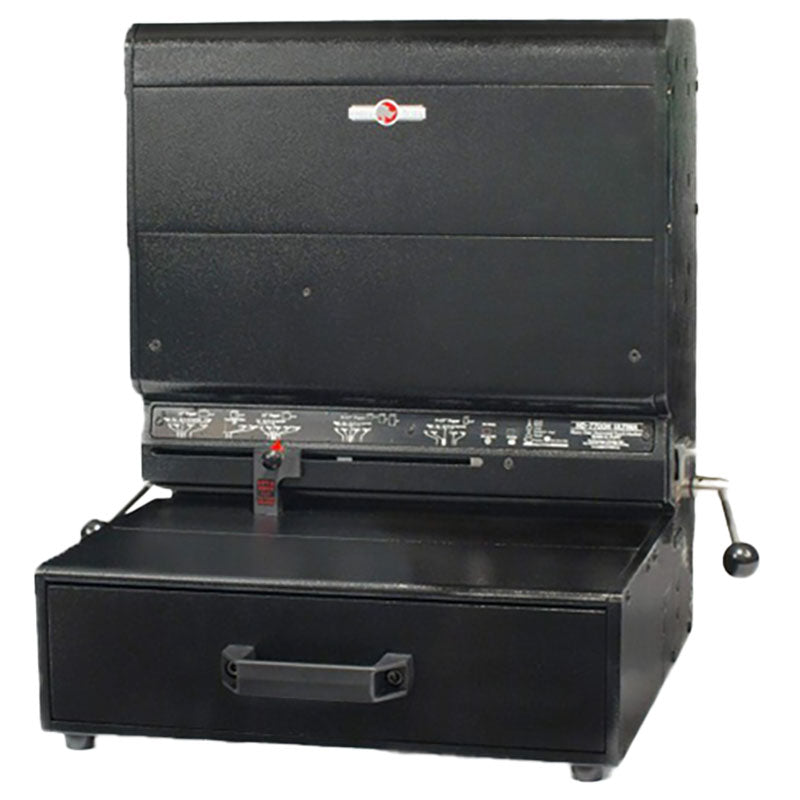

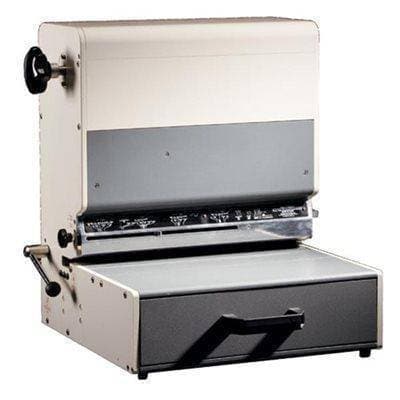

Rhin-O-Tuff 7700H 14" Horizontal Punch
Rhin-O-Tuff 7700H 14" Horizontal Punch Binding/Punching Systems Rhin-O-Tuff

Rhin-O-Tuff 7700H 14
Rhin-O-Tuff 7700H 14

Rhin-O-Tuff 7700H 14" Horizontal Punch

  • SKU: NSC00205EHD7700HONYX
  • GTIN/UPC: 096224640221
  • Mfr. Part No.: HD-7700-H
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the 7700H

  • Punching Format: Horizontal
  • Punch and Bind Capability: No
  • Maximum Sheet Capacity: 40
  • Maximum Punching Length: 14"
  • Foot Pedal Operation: Yes
  • Interchangeable Dies: Yes
  • Paper Stop Guide: Yes
  • Waste Compartment: Yes
  • Voltage: 115 V
  • Hertz: 60 Hz
  • Item Dimensions (DxWxH): 19"21"21"
  • Item Weight: 100 lbs.
The Rhin-O-Tuff 7700H is an open-ended table top horizontal punching machine that can complete 25 cycles per minute.

Description of the Rhin-O-Tuff 7700H 14" Horizontal Punch

Rhin-O-Tuff's 7700H punching machine offers the same features as the 7700 except that it is optimized for those who prefer a horizontal throat instead of a vertical one. There are many high-performance features on the 7700H that make it one of the most popular horizontal punching machines on the market. One of these features is the patented auto-reverse, which prevents jamming by reversing when the machine detects an overload. Another popular feature is the patented quick change die system, which allows you to change the machine's die without using any tools or dismantling anything. There are over 20 interchangeable dies associated with the 7700H and you can select one to receive along with your punching machine. This machine features an extra-large chip tray and an LED display screen that lets you know if you need to adjust your die. Depending on the thickness of your paper, you will be able to punch between 40 and 55 sheets of paper at once. The sheet allowance is closer to 40 when punching a 4:1 pitch pattern and closer to 55 when punching a Velobind pattern or three-hole pattern. These sheet allowances are generally much higher than those of most other horizontal punching machines. The overall durability and strength of the Rhin-O-Tuff 7700H cannot be paralleled because of its metal and steel construction. The body of the machine along with all of its smaller components, such as the chip tray and die set, are all constructed with high-quality metal and steel. At a whopping 100 lbs, this machine's durability lends itself to a lifetime of quality use! Purchase your 7700H through Whitaker Brothers today.

Manufacturer Name Rhin-O-Tuff
Punching Method Manual
Binding Type Loop Wire, Plastic Comb, Spiral / Coil
Max Sheet Capacity 40
Max Binding Length 14 inches
Foot Pedal Operation Yes
Waste Compartment Yes
Interchangeable Dies Yes
Model # 7700H
Manufacturer Part Number 00205EHD7700H
Weight 100 lbs.
Height 21 inches
Width 21 inches
Depth 19 inches
Voltage 115 V
Warranty Click here to view warranty
Shipping Weight 100.0 lbs.
