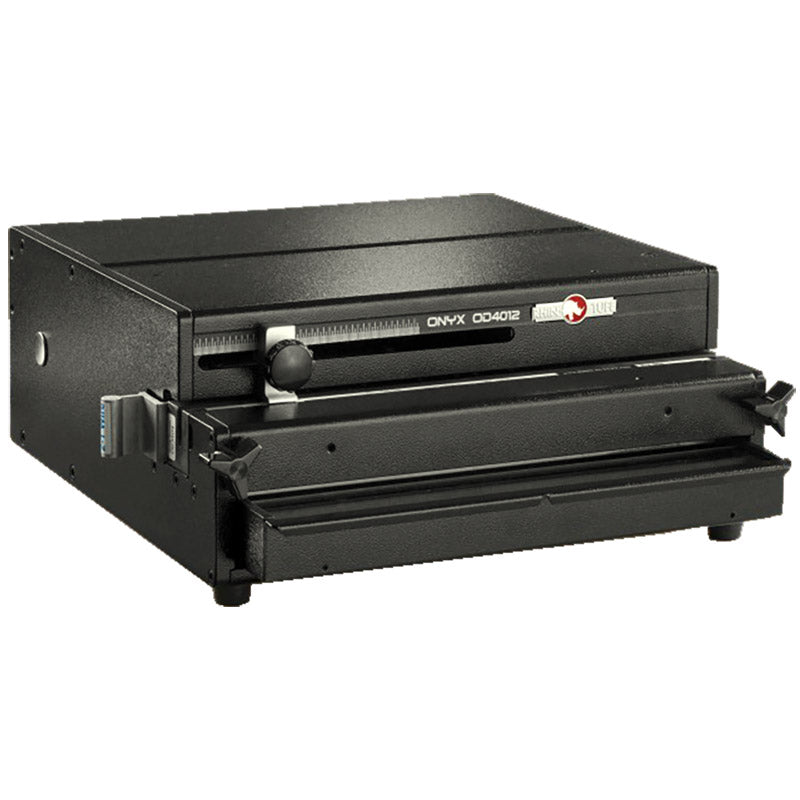

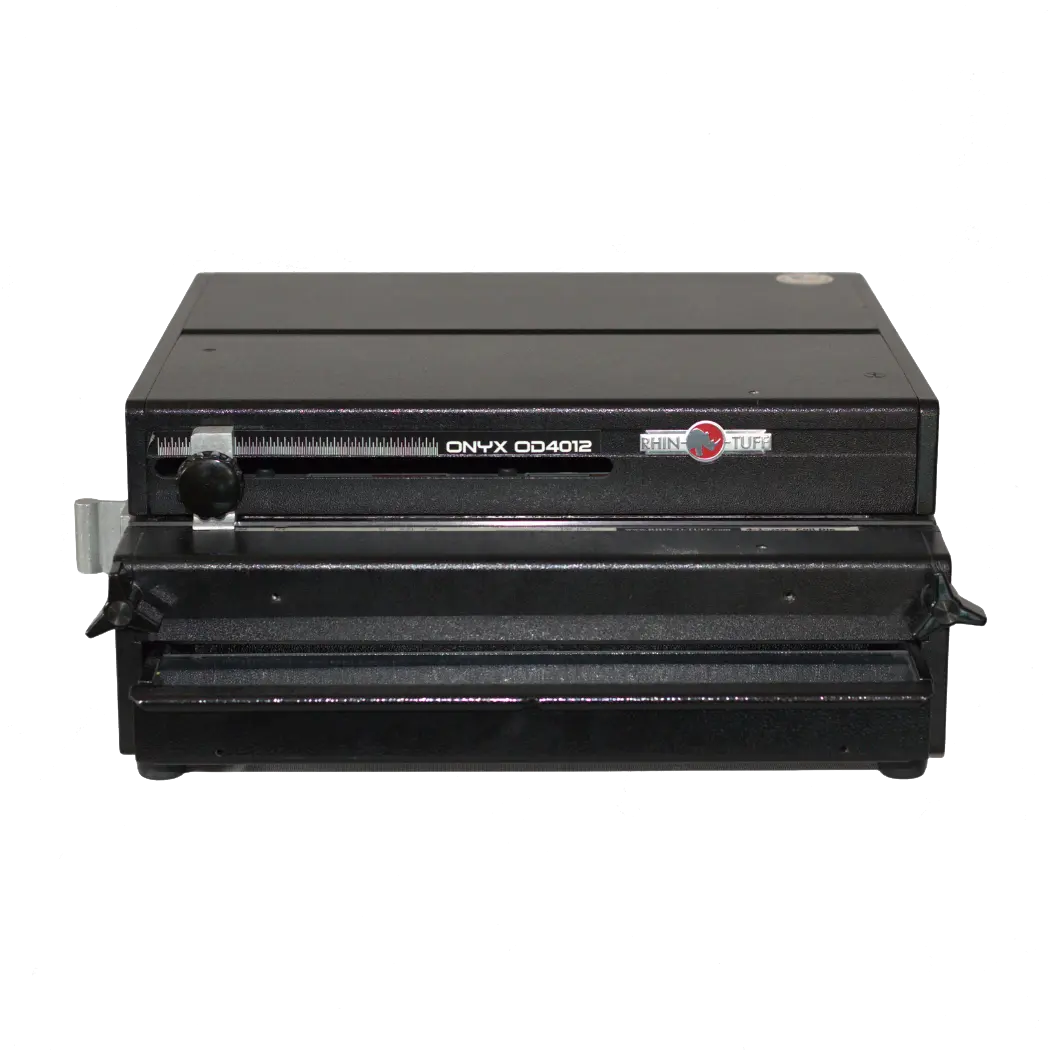

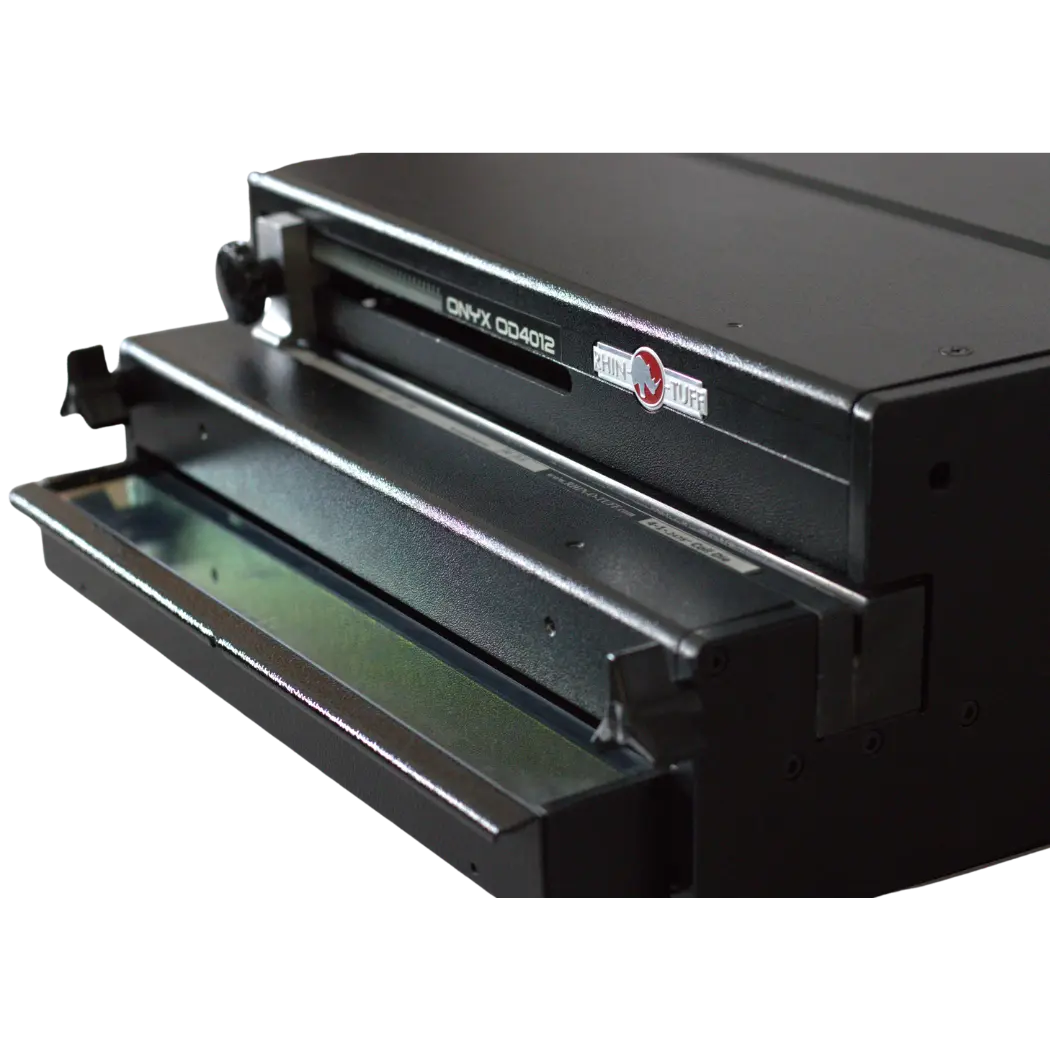

Rhin-O-Tuff Onyx OD-4012 Electric Punch
Rhin-O-Tuff 4012 Electric Open-Ended Punch Binding/Punching Systems Rhin-O-Tuff

Rhin-O-Tuff Onyx OD-4012 Electric Punch
Rhin-O-Tuff 4012 Electric Open-Ended Punch Binding/Punching Systems Rhin-O-Tuff

Rhin-O-Tuff Onyx OD-4012 Electric Punch

  • SKU: NSC00205EOD4012
  • GTIN/UPC: 096224658103
  • Mfr. Part No.: OD-4012
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

The Rhin-O-Tuff Onyx OD-4012 Electric Punch has easy "Paper to Pin" sight alignment, for balanced hole to edge margins on odd-sized applications and features our unique punch registration system that assures accurate margins. Punching capacity is rated up to 25 sheets of 20 lb. bond paper.

Basic Specs of the Rhin-O-Tuff Onyx OD-4012 Electric Punch

  • Binding Format: Interchangeable
  • Punching Method: Electric
  • Punch and Bind Capability: No
  • Maximum Sheet Capacity: 25 sheets
  • Maximum Punch Length: 11 inches
  • Cycles: 60 cycles/min.
  • Disengageable Die Pins: Yes
  • Tool-Free Die Changing: Yes
  • Open Ended Punch: Yes
  • Foot Pedal Operation: Yes
  • Push Button Operation: Yes
  • Waste Compartment: Yes
  • Auto Reverse Feature: Yes
  • UL Listed: Yes
  • CE Listed: Yes
Rhin-O-Tuff's 4012 is an electric open-ended table top punching machine featuring a quick die change.

Description of the Rhin-O-Tuff 4012 Electric Open-Ended Punch

Rhin-O-Tuff's 4012 electric open-ended punching machine is one of the highest-rated products of its kind on the market. It works with 12 different interchangeable dies that can be used for plastic comb binding, plastic coil binding, Velo Bind, 30-hole punch binding and loop wire binding. One of the most useful and popular aspects of the 4012 is its auto-reverse anti-jam feature. It detects an overload in the system and reverses the process in order to prevent jamming. The machine also features easy disengaging of your die punch pins and gives you the ability to change the die without using any tools or taking anything apart.

The 4012 boasts a "paper to pin" sight alignment to accommodate users with odd-sized applications. This alignment feature increases the accuracy of hole to edge margins. It can punch between 25 and 50 sheets of paper at once depending on the weight of the paper and the punch pattern being used. The 4012 can run up to 60 cycles per minute, which can greatly increase your productivity. It uses a maximum punch length of 11" and features a very large capacity waste compartment.

This machine also allows you a few different modes of operation - foot pedal, versa switch or palm switch. You can further increase the versatility of this product by using it with one of Rhin-O-Tuff's HD (heavy-duty) modules. Another reason the 4012 is so popular is because of its smooth and relatively quiet process. At 48 lbs, the Rhin-O-Tuff 4012 is a sturdy and durable machine that will last you a long time.

Manufacturer Name Rhin-O-Tuff
Punching Method Electric
Binding Type Loop Wire, Plastic Comb, Spiral / Coil, Velo
Max Sheet Capacity 25
Max Binding Length 11 inches
Foot Pedal Operation Yes
Waste Compartment Yes
Interchangeable Dies Yes
Model # 4012
Manufacturer Part Number 00205EOD4012
Weight 48 lbs.
Height 6-1/2"
Width 16 inches
Depth 18 inches
Voltage 115 V/60Hz
Warranty Click here to view warranty
Shipping Weight 48.0 lbs.
