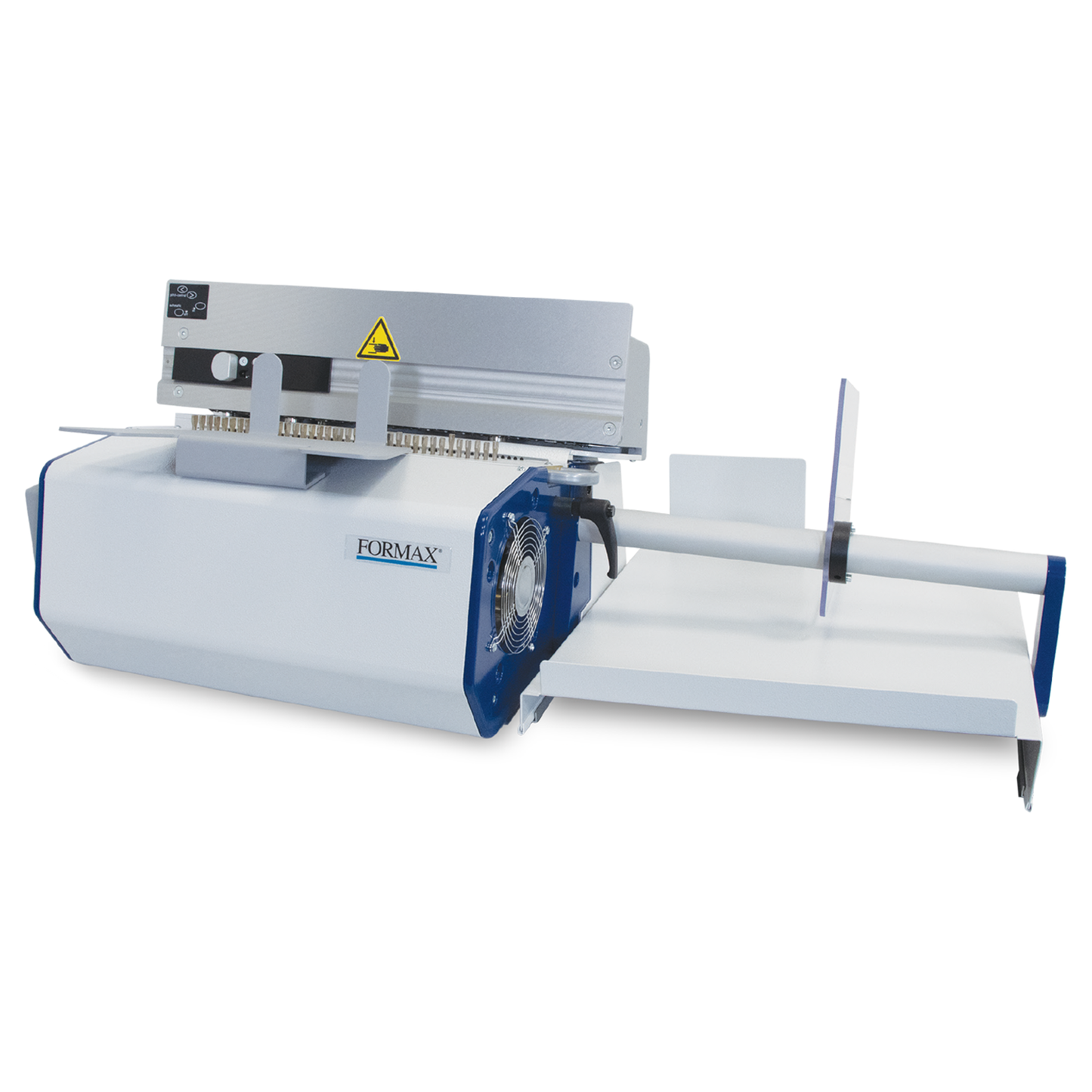

Punch100A Semi-Automatic Electric Punching System

Description of the Formax Punch100A Semi-Automatic Electric Punching System

Fast, reliable, and built for heavy-duty performance, the Formax Punch 100A Semi-Automatic Electric Punch is ideal for a wide range of binding applications.

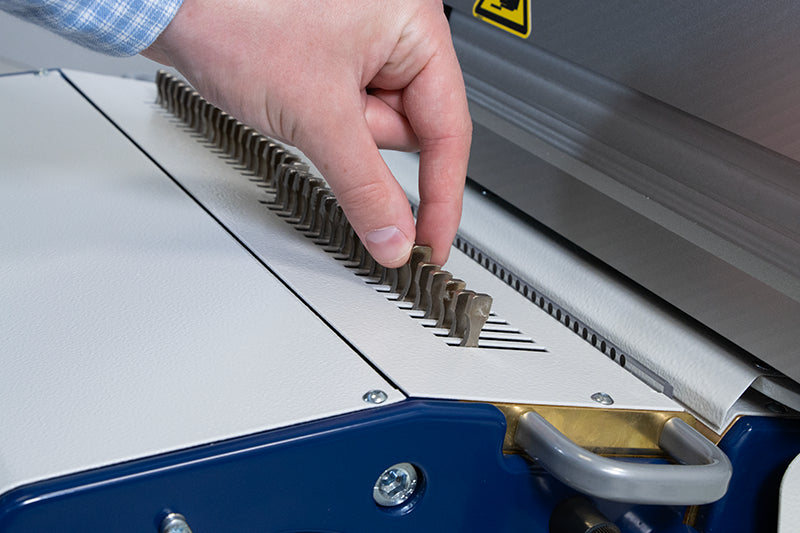

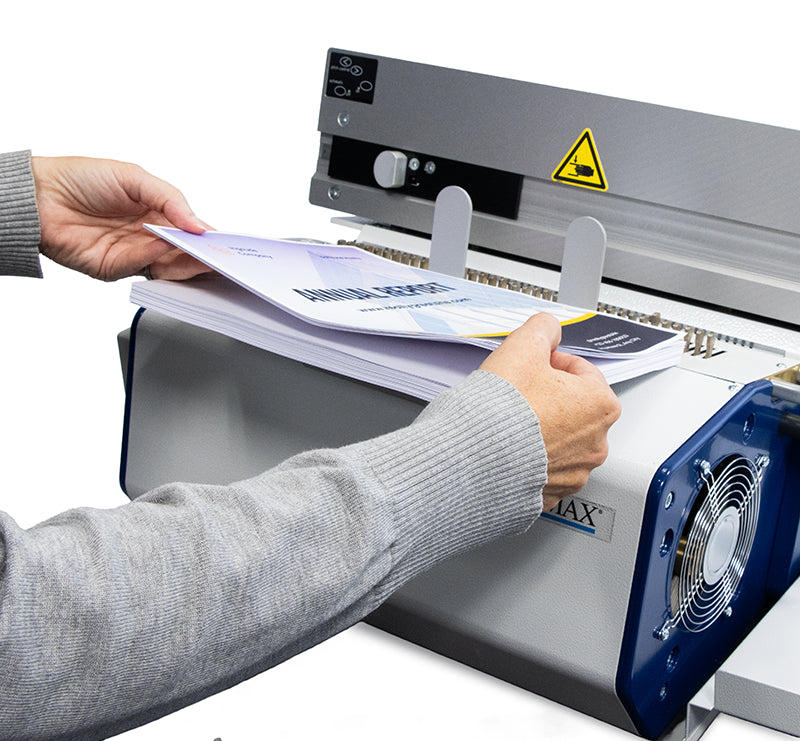

Its precision vertical punching system utilizes gravity to keep every sheet in place, for consistent hole placement even on thicker document sets. User-friendly features include a document shelf to keep sheets in order prior to punching, and easy-access punch pins which can be disengaged individually to prevent partially punched holes.

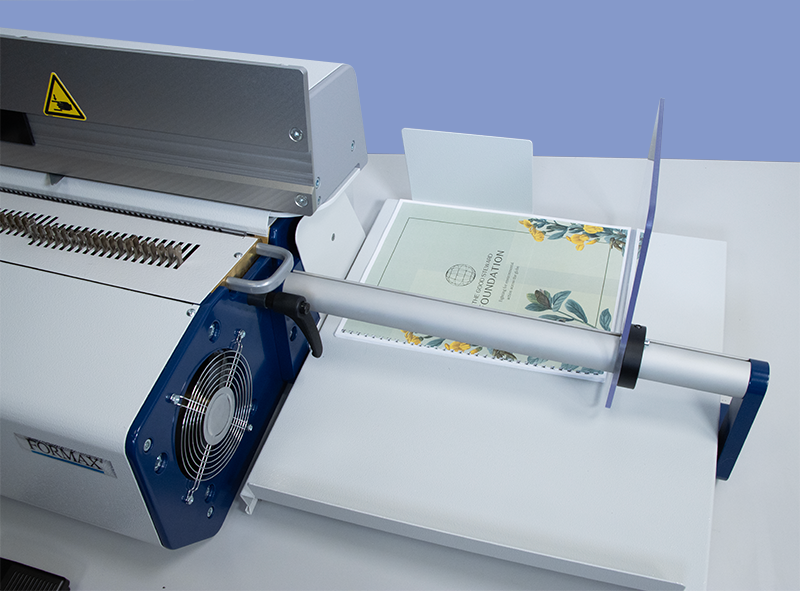

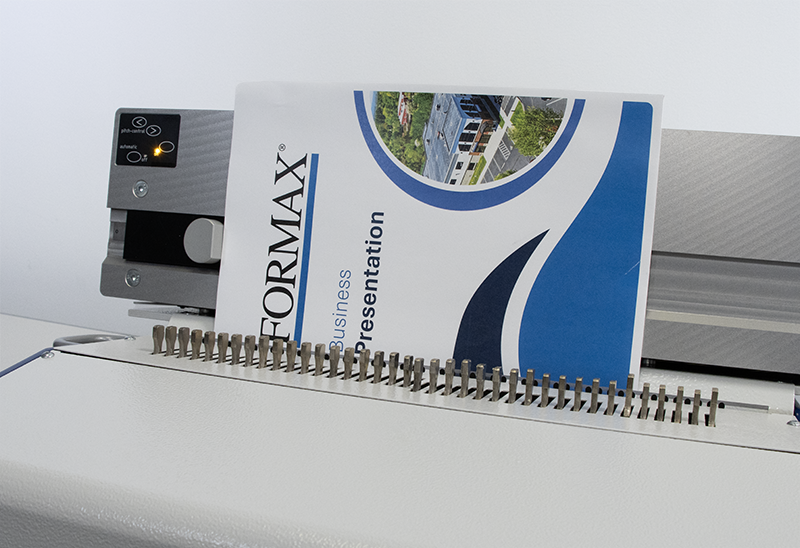

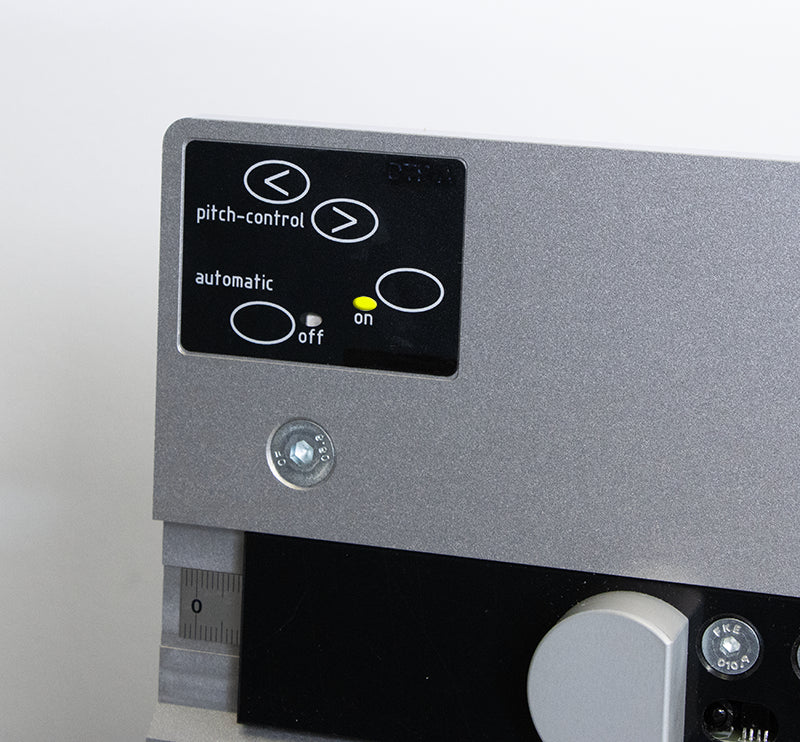

An intuitive control panel shows paper format, pitch adjustment, and auto sensor status with LED indicators. The adjustable paper stop features an auto sensor which instantly engages the punching mechanism, then automatically ejects sheets onto the adjustable catch tray, keeping them neat and ready for binding. Alternately, operators can use the convenient foot pedal for activation.

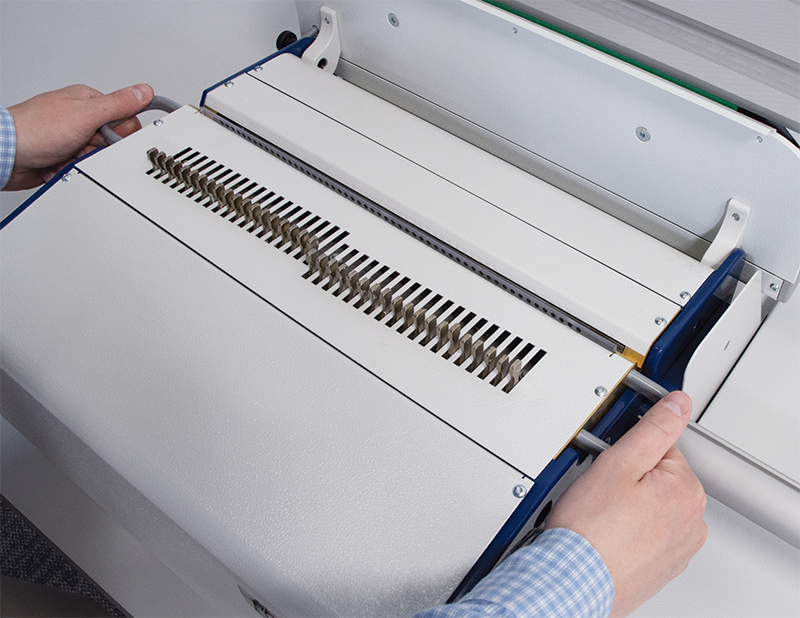

It accommodates a wide variety of heavy duty interchangeable dies which can be swapped easily without tools. Dies are available for double-loop wire, plastic comb, and spiral coil, in various pitches. With its combination of professional features, the Punch100A delivers up to three times the productivity of standard tabletop punching machines.

• 3:1 pitch, square 4x4 mm
• 3:1 pitch, square 4x4 mm with thumb cut
• 3:1 pitch, round 4 mm
• 3:1 pitch, round 4 mm with thumb cut
• 2:1 pitch, rectangle 5.5 x 3.5 mm
• 2:1 pitch, square 6x6 mm
• 2:1 pitch, round 6 mm
• Plastic comb binding, rectangle 8x3 mm
• Spiral coil binding in 0.25"pitch, 5x4 mm, oval
