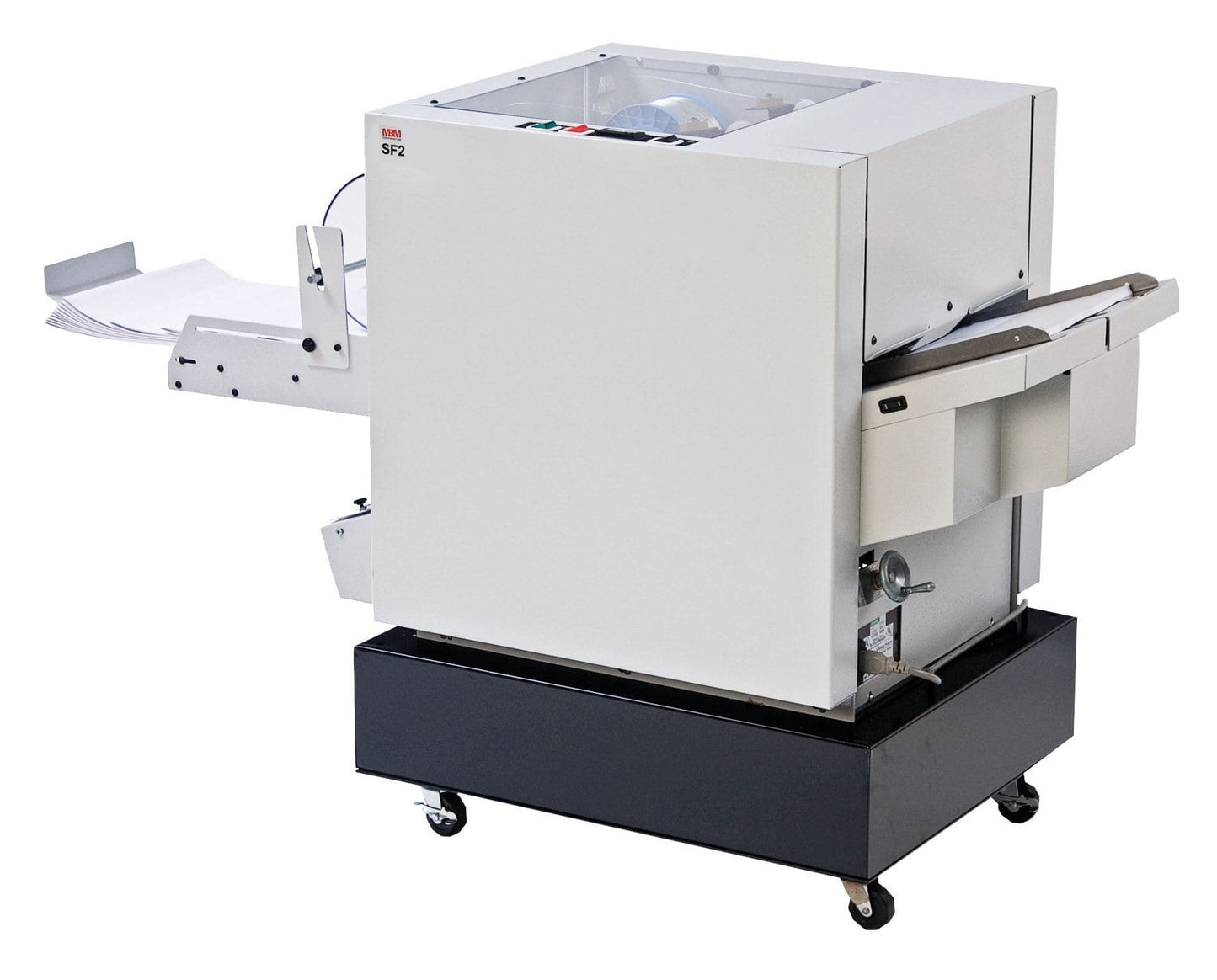

MBM SF-2 Bookletmaker

  • SKU: MBMSF2-0857
  • GTIN/UPC: 096224658363
  • Mfr. Part No.: BO0857
Sale price
$20,999.00
Sale price
$20,999.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the MBM SF-2 Bookletmaker

  • In-line face trimming of booklets
  • Jam detection
  • Electrical interface for communication with SF 2 Bookletmaking System
  • Safety interlock
  • See-through top cover

Features of the MBM SF-2 Bookletmaker

  • Wire-fed stitching system provides lower operating costs than bookletmakers using pre-formed staples
  • Produces booklets up to 100 pages*
  • Low maintenance—jogs, stitches, and folds up to 65,000 booklets without replacing wire spools
  • Runs on-line with a variety of collators (interface is included) including the MBM FC 10
  • Easy to use, push-button controls with 6 digit counter staple
  • Leg adjustment feature allows staple length to be custom fit to the size of the book being run
  • Heavy-duty clutch and bearings
  • Moveable, magnetic stitching heads
  • One-step threading for quick and easy set-up
  • The knife folds with dual fold rollers for crisp, consistent folds
  • Powered exit conveyor
  • Transparent safety access covers—the machine will not operate with covers in open position
  • Includes back jog, and stand with casters
  • Optionally activated clinch and on-line corner/side stitch gate
  • OPTIONAL FACE TRIMMER FOR SF 2 BOOKLETMAKER
  • Operates on-line with SF 2 booklet maker
  • Trims booklets up to 100 pages*
  • Powered exit conveyor
  • Transparent safety access cover—the machine will not operate with cover in open position

Description of the MBM SF2

The SF2 is MBM's top of the line wire-fed stitching system which is an extremeley efficient, cost-effective booklet making machine that's designed for high volume, industrial projects. Aside from its spectacular productivity, yielding up to 2,300 booklets per hour, the greatest advantage offered by the SF2 is found in its ultra high capacity wire spools, which provide lower operating costs than bookletmakers using pre-formed staples and allow you to produce up to 65,000 booklets without replacing a spool. This low-maintenance design allows the SF2 to automatically jog, stitch and fold virtually uninterrupted and, with the ability to interface online with a variety of collators (including the MBM FC 10), no job is too big.

In addition to its productivity, the SF2 is highly versatile and user-friendly, utilizing push-button controls with a 6 digit counter for easy operation and featuring a staple leg adjustment that allows you to alter the staple length to custom fit the size of the book being run. The moveable, magnetic stitching heads can be adjusted to stitch booklets in any position while the one-step threading ensures quick and easy set-up of any job. The SF2 uses a dual fold roller to create a crisp, consistent knife fold while the powered exit conveyor neatly stacks your finished booklets. An optional activated clinch and on-line corner/side stitch gate are also available add-ons for the SF2 bookletmaker (call for more information).

Aside from its automated all-in-one bookletmaking abilities, which include jogging, folding and stapling, the SF2 also features an optional face trimmer specifically designed to work on-line with the SF2 bookletmaker. This add-on piece of equipment will automatically trim booklets up to 100 pages, linking in directly with the bookletmaker and using its powered exit conveyor to neatly eject the stitched and trimmed finished booklets.

Manufacturer Name MBM
Capacity: Minimum 4.00" cut width x 4.13" to fold (trim length) 2 sheets 20# bond thickness
Capacity: Maximum 12.71" cut width x 9.00" to fold (trim length) 50 sheets 20# bond (.20")
Max Pages in Booklet 100
Max Speed 2,400 booklets/hour
Max Paper Size 12 3/4" x 18 1/2"
Model # SF 2 Trimmer
Weight 236 lbs.
Height 27.38"
Width 26.42"
Length 25.90" (without discharge table) 48.44" ( with discharge table fully extended)
Voltage 115 Volts; other voltages available
Warranty Click here to view warranty
Shipping Weight 237.0 lbs.
Shipping Length 28
Shipping Width 30
Shipping Height 30
