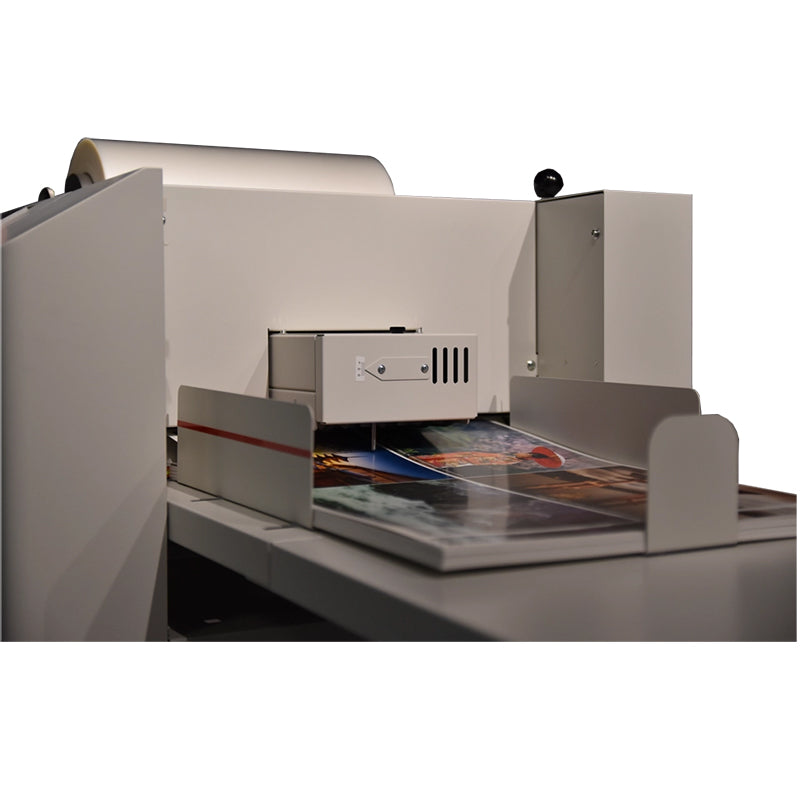

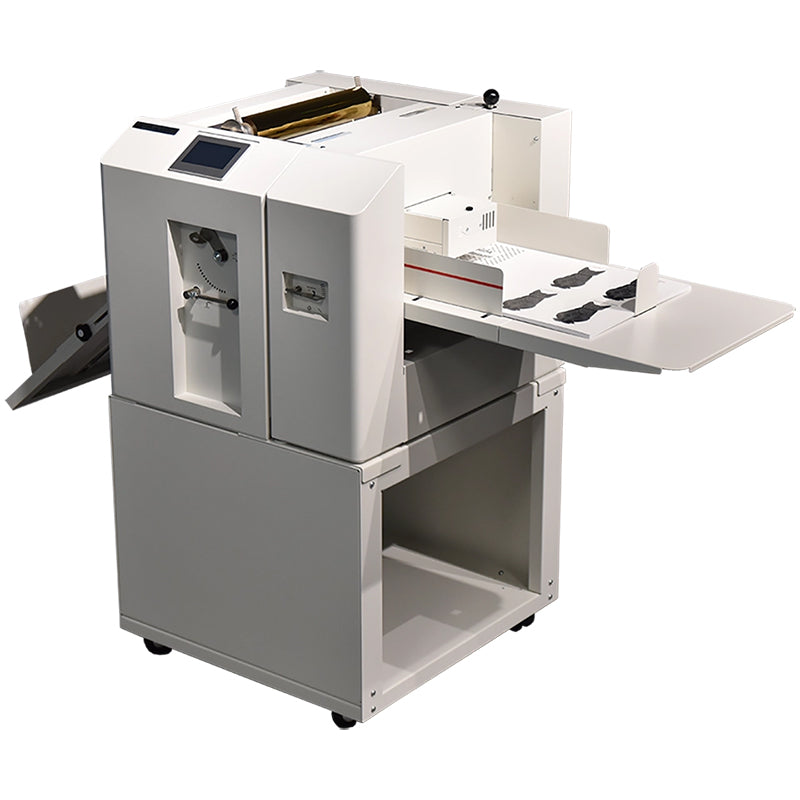

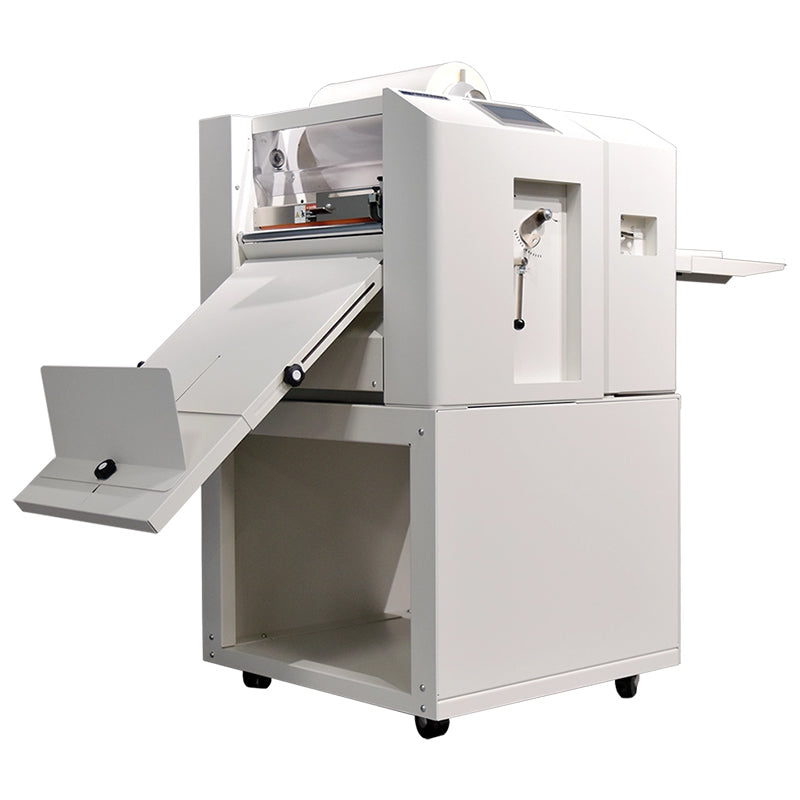

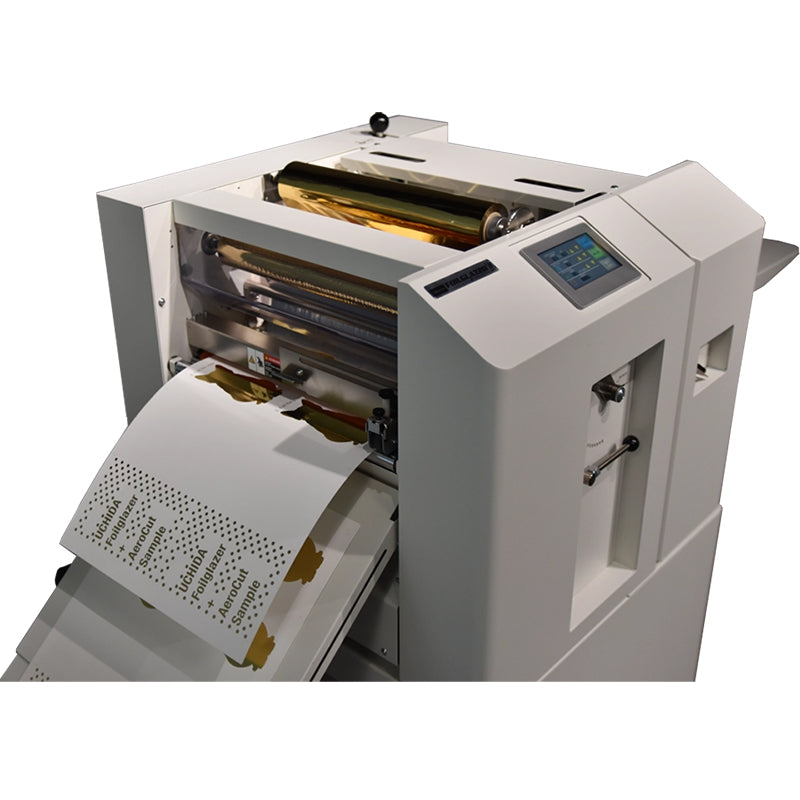

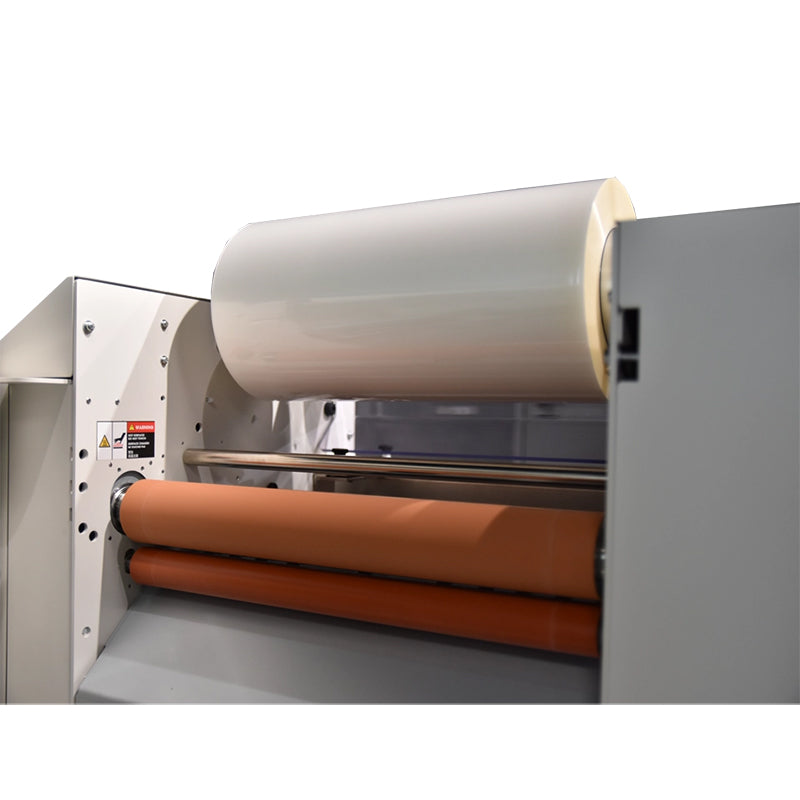

MBM FoilGlazer II Foiler and Laminator

Basic Specs of the MBM FoilGlazer II

• Speed for Laminating: 16.4’/min.
• Speed for Foilglazing: 9.84’/min.
• Sheet Capacity: 2" Stack
• Paper Weight: 110 – 400 gsm* (32lb bond – 150lb cover)
• Paper Size for Laminating: 11.69” x 8.26” – 14.37” x 23.62”
• Paper Size for Foilglazing: 5.82” x 8.26” – 14.37” x 23.62”

*Production rates are based on optimal operating conditions and may vary depending on stock and environmental conditions.

Features of the MBM FoilGlazer II

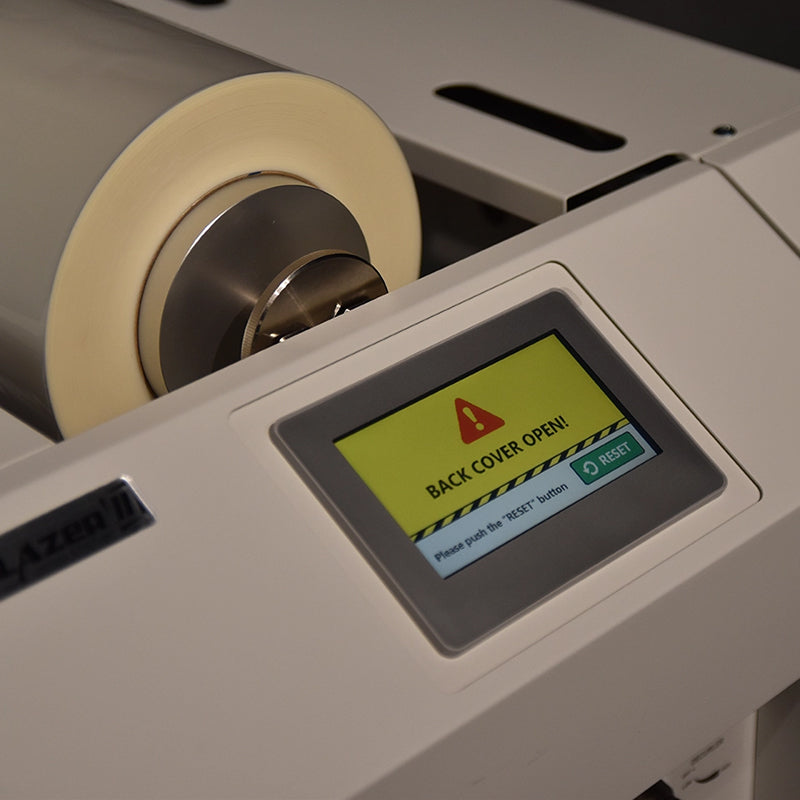

• User-Friendly Interface: Features a 4.3” color touch screen with intuitive controls, including an inching switch and pressure roller lifting lever for easy operation and setup.
• Versatile Feeding System: Equipped with an automatic air suction feeder that consistently handles various print stocks (110gsm to 400gsm) and laminating films, ensuring smooth processing of digital, short-run jobs.

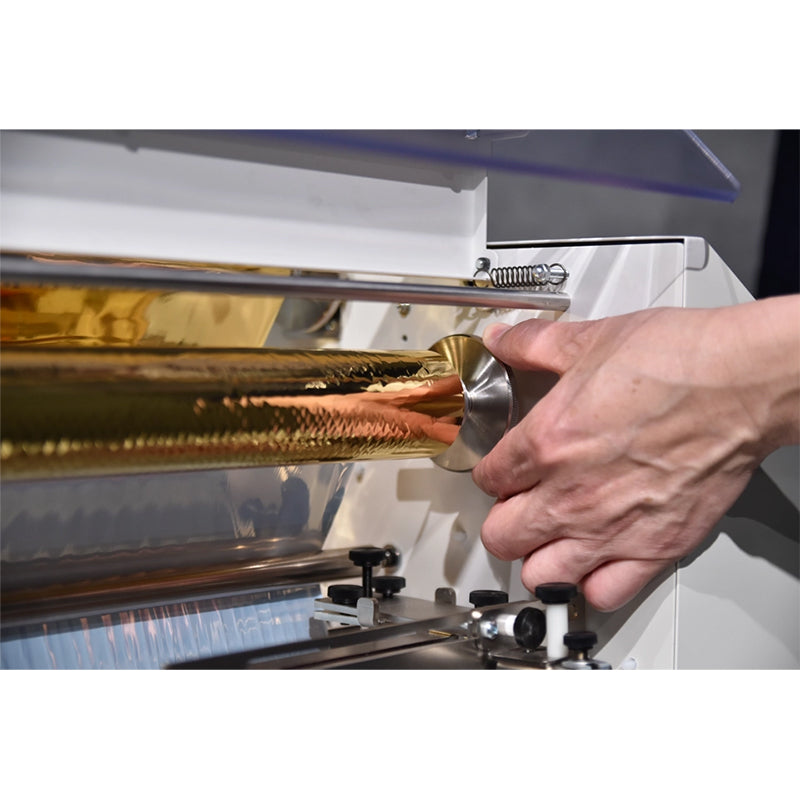

• On-Demand Foil Fusing: Enables foil glazing with any color foil rolls on black toner, perfect for adding high-value embellishments to digitally printed materials.
• Efficient Productivity: Supports laminating speeds up to 16.4 ft/min and foil glazing at 9.84 ft/min, with an automatic film cutting mechanism allowing hands-free, continuous operation.
• Compact & Robust Design: Accommodates paper sizes up to 14.3” x 23.6”, weighs 254 lbs, and includes foldable feeder for easy film loading and maintenance, making it ideal for on-demand and short-run finishing needs.
• Compressor Requirements: Requires an external air compressor with a minimum discharge of 0.18 cfm, tank capacity over 1.1 gallons, tube diameter of 6mm OD and 4mm ID, and minimum pressure of 0.6 MPa (87 psi) for optimal operation.
