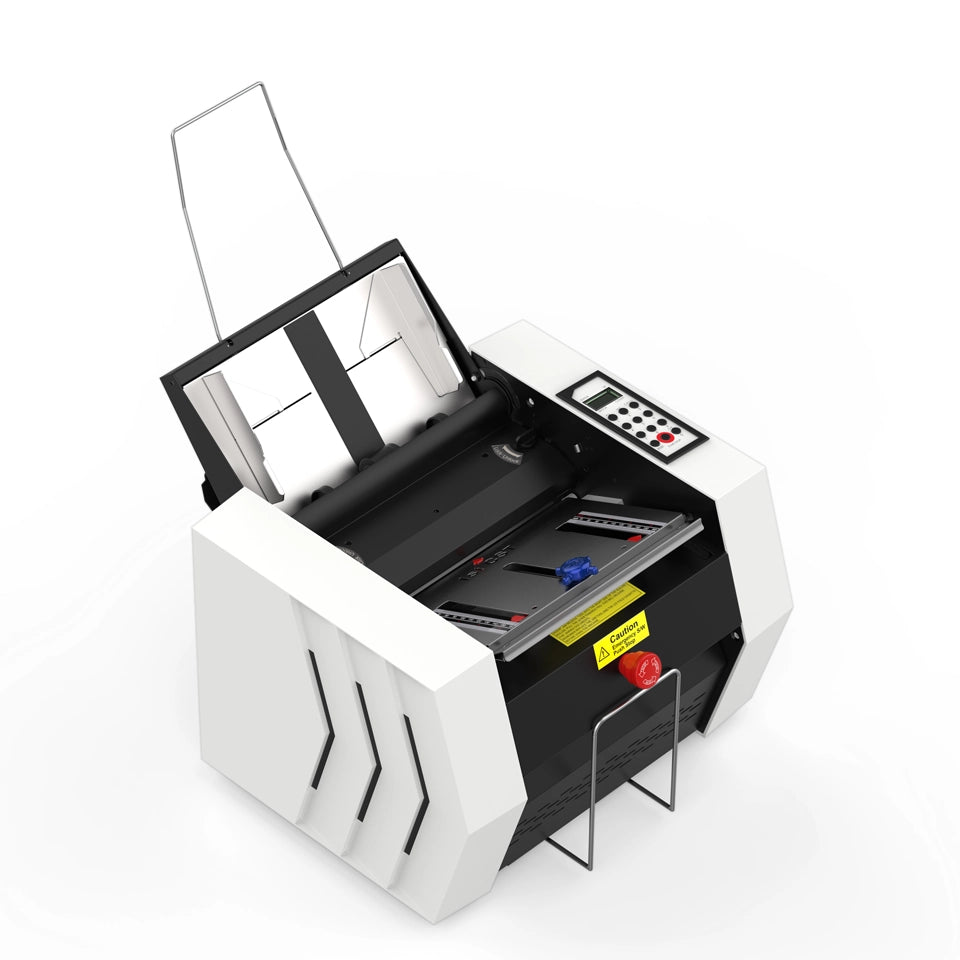

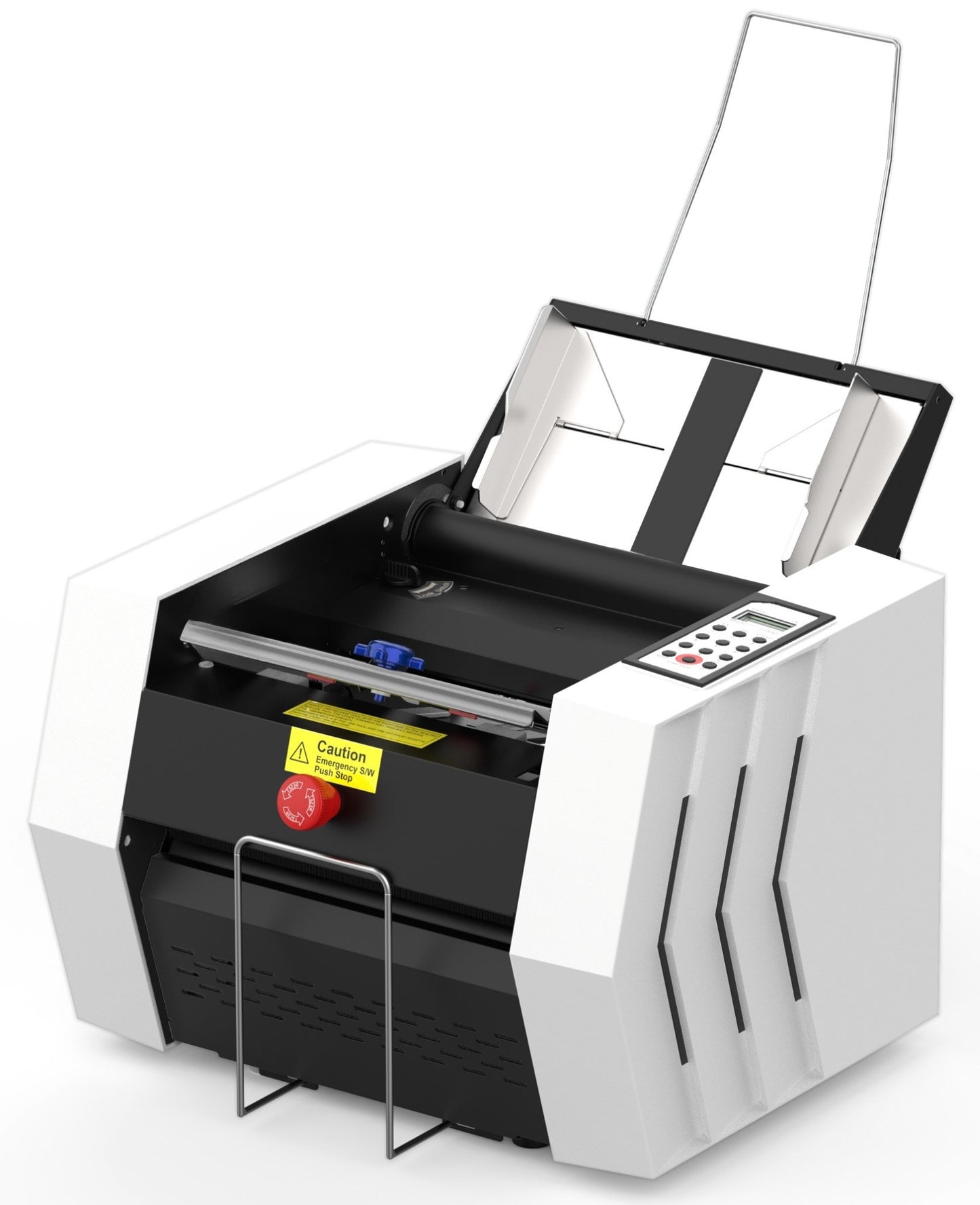

MBM ES5600 Pressure Sealer
- SKU: MBMES5600
- GTIN/UPC: 096224656420
- Mfr. Part No.: ES0784
Call us at (800) 243-9226
FREE GROUND SHIPPING within the contiguous U.S.
Basic Specs of the MBM ES 5600 Pressure Sealer
- Speed: 5,500 sheets/hour
- Sheet Capacity: 150 pressure seal forms
- Paper Size: 9''W x 14'' D
- Paper Weight: 16 to 30 lbs.
- Electrical: 115 V, 60 Hz
- Dimensions: 15'' D x 13'' W x 11'' H
- Weight: 54 lbs.
Features of the MBM ES 5600 Pressure Sealer
- Convenient, compact and dynamic pressure sealer ideal for the office desktop.
- Double feed detection to stop misfeeds.
- Exclusive angled seal technology.

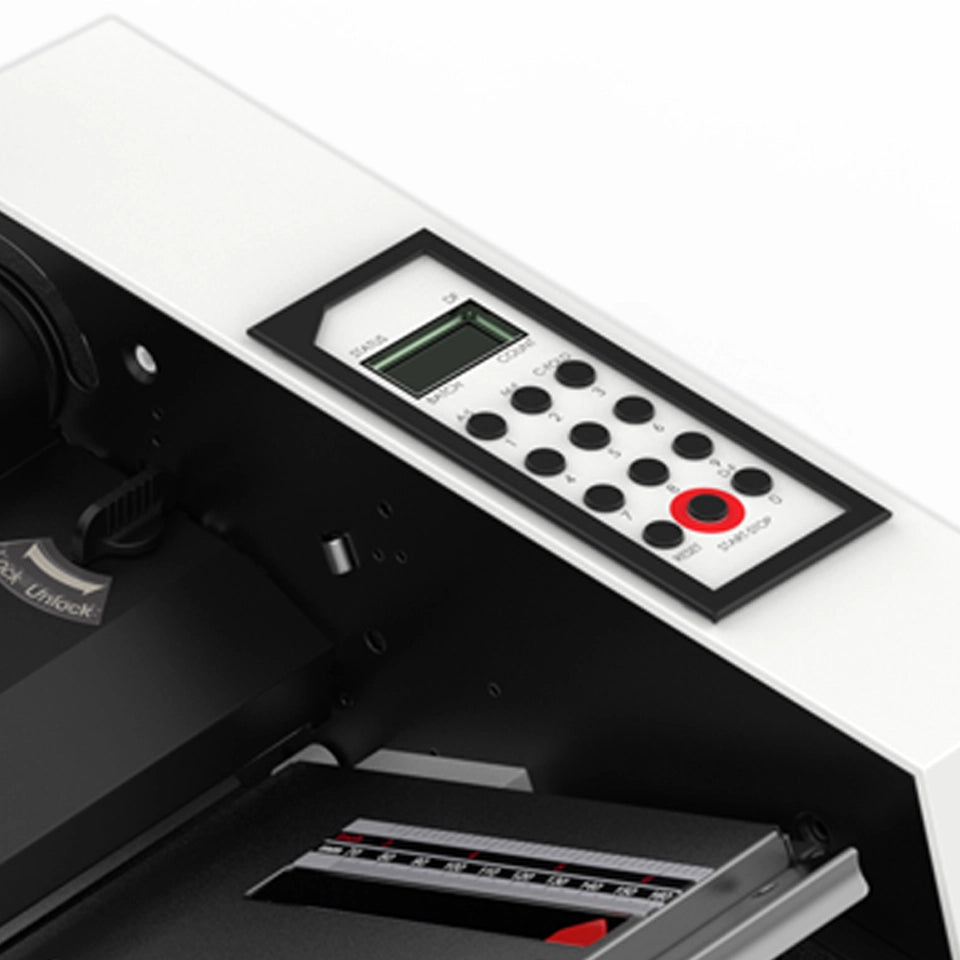

- LCD touchpad controls with counter.
- Processes more than 5,500 forms per hour.

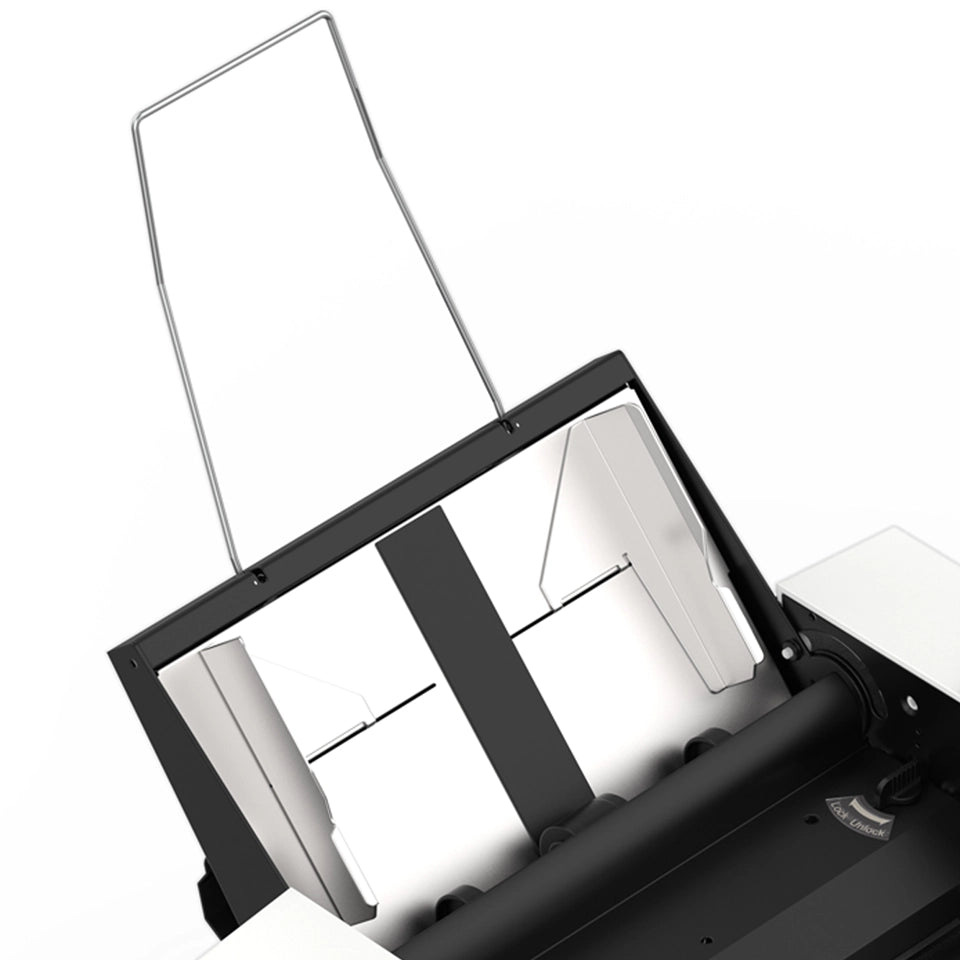

- Deep 150 sheet feed table.
- Seals single-sheet self-mailers.
- No envelope needed.
- The compact and dynamic design features a small footprint, which is ideal for the office desktop.
- Includes a long 240mm fold plate to handle all folds except 14” C fold.
Fold Types of the MBM ES 5600 Pressure Sealer
There are four different fold types available for the ES 5600:
(1) Letter fold (Tri-fold, C-fold),
(2) Half-fold (Single fold),
(3) Z-fold (Accordion, Zig Zag), and
(4) Double-Parallel
(1)
(2)
(3)
(4)
Description of the MBM ES 5600 Pressure Sealer
The MBM ES5600 pressure sealer is a convenient desktop unit with great capability. Use the ES5600 to fold and seal checks, invoices, tax forms, bills, notices, and more at a speed of 5,500 pieces per hour. A pressure sealer is a cost-efficient solution for mailers, saving time and money otherwise spent on envelopes.

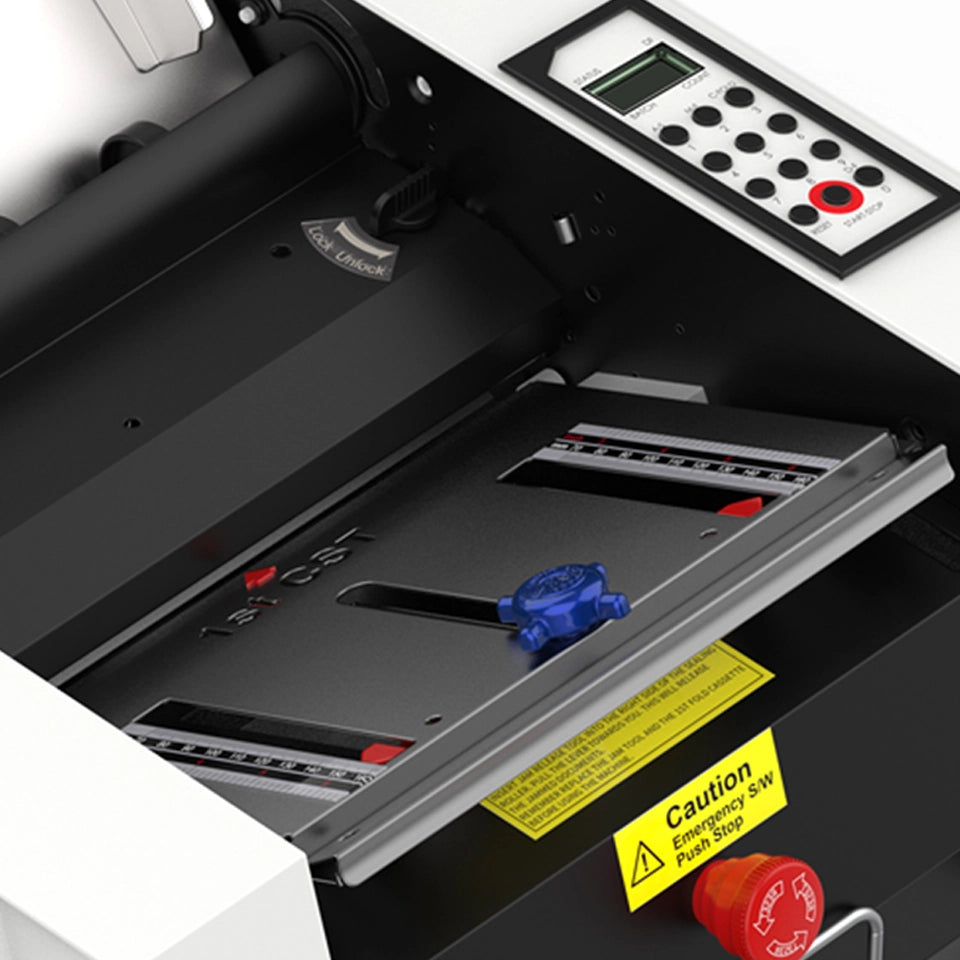

The ES5600 has a deep feed table that can hold up to 150 sheets of paper at a time. It is equipped with advanced sensors that can detect double feeds and immediately stop sealing before they can cause a jam. Angled seal technology ensures that edges are clean and crisp for a secure seal every time. With the LCD control panel, users can monitor the piece and batch counter to keep track of items and select fold settings. The MBM ES 5600 accepts paper sized up to 9"x14". Use the setting knobs to easily adjust the fold plates into multiple configurations: 11" Z, V; 14" Z, EZ, V; Optional C Fold.
At only 54 lbs, the compact and lightweight ES5600 is ideal for any office desktop. It can handle the needs of multiple people with its monthly duty cycle of 30,000 finished pieces.
Please select your preferred download file from below.
| Manufacturer Name | MBM |
|---|---|
| Feed Type | Friction-fed |
| Fold Adjustment Setting | Automatic fold adjustment |
| Feed Tray Capacity | 150 |
| Speed | 5,500 forms/hour |
| Programmable Presets | 18 |
| Fold Types | V Fold, Z Fold, C Fold, Double Parallel Fold |
| Accepted Paper Sizes | up to 9"W x 14" D |
| Accepted Paper Weights | 16 to 30 lbs. |
| Model # | ES 5500 |
| Weight | 54 lbs. |
| Height | 11" |
| Width | 13" |
| Depth | 15" |
| Voltage | 115 Volts; other voltages available |
| Warranty | Click here to view warranty |
| Shipping Weight | 84.0 lbs. |
