Martin Yale Mark VII Pro Series AirFeed Paper Folder

  • SKU: MYLMVIIAF
  • Max Paper Weight: 147 g/m²
  • Max Paper Size: 14" x 20"
  • Adjustment: Manual
  • Feed Type: Air Feed
Sale price
Sale price
$11,327.91
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product qualifies for Free Freight Shipping in the contiguous U.S.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

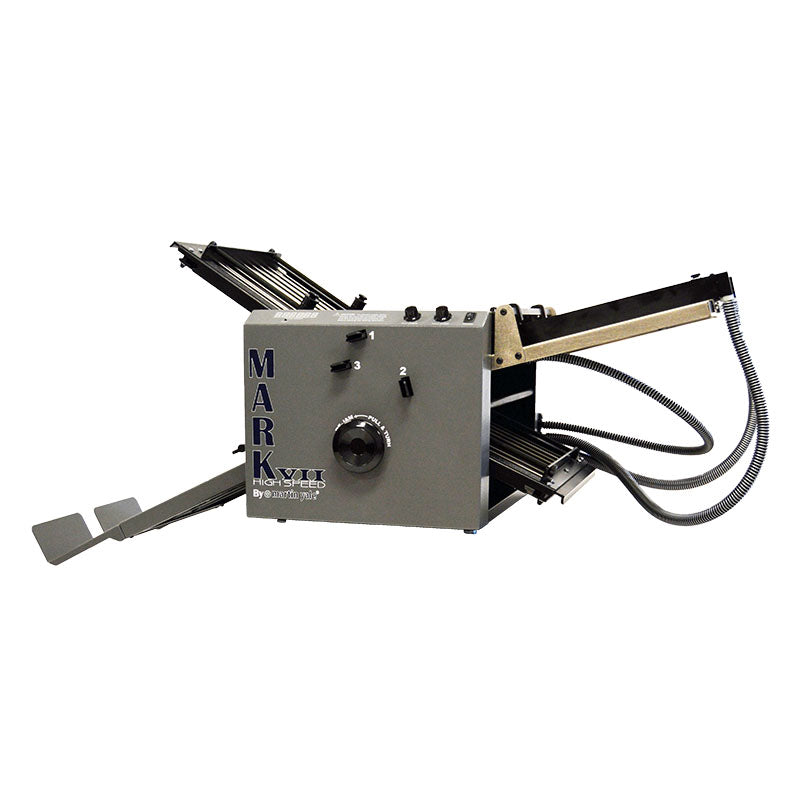

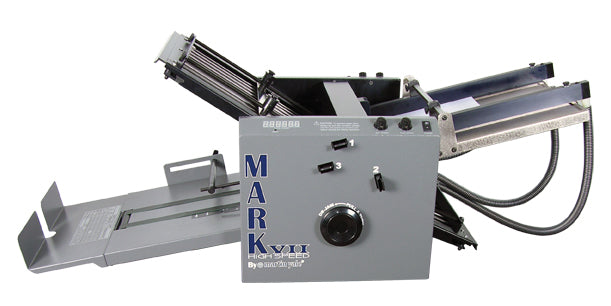

The Mark VII AirFeed Paper Folder is a premium folding machine that is ideal for print shops, larger offices and associations/clubs with high demand folding projects.

Basic Specs of the Mark VII AirFeed Paper Folder

  • Feed Type: Air Feed
  • Feed Tray Capacity: 350 sheets
  • Paper Sizes: 3.5" x 4.25" to 14" x 20"; A3, A4, A5
  • Paper Weights: 16 lb bond to 80 lb index; 60 gsm to 147 gsm
  • Fold Types: Letter, Half, Z-fold, Double-Parallel, Gate, Engineer and Church
  • Benchmark Speed: 35,000 sheets per hour

Features of the Mark VII AirFeed Folder

  • Adjustable fold rollers.
  • Handles coated, laser, and copier paper types.
  • Variable speed conveyor, independent of fold rollers.
  • Continuous bottom feed system with manual adjust sheet separator.
  • Manual paper guide and skew adjustment.
  • Removable cartridge allows for perforating and/or scoring.
  • Handles both laser and copier paper.
  • LED fold counter.
  • De-jam knob.

Fold Types for the Martin Yale Mark VII AirFeed Folder

There are seven different fold types available for the Mark VII AirFeed Folder: (1) Letter fold (Tri-fold, C-fold), (2) Half-fold (Single fold), (3) Z-fold (Accordion, Zig Zag), (4) Double-Parallel, (5) Gate (Open Gate, Brochure), (6) Engineering (Short Z, Fold Out, Half Accordion), and (7) Church (Right Angle fold).

(1)Letter/Tri/C Fold (2)Half/Single Fold (3)Z/Accordion Fold (4)Double Parallel Fold (5)Gate/Brochure Fold (6)Engineer Fold (7)Church/Right-Angle Fold

If you're looking for added mobility and storage to your Mark VII AirFeed Folding Machine, add the Martin Yale Mark VII AirFeed Cart to your cart.

Video Demo of the Martin Yale Mark VII AirFeed Paper Folder

Description of the Martin Yale Mark VII AirFeed Paper Folder

The Mark VII AirFeed paper folder offers all of the benefits that come with the friction-fed model but with the added AirFeed technology. As an upgrade from the Mark VII folder, this AirFeed model is perfect for sensitive paper stock, including gloss, coated, laser, and copier paper types. Designed for continuous bottom feeding, the vacuum pulls one sheet at a time into the rollers to produce crisp folds. This machine adjusts to the paper thickness to prevent multiple sheet feeding. High speed folding is critical for any office looking to produce thousands of finished documents a day and the Mark VII AirFeed is up to the task. Folding at a rate of up to 35,000 sheets per hour, the Mark VII AirFeed's feed tray holds up to 300 sheets of 20 lb bond paper. This is a substantial amount and will help reduce the number of times required to refill the feed tray. The Mark VII AirFeed is quite flexible, handling a minimum paper size of 3.5" x 4.24" to a maximum of 14" x 20". A variable speed function allows for ultimate control and the various speed conveyor is independent of the fold rollers. Choose from seven different fold types: Letter, Half, Z-Fold, Double-Parallel, Gate, Engineering, and Church Fold.

The manual paper guide and skew adjustments guarantee you get the fold settings precise for each and every folding job. The Mark VII comes complete with removable cartridges for perf and/or scoring. Want to know how many sheets you've folded in a given hour? The handy LED counter displays and keeps track of how many pages were folded for you! Weighing in at 243 lbs, the Mark VII offers dimensions of 50.5" W x 23.5" D x 19.25" H assembled. This AirFeed folder is perfect for tabletop operation in any print shop, office, or mail room.

Please select your preferred download file from below.

For additional resources, please see:

Warranty: For this paper folding machine, Martin Yale's general warranty is 180-days parts and labor. Some restrictions and conditions may apply.

Manufacturer Name Martin Yale
Model # MKVIIAIRFEED
Feed Type AirFeed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity 350 of 20-lb. bond
Fold Speed 35,000 sheets/hour
Fold Types Double Letter/Baronial, Double Parallel, Gate, Engineering, Letter or C-Fold, Single, Z-Fold
Variable Speed Yes
Counter Yes
Accepted Paper Sizes 3-1/2" x 4-1/4" to 14" x 20"
Accepted Paper Weights 16-lb. bond to 80-lb. index (60 to 147 gsm)
Weight 243 lbs
Height 14 1/4" (19 1/4")
Width 43" (50 1/2")
Depth 23 1/2"
Voltage 100-120 Volts
Manufacturer Part Number MKVIIAIRFEED
