Martin Yale 1701 Paper Folder (Discontinued)

  • SKU: MYL1701

This product has been discontinued by the manufacturer. The new model that we recommend is the Martin Yale 1711. If you have any questions, please click the Request a Quote button below, or call us at (800) 243-9226.

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

FREE GROUND SHIPPING within the contiguous U.S.

Features of the 1701 Martin Yale Folder

  • Replaced by the Martin Yale 1711 Paper Folder
  • Automatically feeds and folds a stack of documents up to 8 1/2" x 14"
  • Sheet capacity of 150 sheets
  • Electronic controls automatically pre-program letter, legal and A4 paper sizes with total of 6 preset folds and electronically adjustable fold tables for custom folds
  • Different folds: letter (except with 8 1/2" x 14" size paper), half, z-fold, double parallel, right-angle and baronial
  • Fanning of paper not needed
  • Sheet sizes from 3 1/2" X 5" to 8 1/2" X 14", 16 lb. bond to 70 lb. index
  • Stapled sets of up to 5 sheets can be folded via the feed table bypass
  • Auto jam detect and Auto shut-off
  • Conveyor exit table

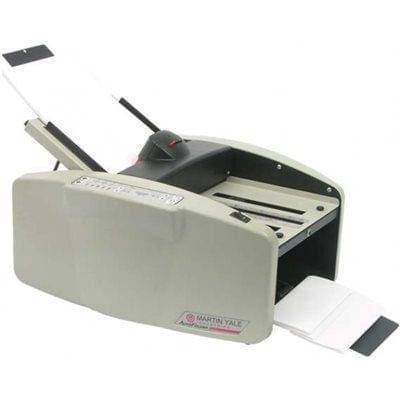

The Martin Yale 1701 letter folder is convenient and dependable. Paper fanning is unnecessary, and the easy-to-use electronic controls boost efficiency. With its easy maintenance and operation, this paper folder is great for large mailrooms and offices.

Description of the Martin Yale 1701 Electronic Paper Folder

The 1701Martin Yale AutoFolder paper folder, similar to the 1601, is convenient and simple to use. The unit uses an auto-feed friction system, with easily-manageable electronic controls, letter, legal and A-4 paper sizes pre-programmed in. Also preset are 6 standard folds: letter, half, z-fold, right angle, double parallel and baronial. There are programmable customized folds, as well.

This machine folder produces a variety of folds; letter, z-fold, half, double parallel, right angle and baronial. 150 sheets of paper can be loaded into the machine at once, and even stapled sets up to 5 sheets are perfectly acceptable. Folding can be done at a rate of 9,000 sheets per hour. With this machine, a paper fanning is unnecessary; the user can simply put the paper in. The exit conveyor neatly stacks the folded paper. With its easy maintenance, the Martin Yale 1701 Ease-of-Use Autofolder is suitable for larger mailrooms and businesses.


  • Easy to set up and use, right out of the box; you simply need to plug it in and press start.
  • Manual bypass makes possible multi-sheet (stapled) feeding.

Manufacturer Name Martin Yale
Model # 1701
Feed Type Friction-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity Up to 150
Fold Speed 9,000 sheets/hour
Fold Types Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Right Angle Fold, Baronial Fold
Pre-programmed Standard Folds 6
Accepted Paper Sizes 3 1/2'' x 5'' to 8 1/2'' x 14''
Accepted Paper Weights 16 to 70 lbs.
Weight 39 lbs.
Height 17.2''
Width 20.6''
Depth 15.3''
Voltage 115 Volts; other voltages available

UPC 011991017014
Shipping Weight 39.0000
