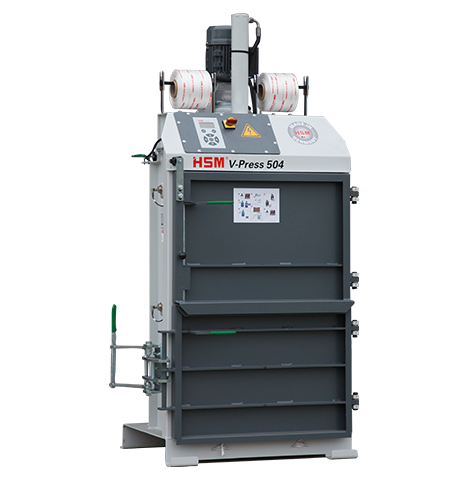

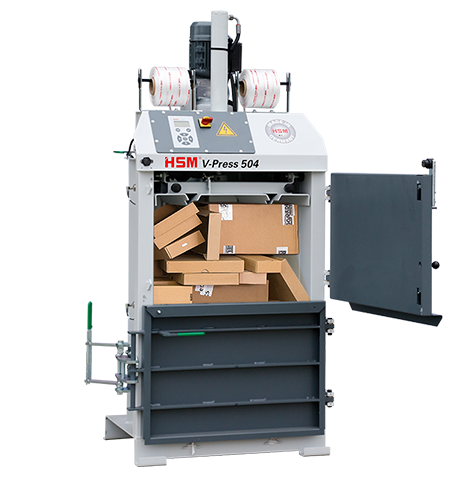

HSM V-Press 504 Vertical Baler
- SKU: HSMV-PRESS504
- Mfr. Part No.: 6151213
This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.
Call us at (800) 243-9226
Description of the HSM V-Press 504 Vertical Baler
The entry-level model HSM V-Press 504 allows for the economical disposal of your packaging waste. It compresses materials such as cardboard and film by up to 95%, saves space and lowers costs. Its low installation height and smaller surface area mean it will fit in tighter spaces where larger balers can't. Don't let the smaller size fool you, the V-Press 504 features 4 tons of pressing power and is able to output 3 to 6 bales per hour. It quickly compresses cardboard and plastic film into bales which can easily be removed from the machine via hand truck.

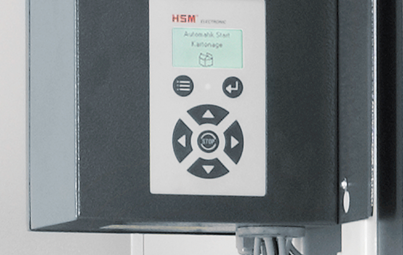

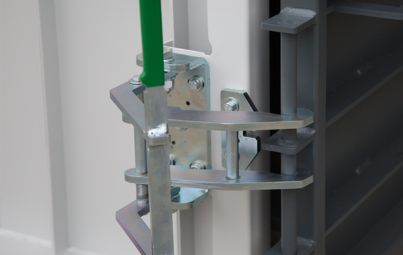

Safe and simple to use, the V-Press 504 features a bell-crank door lever. The pressing process starts automatically when the door is closed, and automatically stops when the door is opened via safety switch. The membrane keypad and graphic display relays the current operating status of the machine. Easy to operate and robust, the HSM V-Press 504 Vertical Baler will prove to be a worthwhile investment for your company.
| Manufacturer Name | HSM |
|---|---|
| Model Number | 504 |
| Pressing Material | Cardboard, Mixed Paper, Plastic Film |
| Pressing Power | 4 tons |
| Cycle Time | 27 seconds |
| Hourly Bale Output | 3-6 |
| Loading Aperture | 27.6" W x 18.5" H |
| Press Chamber Size | 40.2" H x 27.6" W x 19.7" D |
| Bale Weight | Up to 110 lbs. |
| Bale Dimensions | 27.6" L x 19.7" W x 23.6" H (max) |
| Motor | 1.3 HP |
| Weight | 661.4 lbs |
| Dimensions | 78.4" H x 40.2" W x 29.8" D |
| Warranty | Click here to view warranty |
