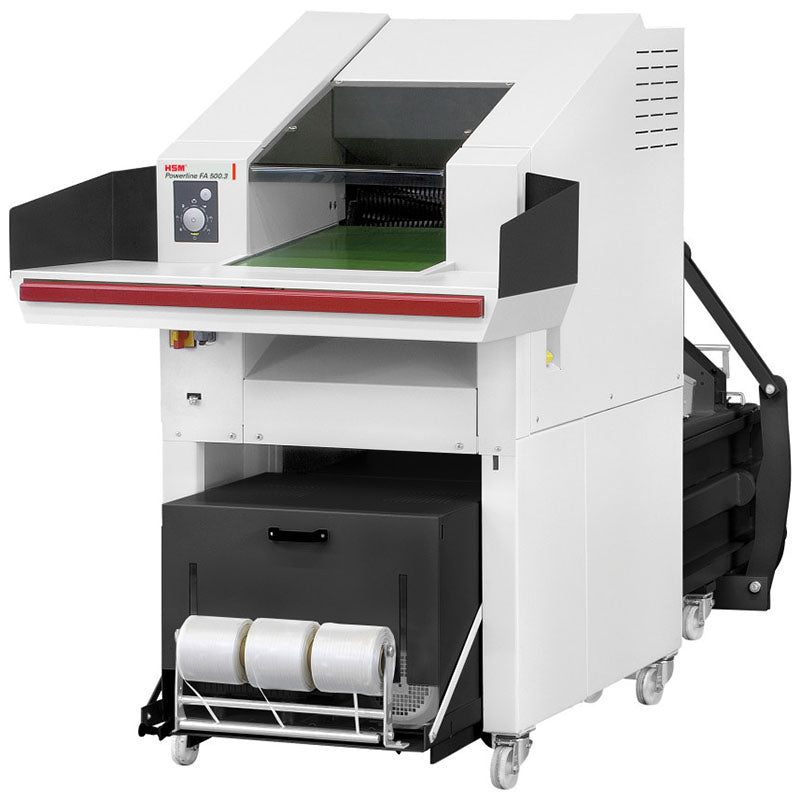

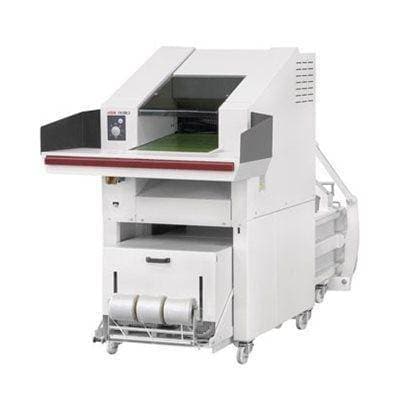

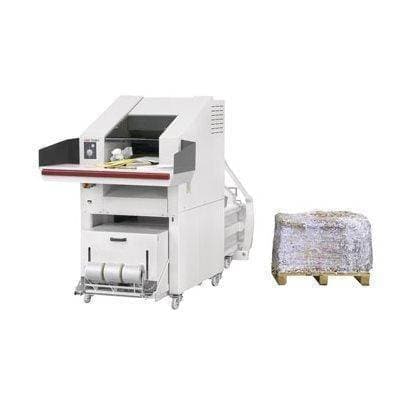

HSM SP 5088 1/16" x 9/16" Shredder Baler

HSM SP 5088 1/16" x 9/16" Shredder Baler

Basic Specs of the HSM SP 5088 Shredder Baler

  • Shred Size: 0.07"
  • Throat Width: 19.7"
  • Capacity: Up to 130 sheets *
  • Speed: 8.27" per second
  • Power: 400V/50Hz/11500W
  • Pressing Power:85kN
  • Shipping Wt: 3660 lbs
  • Dimensions: 71"H x 29"W x 127"D
  • Baler Dimensions: 15.7" - 37.5" x L x 19.7" W x 19.7" H

Features of the HSM SP 5088 Shredder Baler

  • Multifunctional keypad control for constant operation and reverse as well as automatic reverse
  • Integrated, automatic oiler for cutting unit
  • Emergency stop-rail in front of loading table for more user safety
  • Photoelectric cell for automatic control of the pressing process

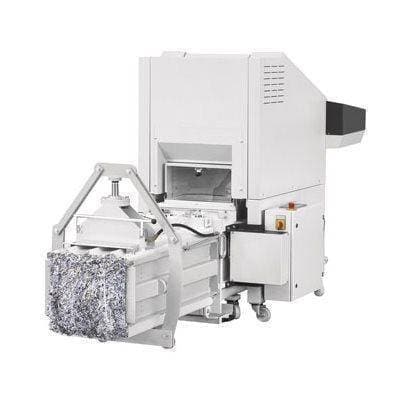

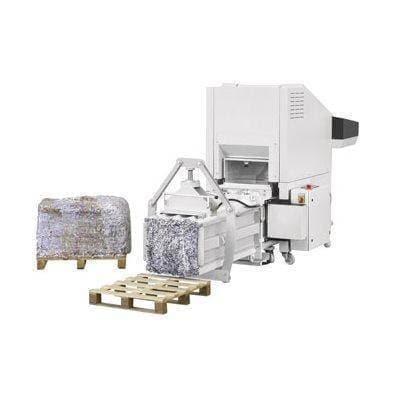

  • Baler with loading aperture/inspection flap for non-confidential documents or cardboard
  • Manual 3-fold bale strapping with continuous polyester tape

The HSM SP 5088 shredder/baler combination unit breaks down your paper materials into security level 4 pieces to produce perfect bales.






SKU: HSMSP5088-2993414114 ISBN: 096224643543
Request A Quote

Secured & Safe Checkout :

trust badge

Video Demo of the HSM SP 5088 0.07" x 0.59" 3x400V Shredder Baler

Description of the HSM SP 5088 0.07" x 0.59" 3x400V Shredder Baler

The HSM SP 5088 features quality shredding and powerful pressing capability. Shredding with proven efficiency, the sturdy gear motor offers a chain drive system for maximum throughput capacity. Accepting 200kg per hour, the HSM 5088 tears through approximately 12-130 sheets. This well integrated system features sophisticated cutting unit technology, tried-and-tested for reliable data destruction. Built with a high level of user safety, the HSM 5088 features an emergency stop-rail on the front of the loading table. Your operation can be halted immediately if a situation arises. An extremely wide loading table accommodates your materials while the electric conveyor pulls your items into the shredder. The cutting rollers are made of solid steel, strong enough to destroy paper, three-ring binders, cardboard, CDs, and more! Your once whole materials are transformed into tiny, 1/16" x 9/16" particles. These level 4 pieces move from the shredder into the baling unit, where they are collected in the filling hatch. The photoelectric cell detects the shredded waste and automatically begins the pressing process. Non-confidential documents and cardboard pieces can be separated and inspected in a different hatch. As bales are formed, they can be strapped manually with polyester tape. Standard equipment includes a polythene bag attachment and 5 plastic bags. An integrated, automatic oiler lubricates the cutting head during operation, decreasing manual user maintenance. Durable mobility casters are sturdy enough to move this beast of a machine around your warehouse or production area. The HSM SP 5088 weighs a massive 3946 lbs. (1790kg).

* Please note, capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.

Manufacturer Name HSM
Throat Size/Feed Opening 19 11/16"
Shred Speed 8.27"/s
Shred Size 0.07"
Security Level 4/P-5
Cut Type Cross Cut
Sheet Capacity Up to 130 sheets
NSA Evaluated N/A
Shreds Credit Cards? Yes
Shreds Paper Clips? Yes
Shreds Staples? Yes
Peak HP 11500 W
Disclosures Capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
Continuous Motor Yes
Model # 5088
Weight 3660 lbs
Height 71"
Width 49"
Depth 127"
Voltage Power: 400V, 3 Ph
Warranty

Shipping Weight 3660.0000
