Material intake via large loading table and electric conveyor belt
Multi-functional operating and display element for continuous and reverse operation
Automatic reverse
Modern PLC press control unit with multi-language display and menu navigation
Automatic photoelectric control of the pressing process
Integrated, automatic oiler for the cutting unit
Material compressed directly in the waste bag (standard equipment: 5 plastic bags)
Display to indicate operating status and "œbale ready"
Integrated emergency-stop rail on the table

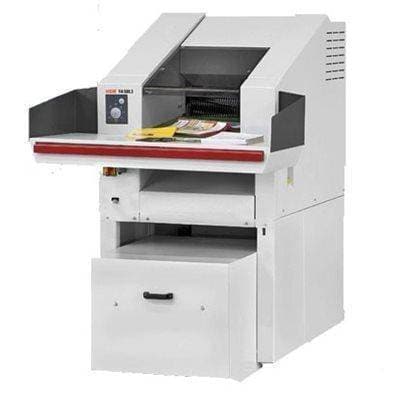

The HSM SP 5080 shredder/baler features a high performance electric conveyor belt to pull your materials into the powerful shredder.
Video Demo of the 0.24" x 1.57" - 2" 3x400V Shredder Baler
Description of the 0.24" x 1.57" - 2" 3x400V Shredder Baler
The perfect solution to your industrial or professional data shredding, the HSM SP 5080 helps protect your office's reputation. Although this shredder-baler looks complicated, operating this machine is surprisingly easy. No need to manually feed your materials into shredder's throat. Simply load your materials onto the high-performance electric conveyor and let the 5080 do the rest. This conveyor pulls your items right into the shredder, assuring user safety. A spacious loading table is perfect for excess materials waiting to be pulled into the feed opening. Your documents are broken down at a rate of 210mm per second. The result: 0.24" x 1.57" - 2" security level 3 particles. The HSM 5080 can power through approximately 1058 lbs per hour*. The multi-functional operating and display element allows for continuous operation. The HSM 5080 also features a manual and automatic reverse option. Should your paper get jammed, the automatic reverse will activate to work through the problem. The cutting unit is maintained with the integrated automatic oiler, which helps extend the life of your shredder.

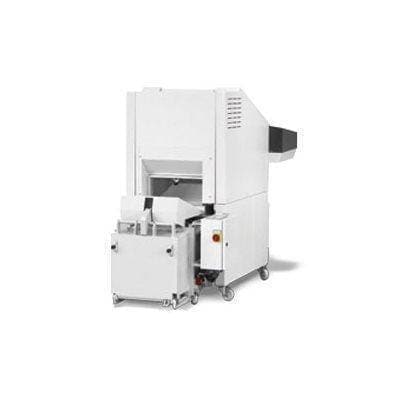

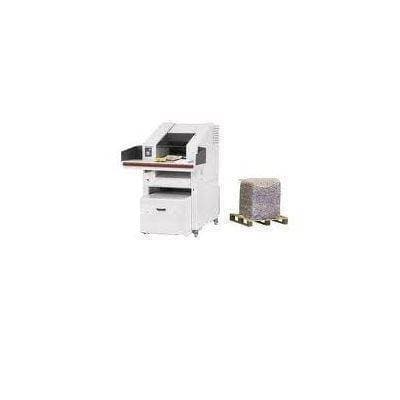

After your materials are destroyed, the baler assumes control. This space-saving baling press features a modern PLC press control with multi-language display and convenient menu navigation. Shredded pieces fall into the pressing chamber, where your particles are formed into 31.5" L x 22" W x 19" H bales . Once baled, your materials are compressed directly into a waste bag. The convenient display indicates operating status and " bale ready." To guarantee a constant flow of production, the shredding and pressing process is conducted simultaneously. Is your production area cramped with restricted amount of space? This powerhouse machine weighs over 2976 lbs., yet its compact design promises that it will take up minimal space in your crowded warehouse.
* Please note, capacity varies with grain, size, quality & paper weight and sufficient power supply. ** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
Manufacturer Name
HSM
Throat Size/Feed Opening
19 11/16"
Shred Speed
8.27"/s
Shred Size
0.24"
Bin Capacity
1.57" - 2"
Security Level
3/P-4
Cut Type
Cross Cut
Sheet Capacity
Up to 450 sheets
NSA Evaluated
N/A
Shreds Credit Cards?
Yes
Shreds Paper Clips?
Yes
Shreds Staples?
Yes
Peak HP
11500 W
Disclosures
Capacity varies with grain, size, quality & paper weight and sufficient power supply. ** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
