HSM SP 5080 0.41" x 1.57" - 3" 3x400V Shredder Baler
Basic Specs of the HSM SP 5080 Shredder Baler
- Shred Size: 0.41" x 1.57" - 3"
- Throat Width: 19.7"
- Capacity: Up to 450 sheets *
- Speed: 8.27" per second
- Power: 400V/50Hz/11500W
- Pressing Power:80kN
- Shipping Wt: 2976 lbs
- Dimensions: 71"H x 46"W x 94.5"D
- Baler Dimensions: 31.5"L x 22.5"W x 19"H
Features of the HSM SP 5080 Shredder Baler
- Material intake via large loading table and electric conveyor belt
- Multi-functional operating and display element for continuous and reverse operation
- Automatic reverse
- Modern PLC press control unit with multi-language display and menu navigation
- Automatic photoelectric control of the pressing process
- Integrated, automatic oiler for the cutting unit
- Material compressed directly in the waste bag (standard equipment: 5 plastic bags)
- Display to indicate operating status and "œbale ready"
- Integrated emergency-stop rail on the table
The HSM SP 5080 shredder/baler combination unit breaks down your documents, three-ring binders, and even cardboard into level 2 strips, which are pressed into perfect bales.
Video Demo of the HSM SP 5080 0.41" x 1.57" - 3" 3x400V Shredder Baler
Description of the HSM SP 5080 0.41" x 1.57" - 3" 3x400V Shredder Baler
The HSM 5080 offers the advantages of efficiency, durability, and user-friendly operation. The automatic control guarantees quick and easy handling. Each model features high quality, solid steel cutting rollers to tear through your toughest materials. Stack books, reams of paper, three-ring binders, even cardboard onto the loading table. But that's not all. The HSM 5080 is insensitive to smaller metal objects, as well as chip cards, CDs, disks, and similar materials. From there, the high performance electric conveyor pulls these items into the 19.7" feed opening. As the shredder breaks down your items, they are transformed into 0.4" strips. The advanced technology prevents your materials from passing the cutting unit without being destroyed. These level 2 security strips then fall directly into the baling press. For maximum efficiency, the shredding and pressing operations occur simultaneously.

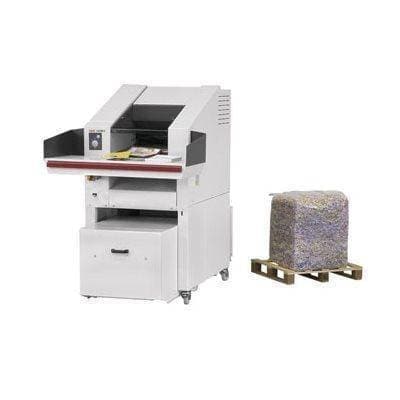

Thanks to the automatic photoelectric control, the HSM 5080 detects your shredded material and begins the pressing process. High pressing power compresses the shredded waste, forming 31 ½" L x 22 ½" W x 19 ¼" H bales perfect for recycling centers. These bales are emptied directly into convenient waste bags. The modern PLC press control unit offers multi-language display and user-friendly menu navigation. Once your bales are finished, the handy display indicates a " bale ready" icon. For easy maintenance, the HSM SP 5080 comes equipped with an integrated, automatic oiling system for the cutting unit. Quality and durable casters make the HSM 5080 much easier to relocate around your production space.
* Please note, capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
| Manufacturer Name | HSM |
|---|---|
| Throat Size/Feed Opening | 19 11/16" |
| Shred Speed | 8.27"/s |
| Shred Size | 0.41" |
| Bin Capacity | 1.57" - 3" |
| Security Level | P-2 |
| Cut Type | Cross Cut |
| Sheet Capacity | Up to 650 sheets |
| NSA Evaluated | N/A |
| Shreds Credit Cards? | Yes |
| Shreds Paper Clips? | Yes |
| Shreds Staples? | Yes |
| Peak HP | 11500 W |
| Disclosures | Capacity varies with grain, size, quality & paper weight and sufficient power supply. ** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used. |
| Continuous Motor | Yes |
| Model # | 5080 |
| Weight | 2976 lbs |
| Height | 71" |
| Width | 46" |
| Depth | 94.5" |
| Voltage | Power: 400V, 3 Ph |
