Formax Wire100 Manual Double-Loop Wire Closer
- SKU: BESWIRE100
- Mfr. Part No.: Wire100

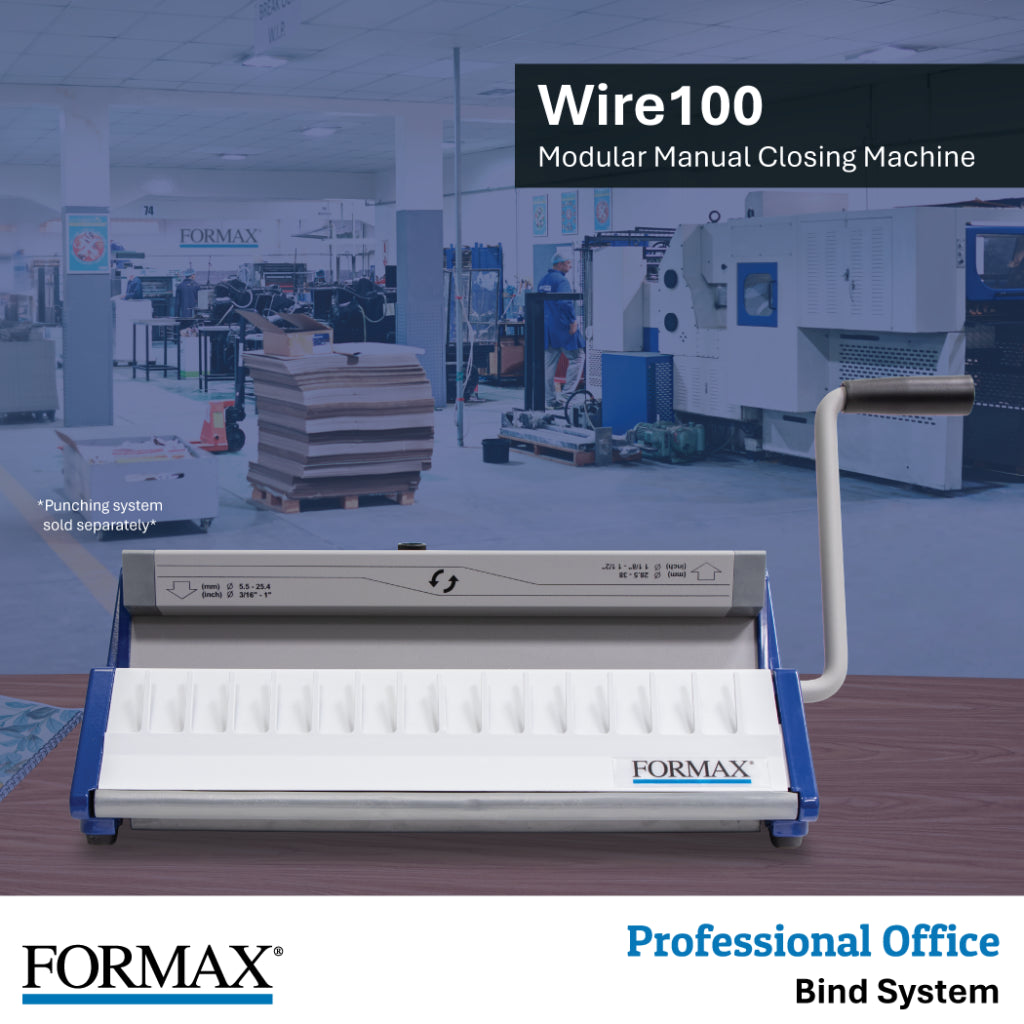

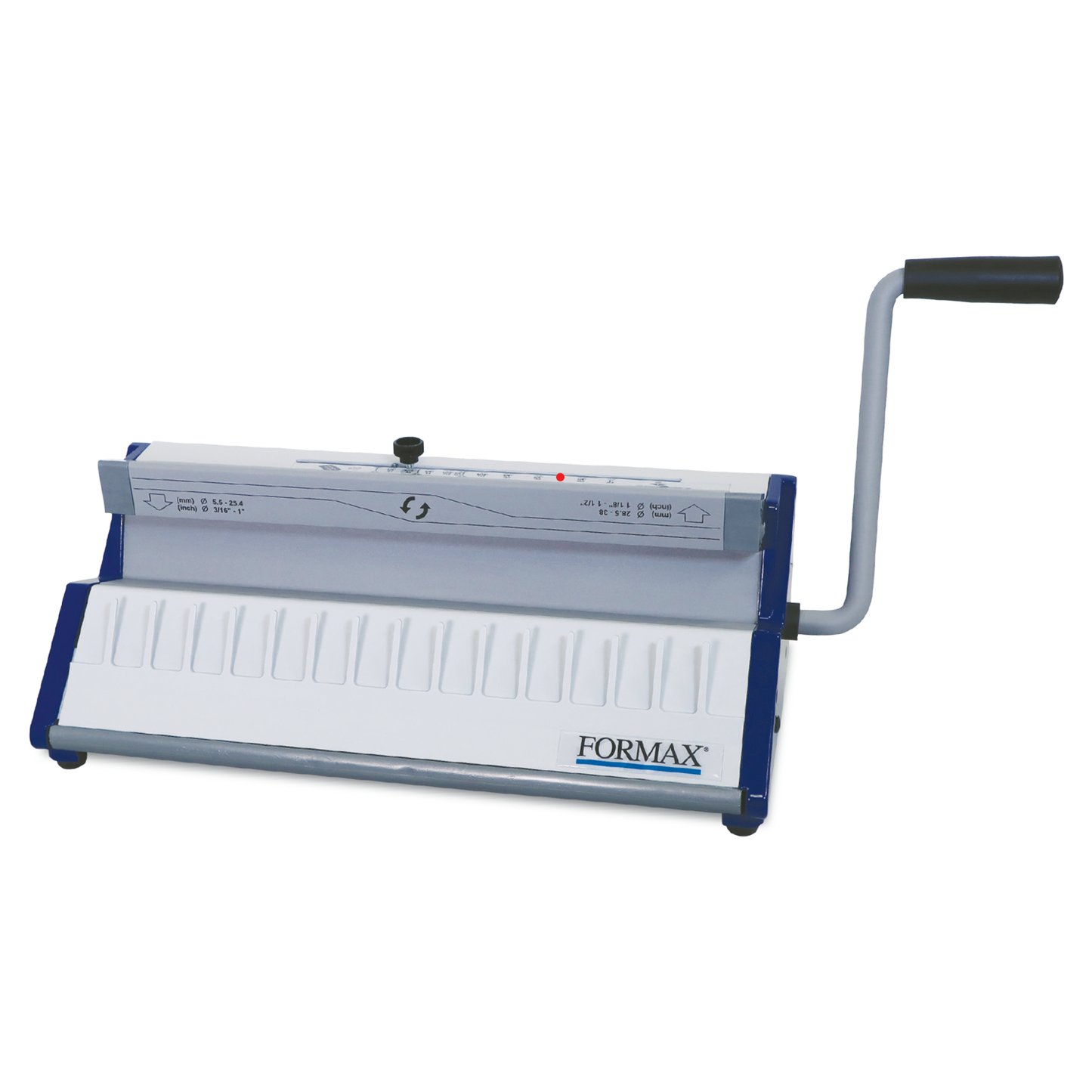

Description of the Formax Wire100 Manual Double-Loop Wire Closer
The Formax Wire100 Manual Double-Loop Wire Closer is the ideal compact solution for binding and finishing booklets. Its modular design allows for use on its own or with the Punch100 Electric Punch for a complete punch and bind system.
Setup is quick and easy with no tools required. Operators will appreciate the convenient integrated wire holding station. Each pitch style (2:1 and 3:1) produces professionally bound booklets, with the 2:1 pitch having an advantage in its versatility to accommodate a wide range of wire bindings from 1/4” to 1 1/2” in diameter for booklets up to 340 sheets.

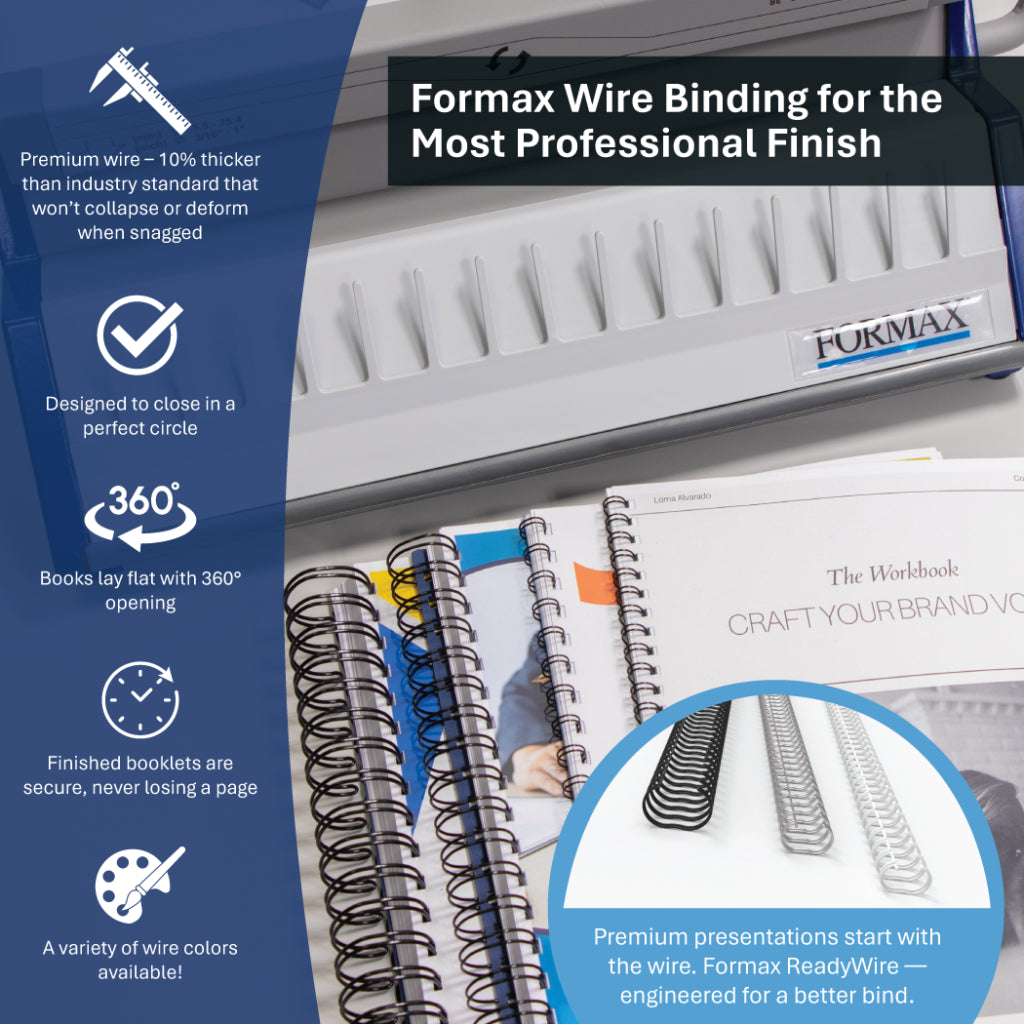

Wire-bound documents open a full 360 degrees, laying flat for easier reading, writing, scanning, and presentations, and the double-loop wire binding keeps pages secure for a polished appearance through years of use.

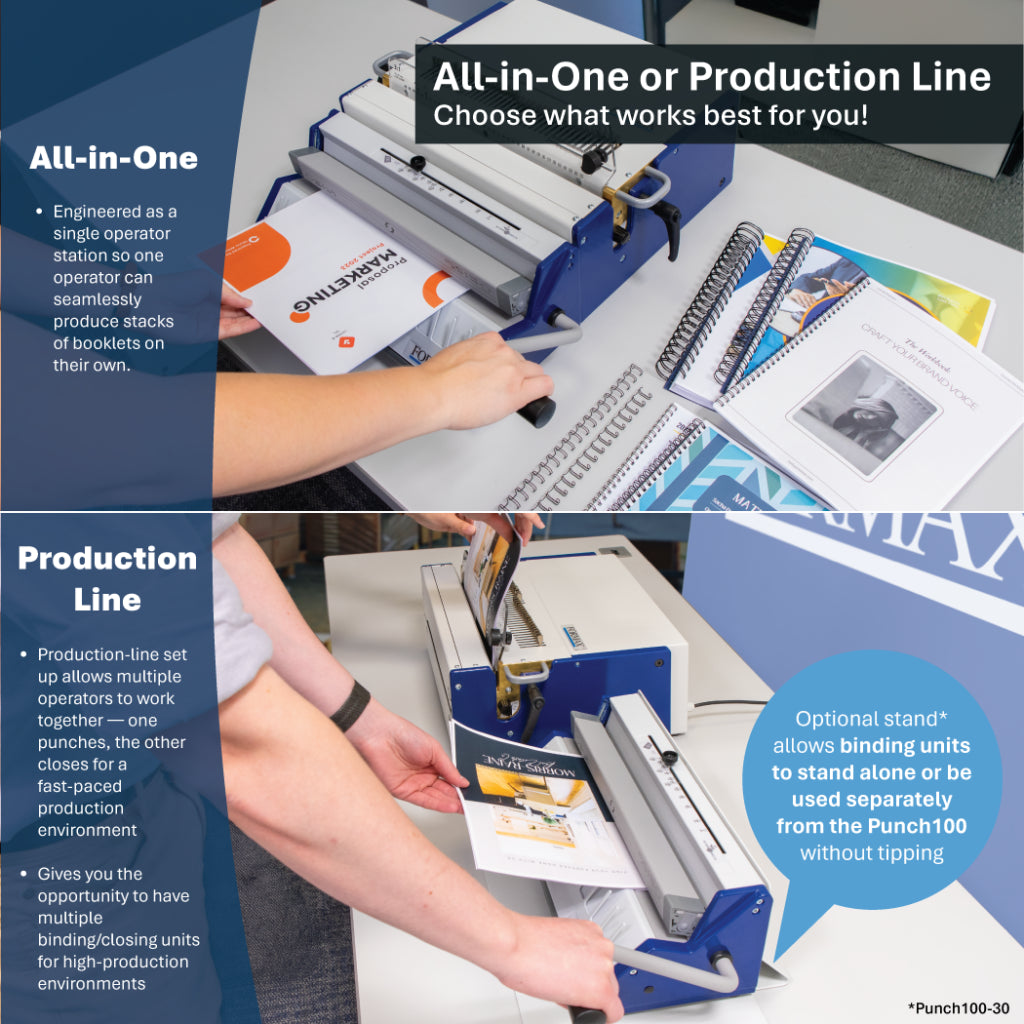

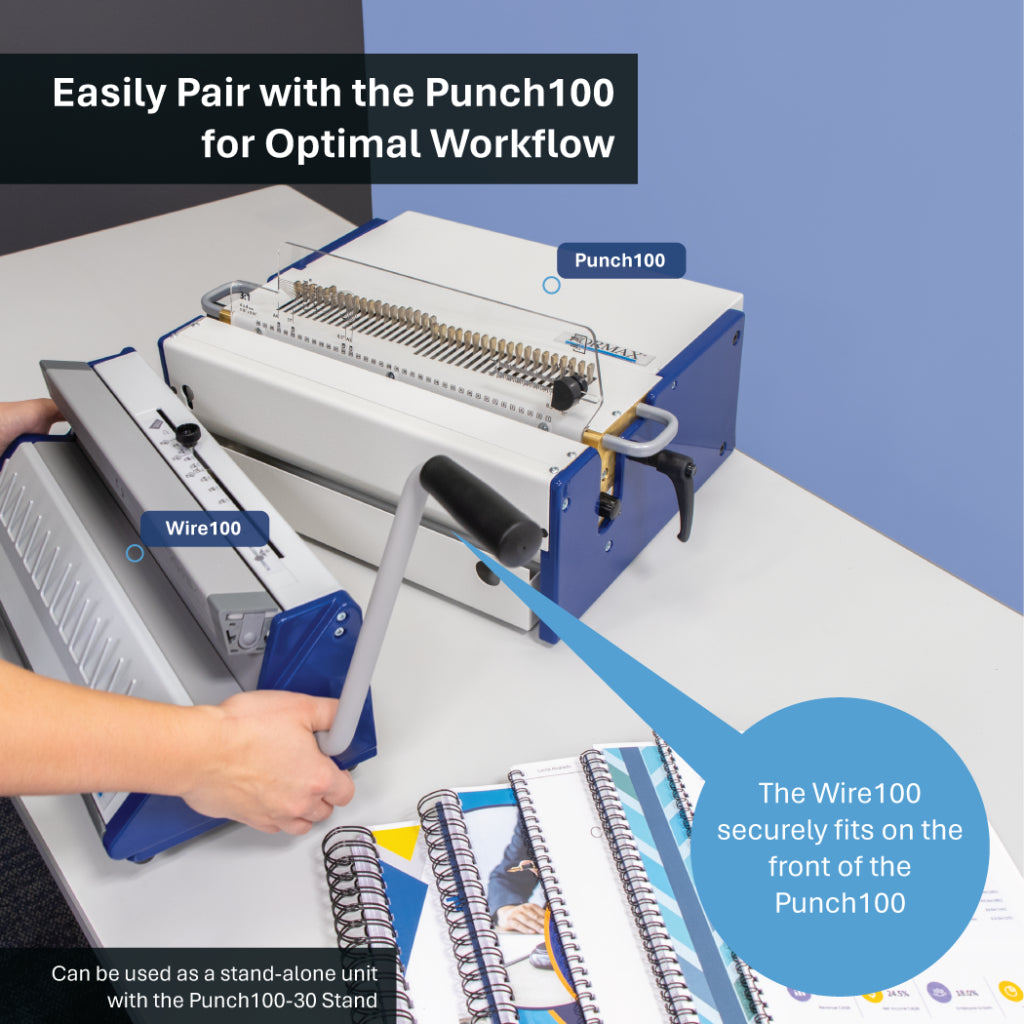

For seamless punching and binding operation, simply attach the Wire100 to the front of the Punch100 Electric Punch using the integrated mounting pins. The Punch100-30 support stand is required for stand-alone use.
Product Downloads
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| SKU | BESWIRE100 |
| Binding Type | Wire |
| Binding Operation | Manual, lever operated |
| Pitch | 2:1 or 3:1 |
| Binding Thickness | .03 - 1.3” (1-34mm) |
| Minimum Binding Width | .39” (10mm) |
| Maximum Binding Width | 14” (360mm) |
| Minimum Unbound Edge | 2.5” (65mm) |
| Maximum Unbound Edge | 23.6” (600mm) |
| Wire Binding Diameter | 1/4” - 1 1/2” |
| Speed - Books | Up to 250/hr |
| Speed - Calendars | Up to 200/hr |
| Dimensions | 22” L x 6” D x 12.6” H |
| Weight | 18.7 lbs. |
