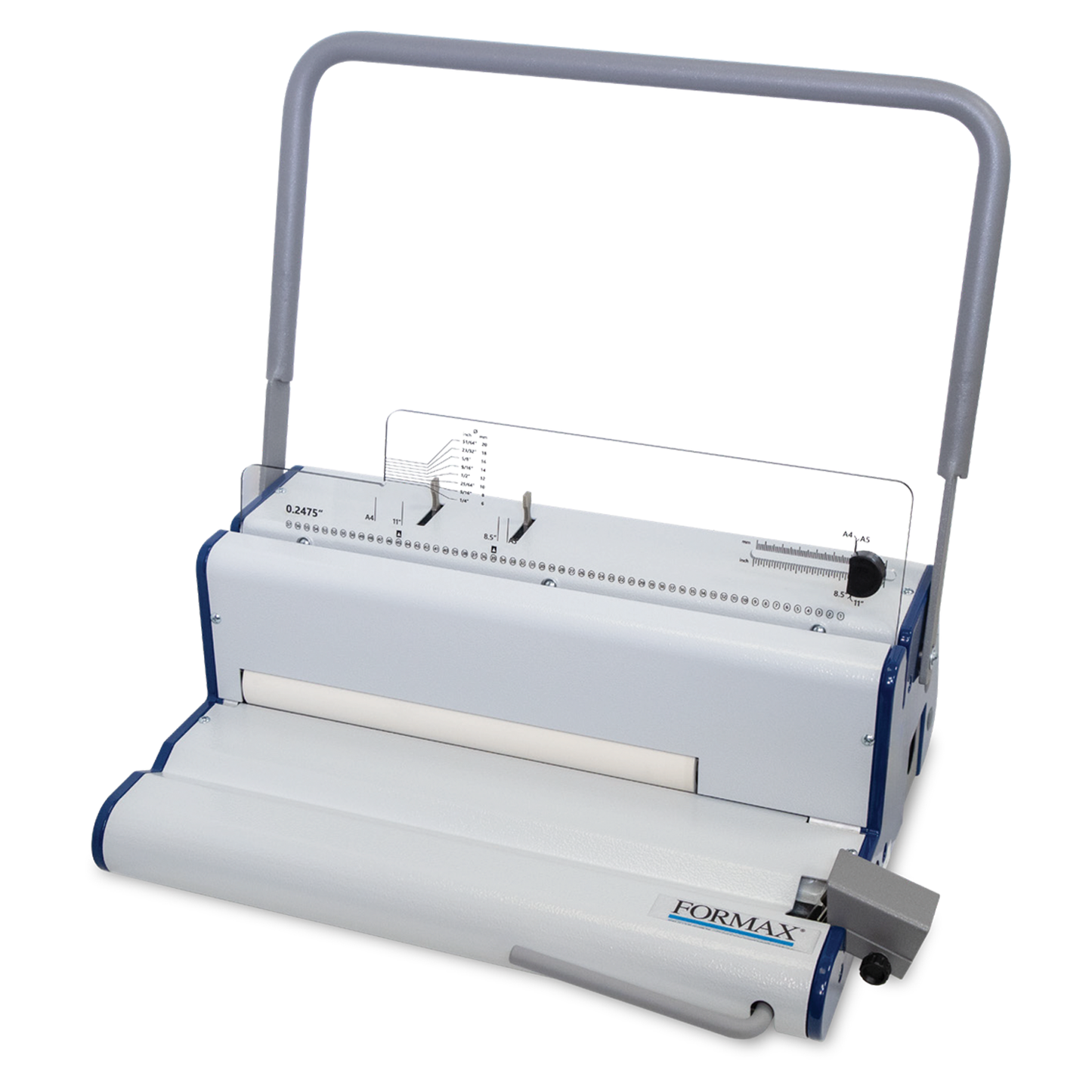

Formax ReadyCoilM Punch and Coil Inserter
- SKU: BESREADYCOILM
- Mfr. Part No.: CoilM
Description of the Formax ReadyCoilM Punch and Coil Inserter
The Formax ReadyCoilM Punch and Coil Inserter combines manual and electric operation for easy, efficient use in offices with low to medium volume.

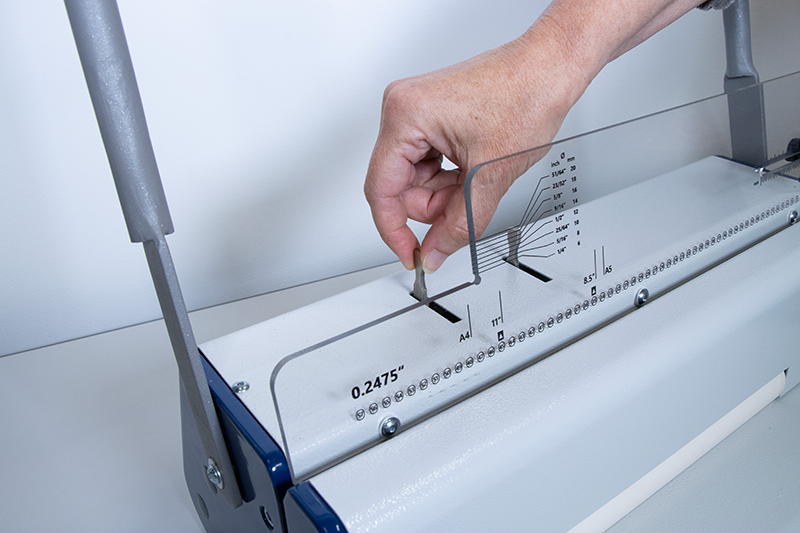

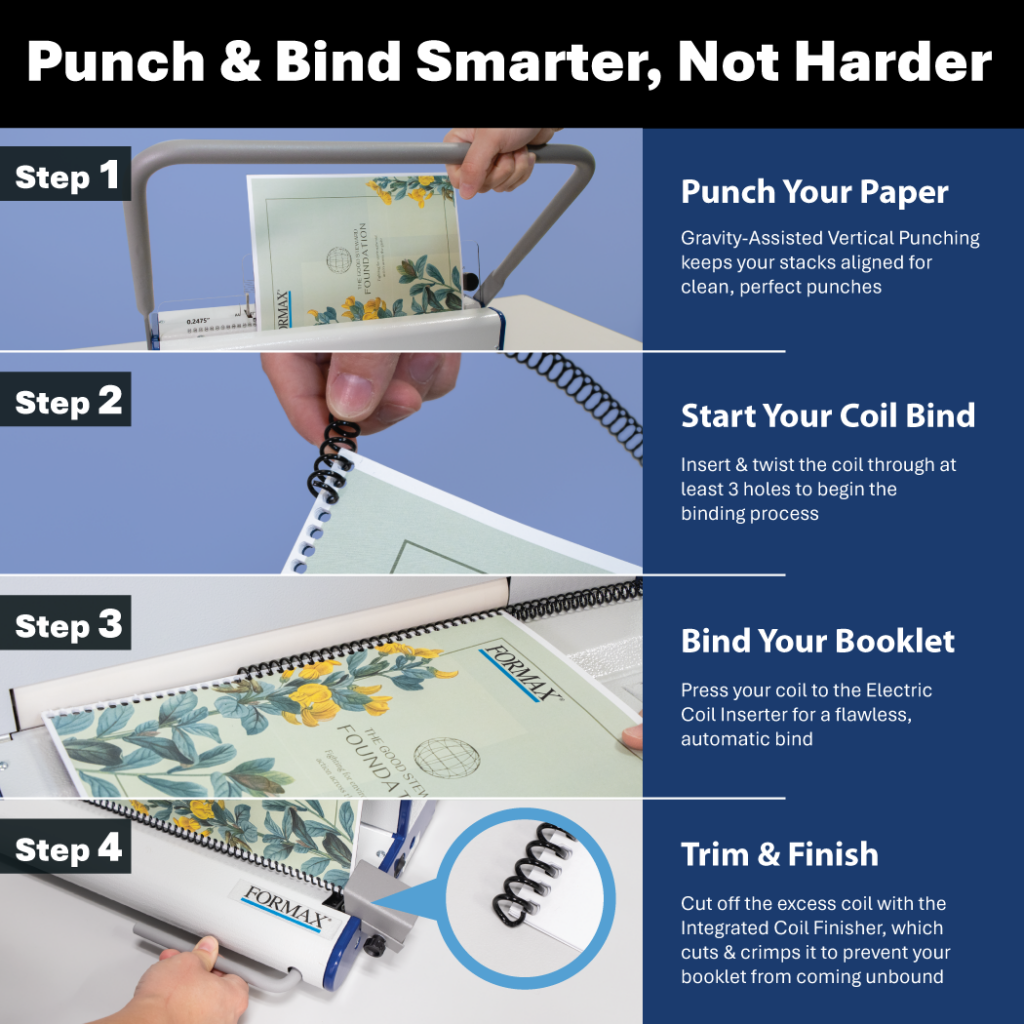

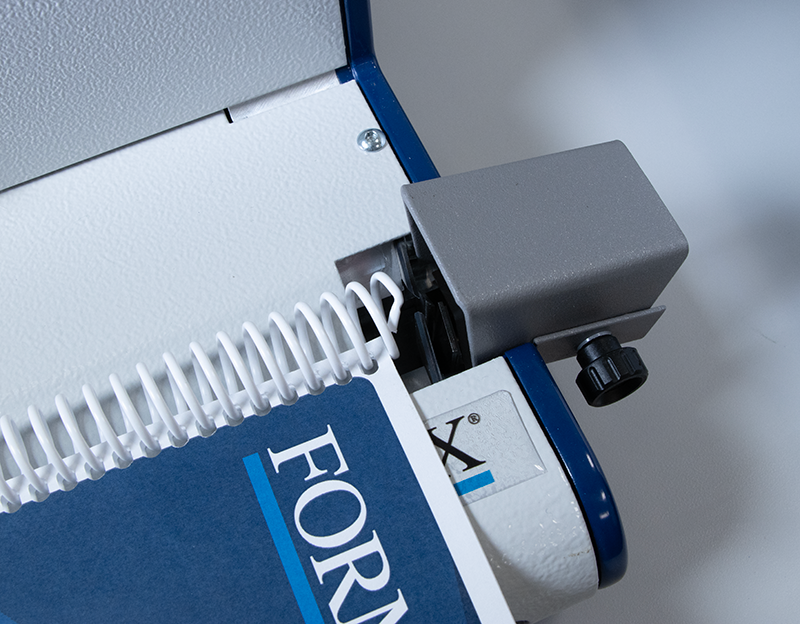

The precision vertical punching system utilizes gravity to keep every sheet in place, for consistent hole placement even on thicker document sets. Easy-access disengageable punch pins offer flexibility for a variety of paper sizes, and are specially hardened for longevity. The electric coil inserter automatically threads PVC spiral coil easily and effectively, while the integrated coil cutting and crimping tool gives projects a professional finish with a 45-degree coil crimp.

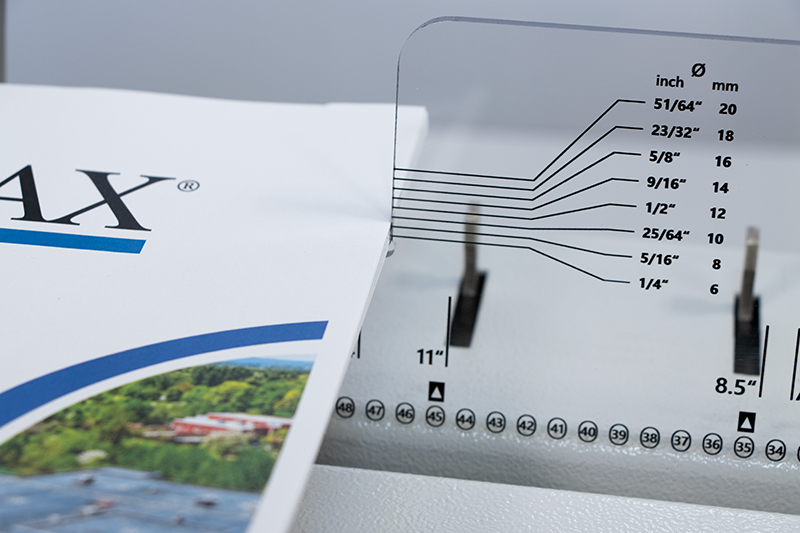

User-friendly features include measuring guides for documents and coil diameter, easy-empty sliding waste tray, and automatic roller stop for operator safety. Compact design and thoughtful features make the ReadyCoilM an economical solution for booklet finishing.
Product Downloads
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| SKU | BESREADYCOILM |
| Binding Type | Coil |
| Punching Operation | Manual |
| Punching Speed | Up to 8,000 sheets/hr |
| Punching Width | .39” - 14” (10 - 360mm) |
| Unpunched Length | 1.96” - 10.6” (50 - 270mm) |
| Max Punching Thickness | Up to 0.078” (2mm) |
| Punch Dies Available | Oval 5.0 x 4.0mm |
| Pitch | .2475” (6mm) |
| Binding Operation | Electric insert, manual crimp & cut |
| Binding Speed | Up to 50 booklets/hr |
| Binding Thickness | .04” - .62” (1 - 16mm) |
| Binding Width | .39” - 14” (10 - 360mm) |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | No |
| Power | 115V, 60Hz, 90W |
| Dimensions | 18.5” L x 14” D x 18.5” H |
| Weight | 42 lbs. |
