Formax FD 95 Rotary Perforator / Creaser

Formax FD 95 Rotary Perforator / Creaser

Formax FD 95 Rotary Perforator / Creaser Formax

Basic Specs for the Formax FD 95 Rotary Perforator / Creaser

  • Specially designed for finishing digitally printed sheets
  • Crease / perforate up to 7,080 pieces per hour
  • Will handle sheets up to 13.8" x 19"
  • Accepts paper weights from 55 - 180gsm
  • Perfect for  tickets, billing statements, coupons, check stock, postcards





Regular price
$2,465.93
Sale price
$2,144.06
Unit price
per


SKU: BESFD95 ISBN: 096224656505
Request A Quote

Secured & Safe Checkout :

trust badge

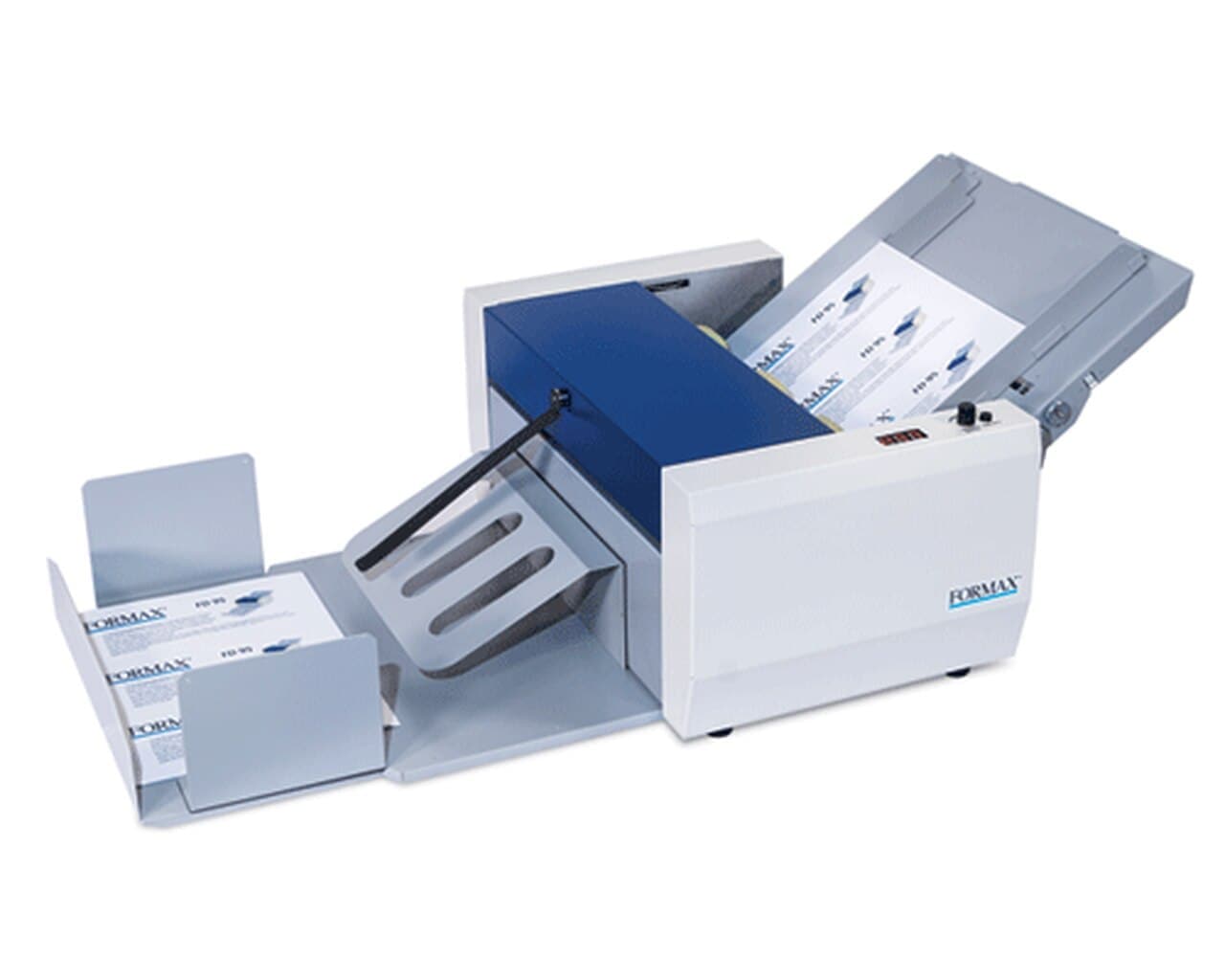

The FD 95 Rotary Perforator/Creaser is specially designed to finish printed sheets, up to 13.8” x 19”. Its three-tire friction feeding system reliably feeds up to 7,080 sheets per hour, and can create up to 5 parallel perforations and/or creases in a single pass. Perforating allows for easy separation of multiple printouts, tear-offs, postcards or tickets on a single sheet, while creasing allows for easy folding and reduces unsightly cracking in digital printouts.

Sheets are fed and perforated and/or creased automatically then stacked neatly on the telescoping outfeed table. Users can set the variable speed control based on paper weight, while the resettable counter keeps an accurate tally of processed sheets. The FD 95 can easily accommodate paper weights from 55 - 180gsm.

Standard set-up includes two perforating wheels, one creasing wheel and paper guides. Options include additional perforating sets, microperforating sets (17 tpi), creasing sets and guide strips to accommodate 55 - 60gsm paper.

The FD 95 is ideal for small print shops, on-demand and in-plant finishing applications including postcards, invitations, tear-offs, brochures, billing statements and more.

"

Speed: Variable, up to 7,080 per hour

Paper size: Minimum: 5” W x 2.5” L (150mm x 64mm)

Maximum: up to 13.8” W x 19” L (350 x 483mm)

Recommended paper weight: 55 - 180gsm

(Note: 55-60gsm paper can be processed with optional guide strips)

Optimal paper weight for creasing is 150gsm

Parallel perforations/creases per sheet: Up to 5 in a single pass

Perforating wheel capacity: Up to 5 (includes 2 perforating wheels and 1 creasing wheel)

Feed table capacity (max. stack height): 1.18” (30mm)

Dimensions: Closed: 19.5” L x 14” W x 15” H (495 x 356 x 381mm)

Fully extended: 43” L x 14” W x 15” H (1092 x 356 x 381mm)

Weight: 41 lbs. (18.5kg)

Power: 110V, 60Hz (30W)

"
